Sensor -Front Left: Installation

    NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

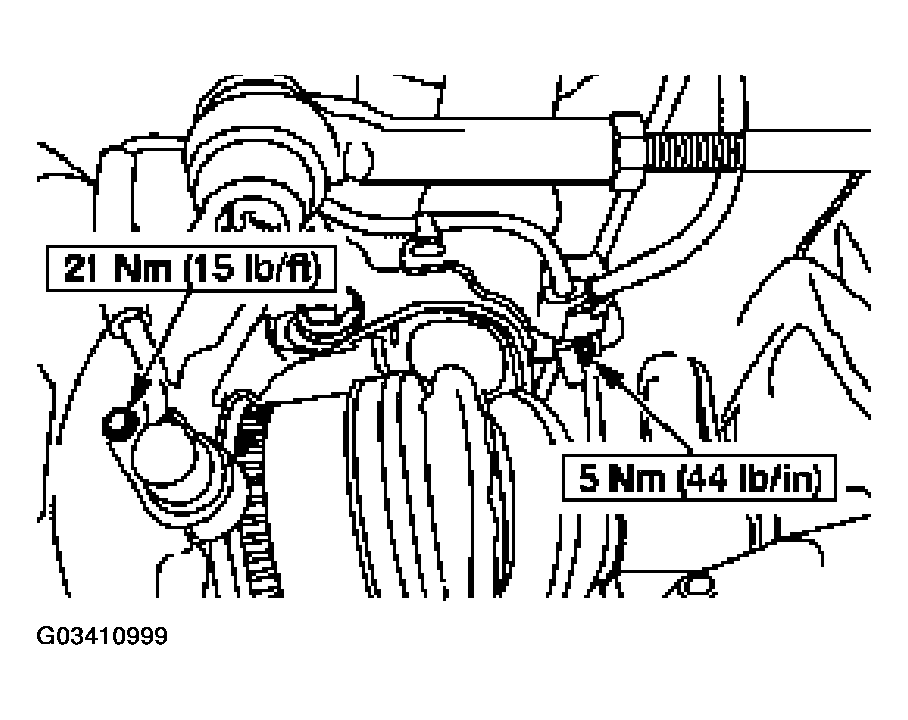

    Fig 1: Sensor -Front Left Installation Procedure (1 Of 2)
    G03410999Courtesy of FORD MOTOR CO.

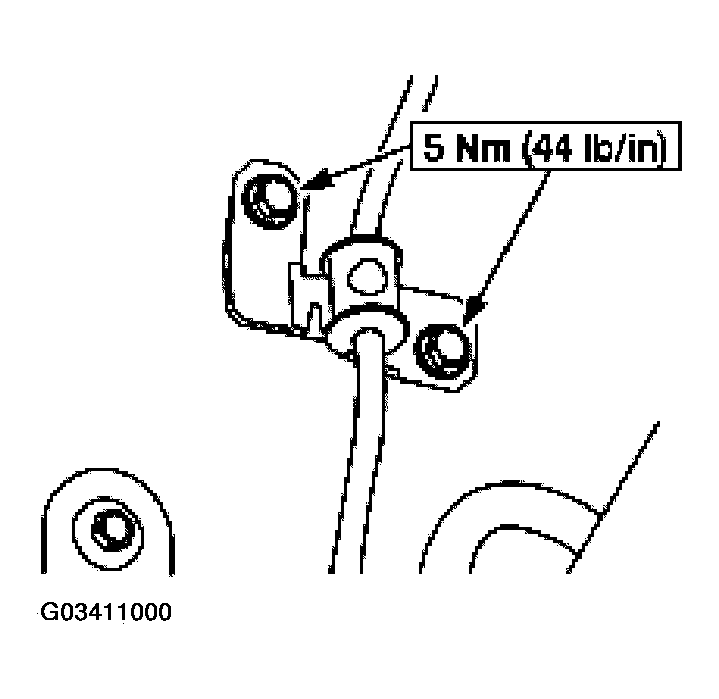

    Fig 2: Sensor -Front Left Installation Procedure (2 Of 2)
    G03411000Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
