Sensor -Front Right: Installation

    NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

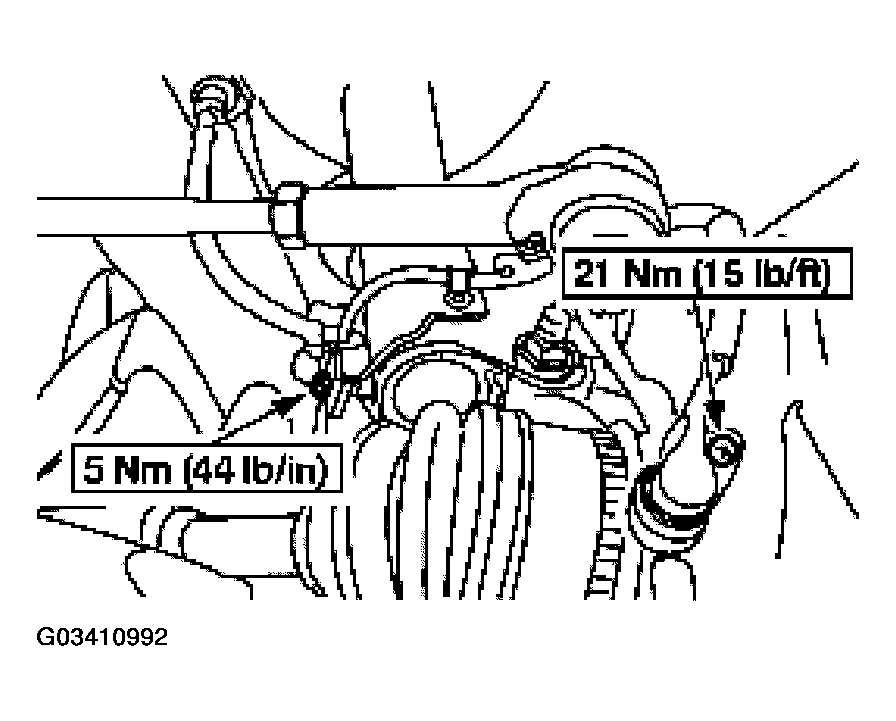

    Fig 1: Sensor -Front Right Installation Procedure (1 Of 3)
    G03410992Courtesy of FORD MOTOR CO.

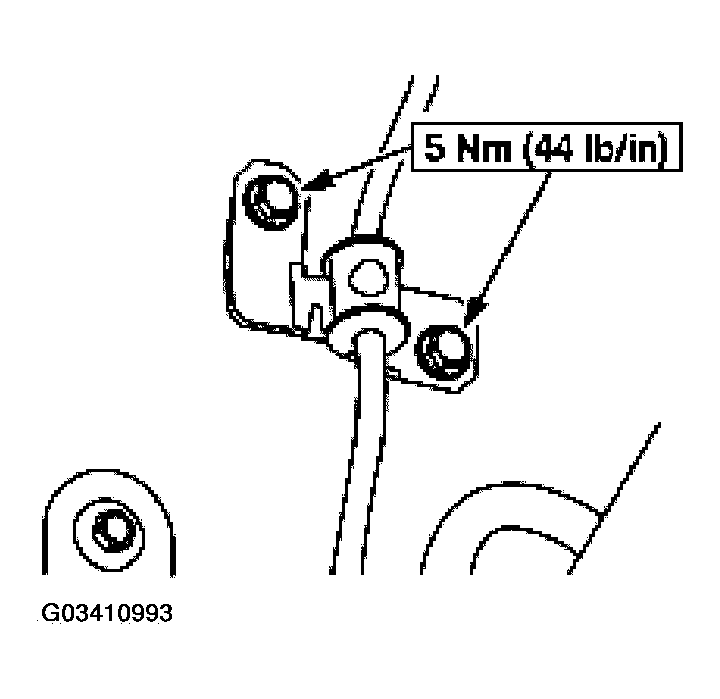

    Fig 2: Sensor -Front Right Installation Procedure (2 Of 3)
    G03410993Courtesy of FORD MOTOR CO.

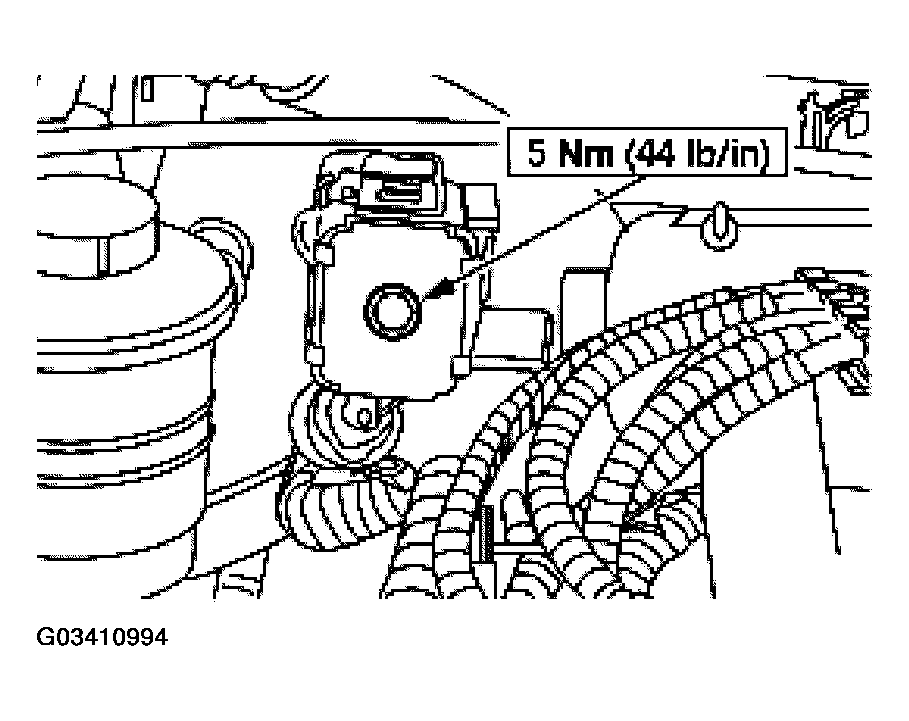

    Fig 3: Sensor -Front Right Installation Procedure (3 Of 3)
    G03410994Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
