Sensor Indicator -Front: Removal

  1. Remove the front halfshaft. For additional information, refer to WHEELS & TIRES .
  2. Remove the anti-lock brake sensor indicator ring dust shield from the halfshaft.

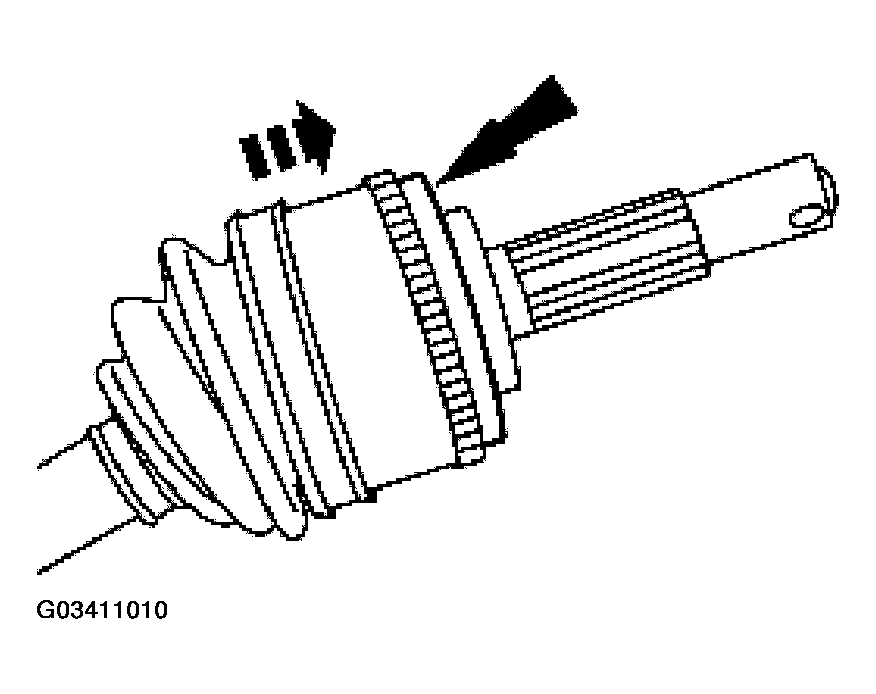

    Fig 1: Removing Anti-Lock Brake Sensor Indicator Ring Dust Shield From Halfshaft
    G03411010Courtesy of FORD MOTOR CO.
  3. Remove the anti-lock brake sensor indicator ring from the halfshaft.

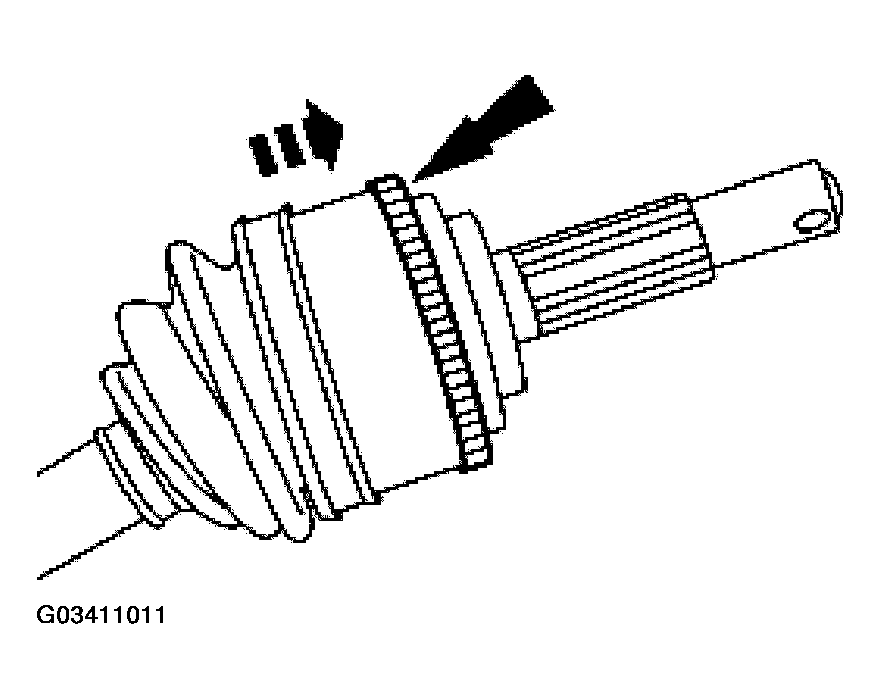

    Fig 2: Removing Anti-Lock Brake Sensor Indicator Ring From Halfshaft
    G03411011Courtesy of FORD MOTOR CO.
