Steering System Components

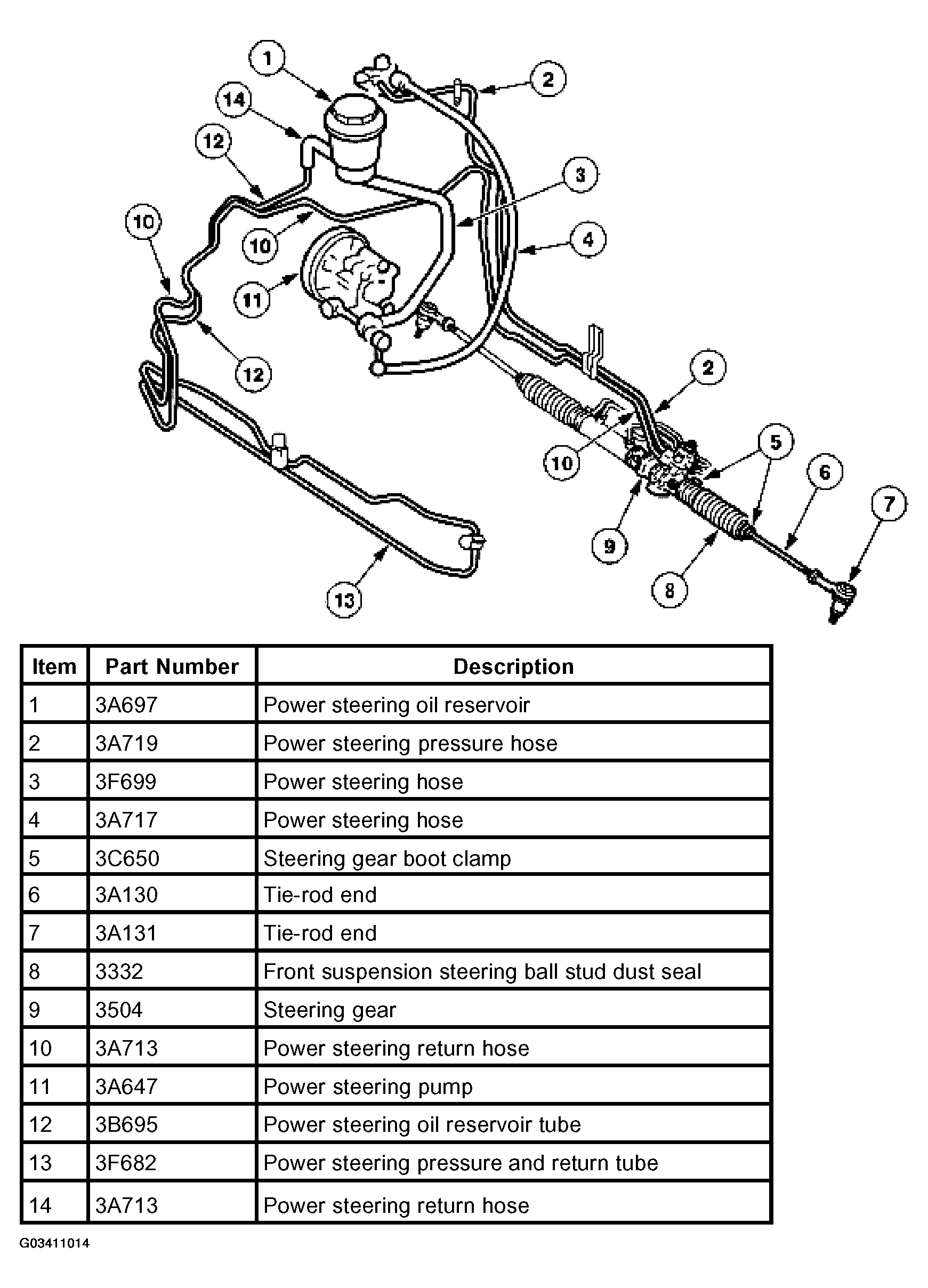

Fig 1: Identifying Steering System Components

Courtesy of FORD MOTOR CO.

For additional information on the power steering oil reservoir (3A697), refer to POWER STEERING .

For additional information on the steering wheel and column assembly, refer to STEERING COLUMN .

For additional information on the power steering lines, refer to POWER STEERING .

For additional information on the power steering fluid cooler (3D746), refer to POWER STEERING .

For additional information on the power steering pump (3A674), refer to POWER STEERING .

For additional information on the steering gear (3504), refer to POWER STEERING .
