Cable Adjustment-Shift Control
- Place the gearshift lever in PARK (P) position.
- Raise and support the vehicle.
- Remove the splash shield.

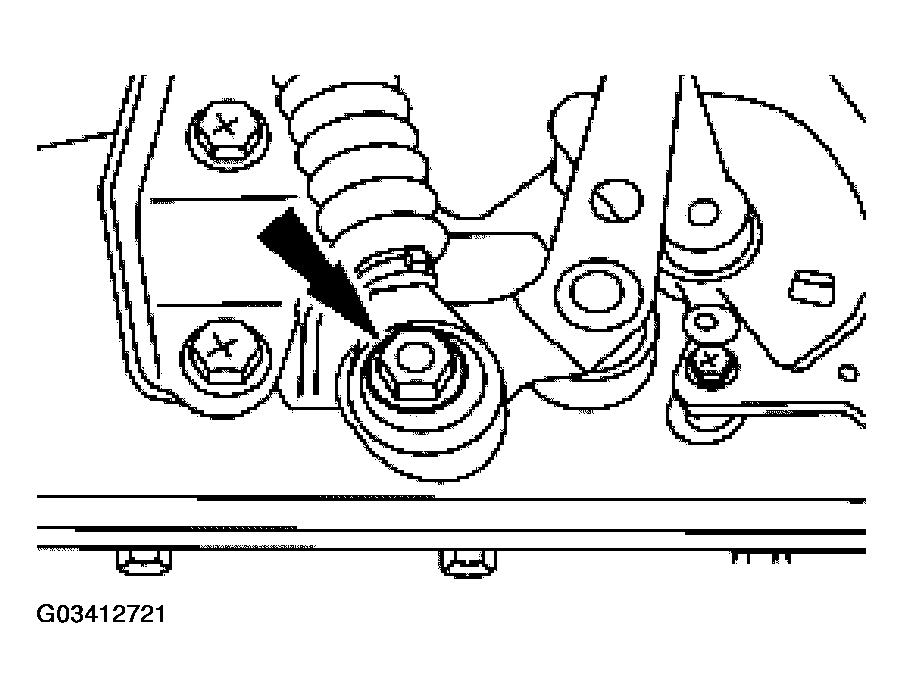

- Loosen the shift cable nut.
Courtesy of FORD MOTOR CO.

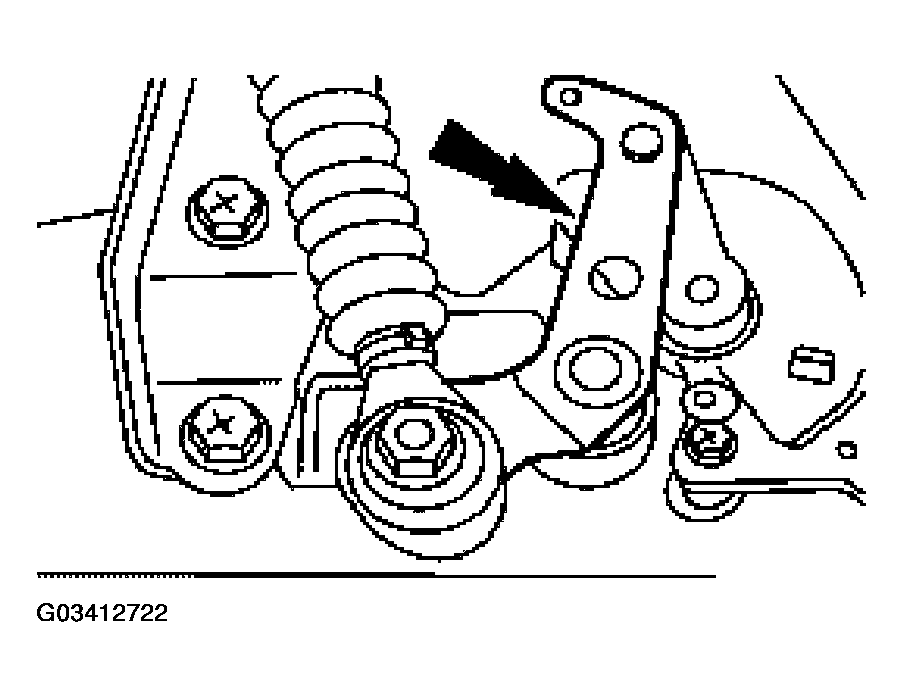

- Position the shift linkage in PARK (P) position.
Courtesy of FORD MOTOR CO.

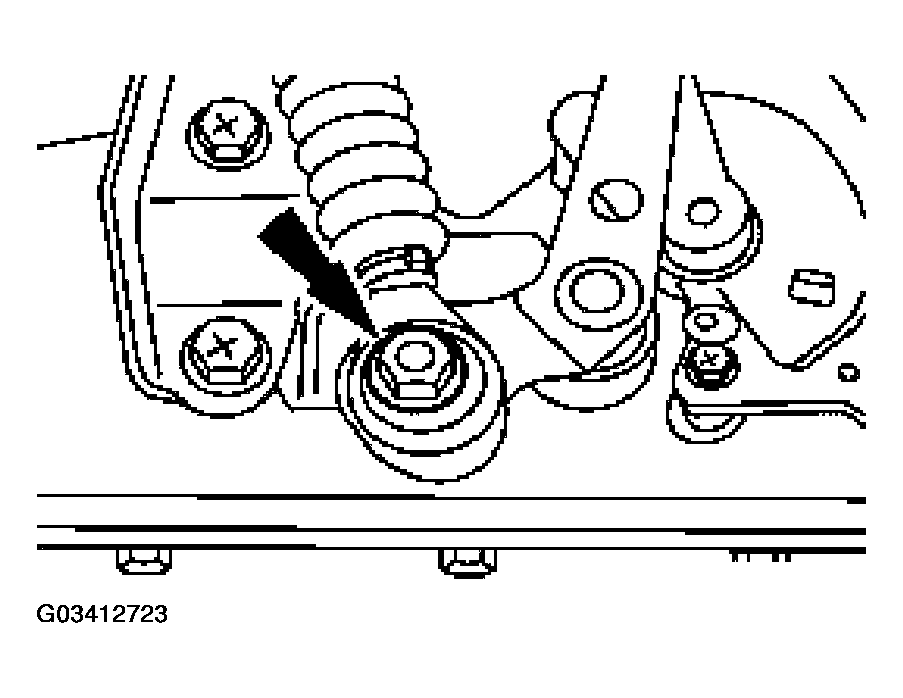

- Tighten the shift cable nut.
Courtesy of FORD MOTOR CO.
- Move the gearshift lever through the entire shifting range.
- Verify that the engine will crank with the gearshift lever in PARK (P) or NEUTRAL (N) position.
- Adjust the transmission range (TR) switch as necessary, refer to
AUTOMATIC TRANSAXLE/TRANSMISSION
.
