Cable Adjustment-Transmission Control Selector Indicator

  1. Apply the parking brake and block the wheels.
  2. Remove the lower steering column shroud.
    • Remove the steering column shroud screws.

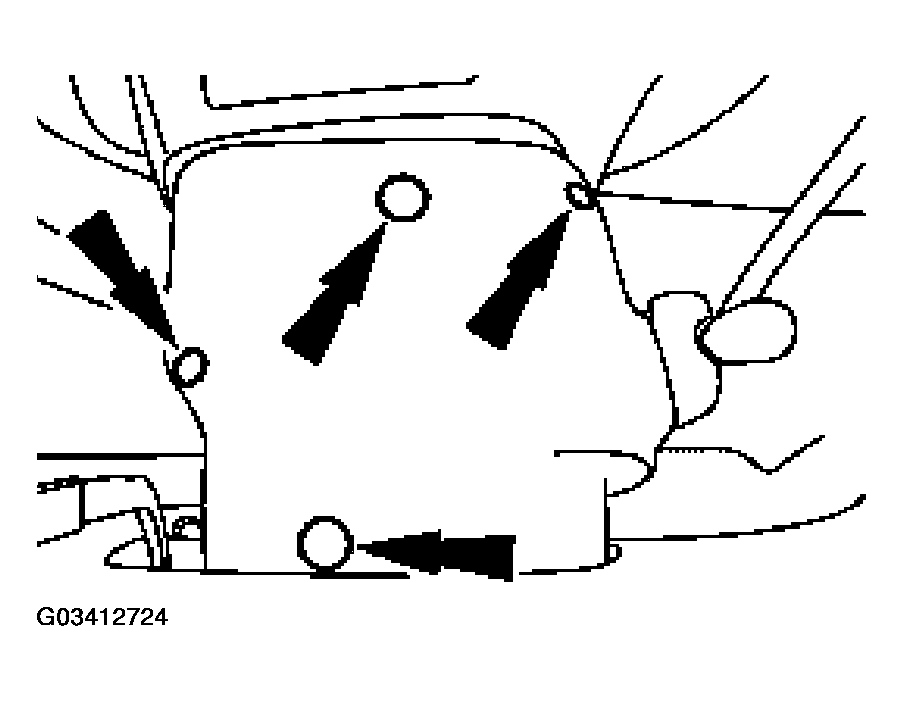

      Fig 1: Removing Lower Steering Column Shroud
      G03412724Courtesy of FORD MOTOR CO.
  3. Place the shift gear in NEUTRAL (N) position.
  4. Rotate the transmission control until the transmission range indicator is centered on N.

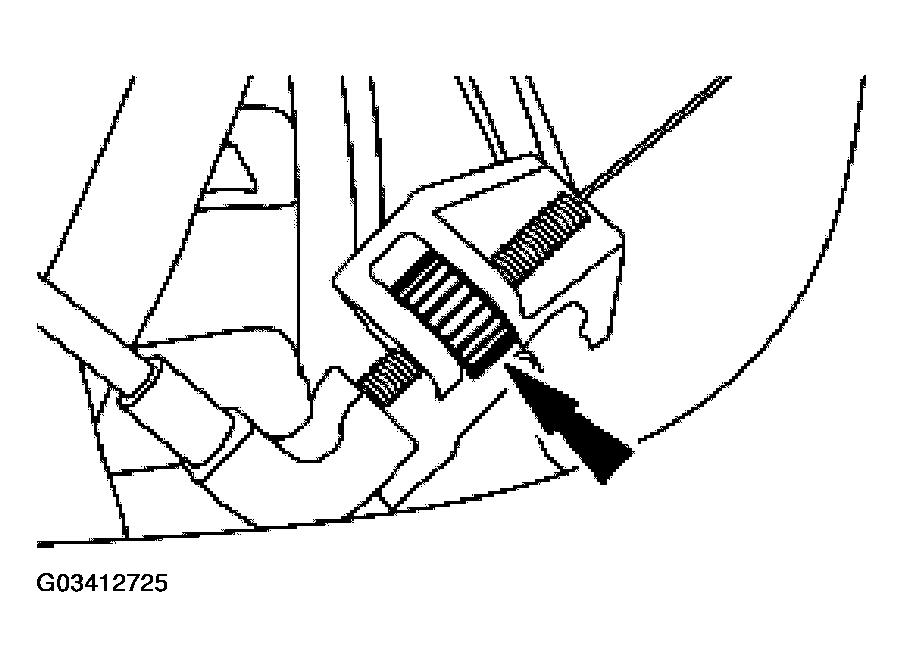

    Fig 2: Rotating Transmission Control
    G03412725Courtesy of FORD MOTOR CO.
  5. Verify the gearshift lever alignment in each position.
  6. Install the lower steering column shroud.
  7. Release the parking brake and unblock the wheels.
