Removal And Installation: Cable: Removal

Block the wheels.
Disconnect the cable from the transmission selector lever and arm.

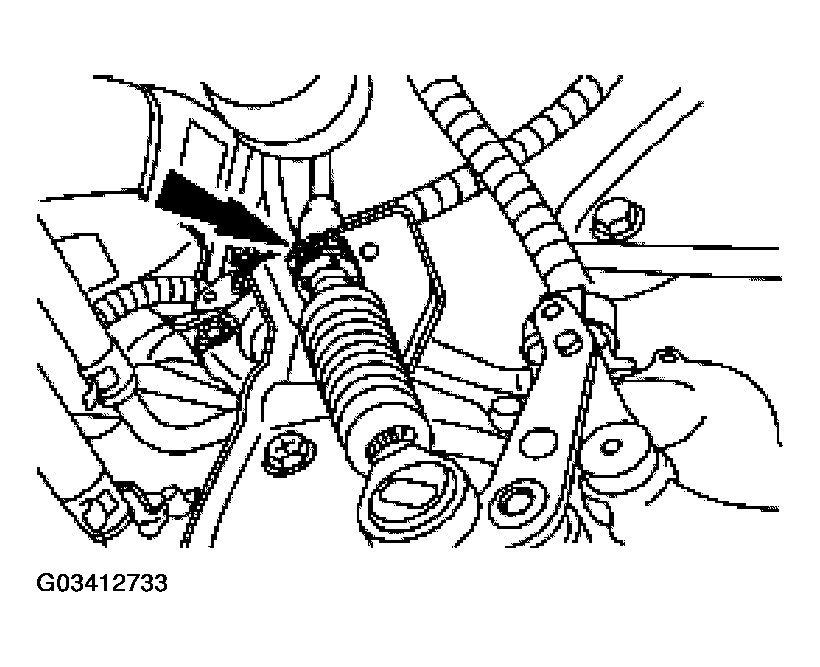

Fig 1: Disconnecting Cable From Transmission Selector Lever And Arm
Courtesy of FORD MOTOR CO.
Disconnect the lock tabs from the cable to the under dash bracket.

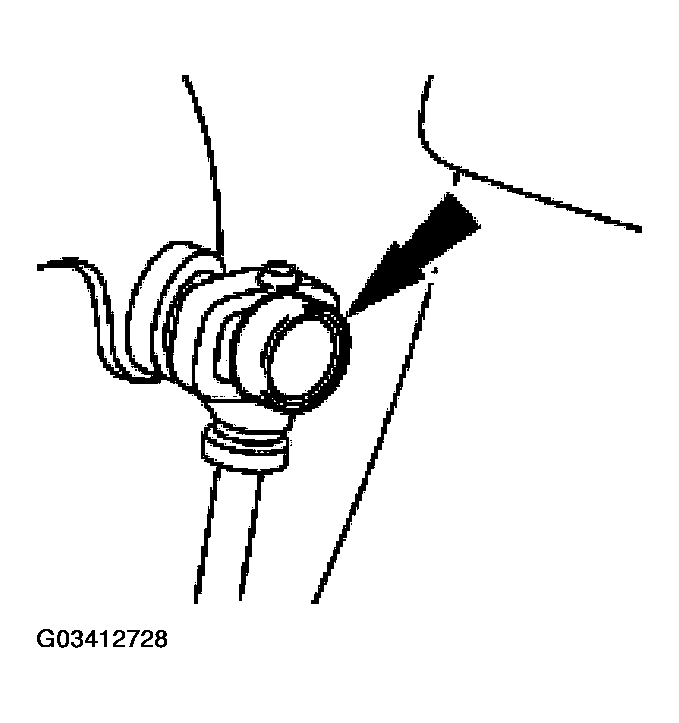

Fig 2: Disconnecting Lock Tabs From Cable To Under Dash Bracket
Courtesy of FORD MOTOR CO.
Position aside the parking brake pedal assembly
- Remove the two nuts and two bolts.

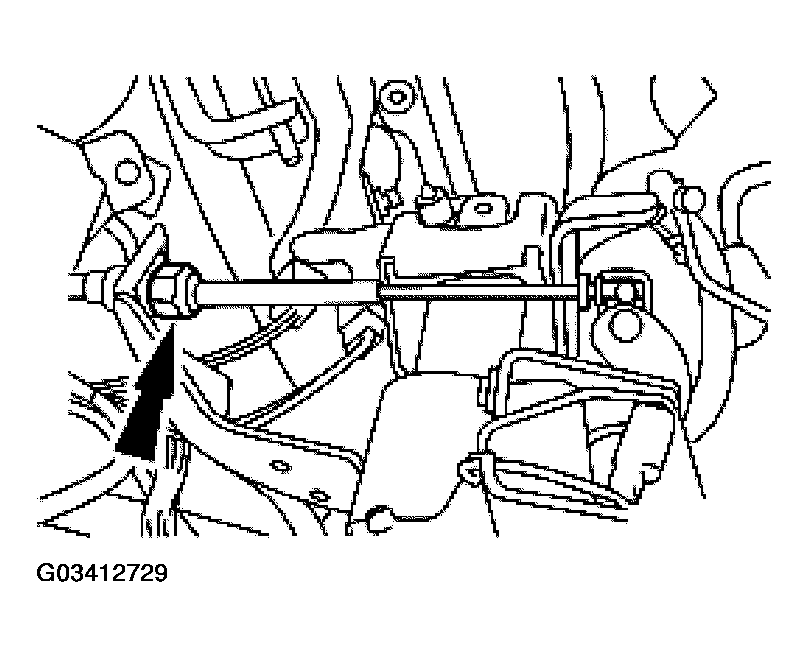

  Fig 3: Removing Nuts And Bolts
  Courtesy of FORD MOTOR CO.
Remove the shift cable to bulkhead bracket nuts.

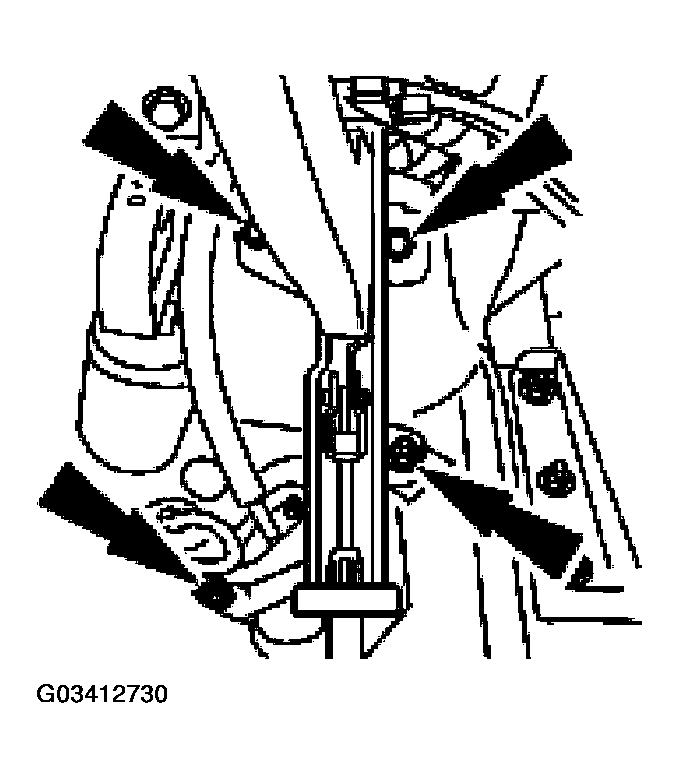

Fig 4: Removing Shift Cable To Bulkhead Bracket Nuts
Courtesy of FORD MOTOR CO.
Raise and support the vehicle.
Remove the splash shield.
Disconnect the shift cable from the manual shift linkage rod.
- Remove the nut.

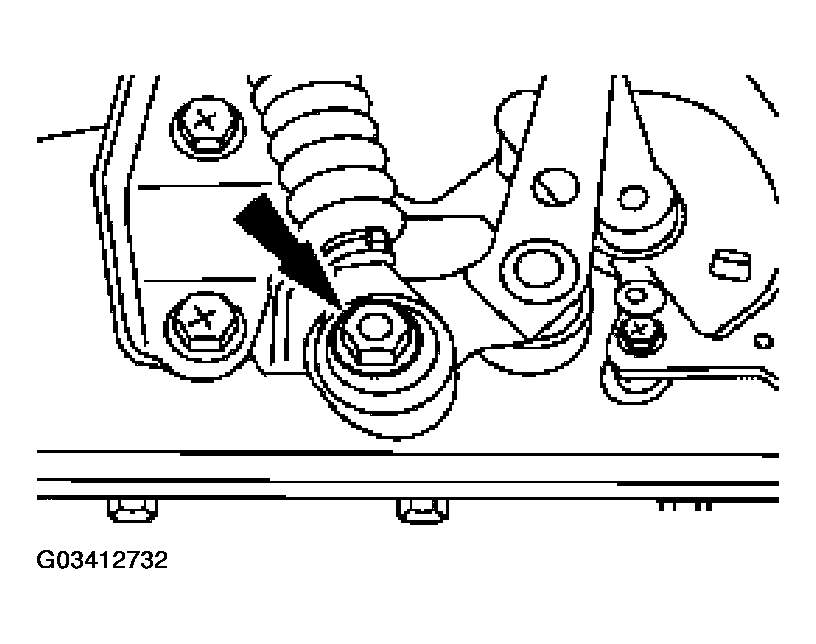

  Fig 5: Removing Nut
  Courtesy of FORD MOTOR CO.
Disengage the locking pin and remove the cable from the bracket.

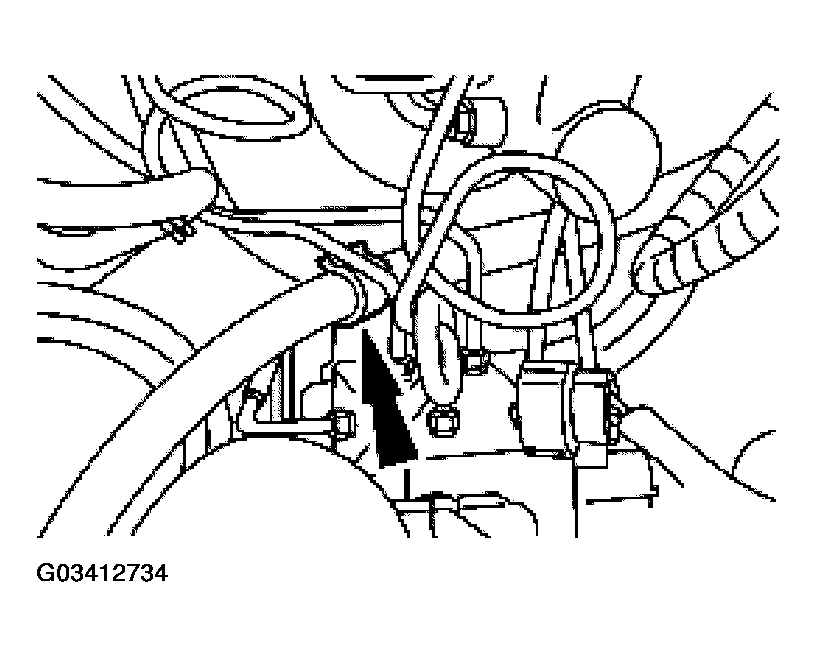

Fig 6: Disengaging Locking Pin And Removing Cable From Bracket
Courtesy of FORD MOTOR CO.
Disconnect the shift cable from the cable bracket.
- Remove the cable.

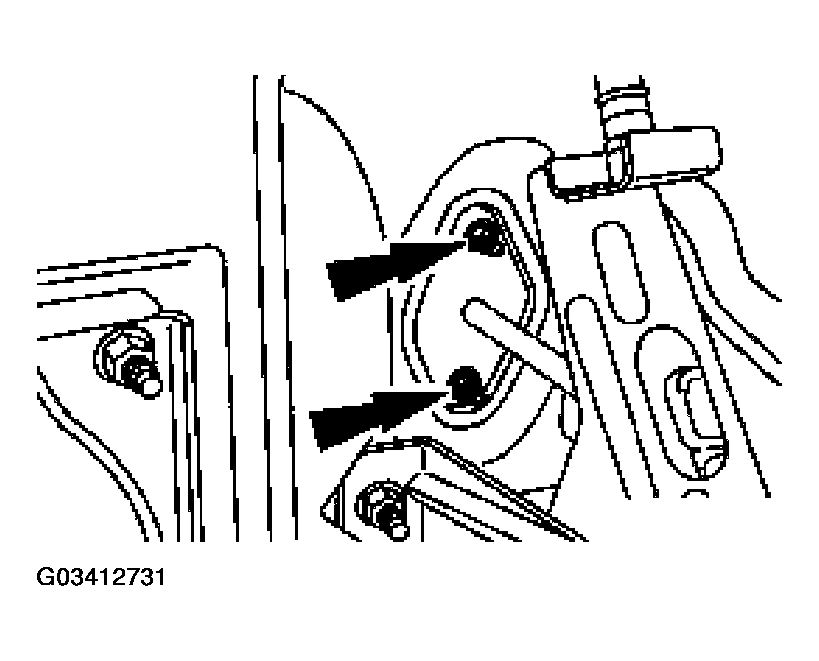

  Fig 7: Removing Cable
  Courtesy of FORD MOTOR CO.
