Diagnostic Flow Chart

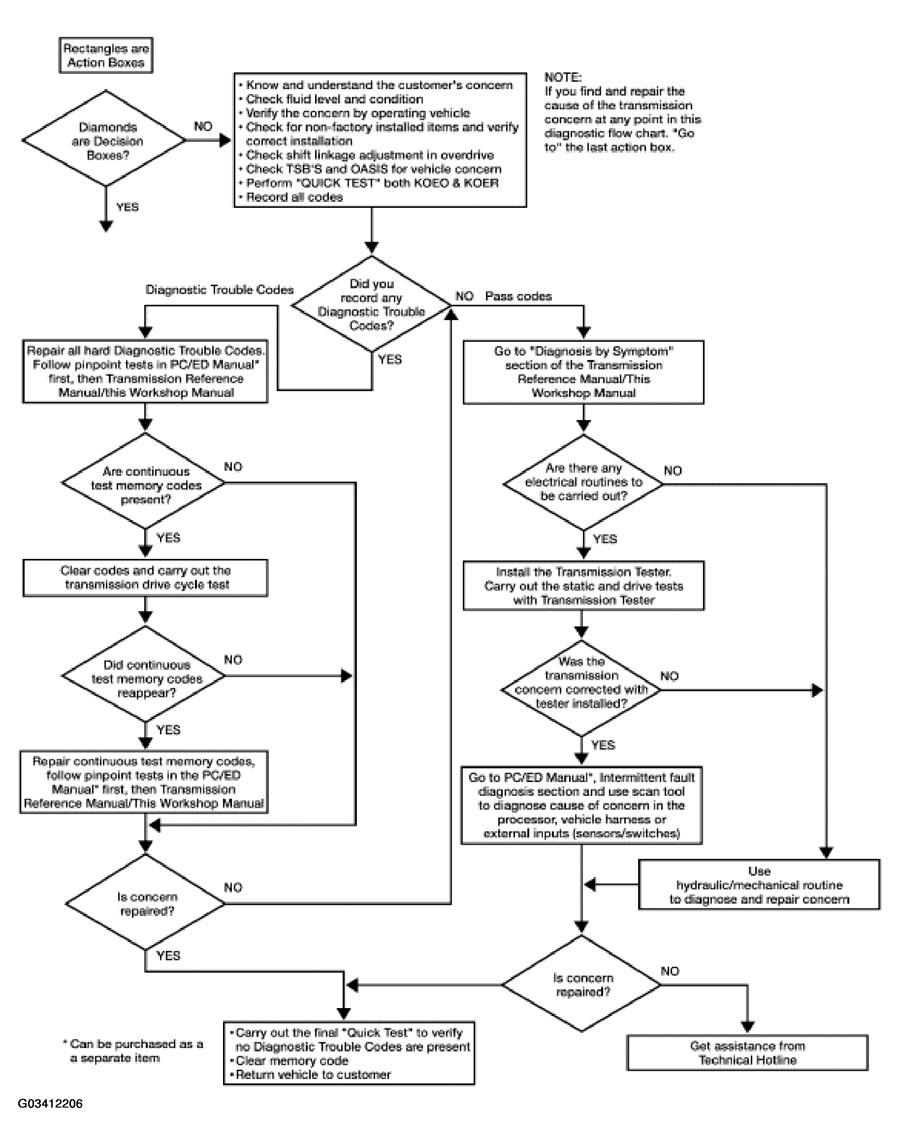

Fig 1: Diagnostic Flow Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
