2-4 Servo: Assembly

Install the fourth apply piston D-ring.
- Coat the D-ring with Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON®.

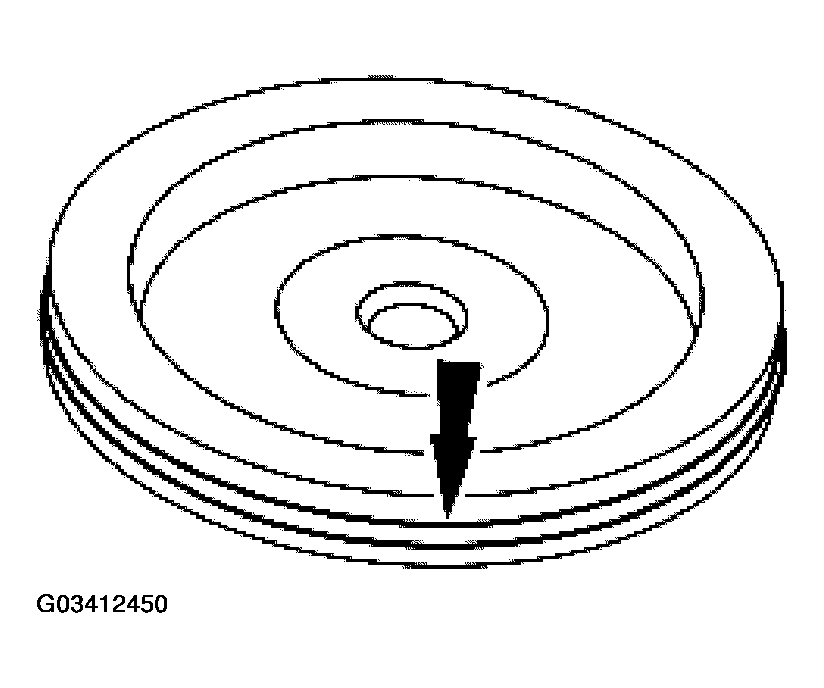

  Fig 1: Installing Fourth Apply Piston D-Ring
  Courtesy of FORD MOTOR CO.
Install the fourth apply piston retainer O-rings.
- Coat the O-rings with Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON®.

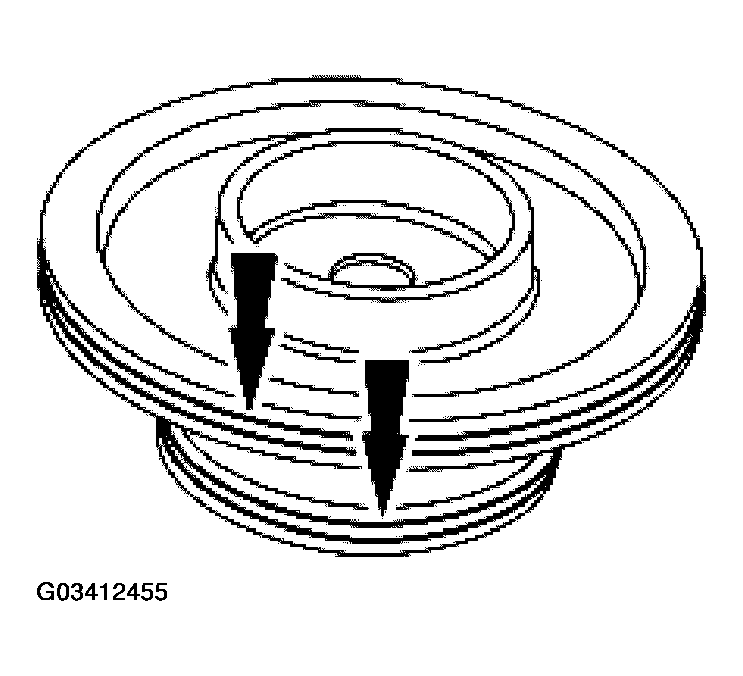

  Fig 2: Installing Fourth Apply Piston Retainer O-Rings
  Courtesy of FORD MOTOR CO.
Install the fourth apply piston into the fourth apply piston retainer.

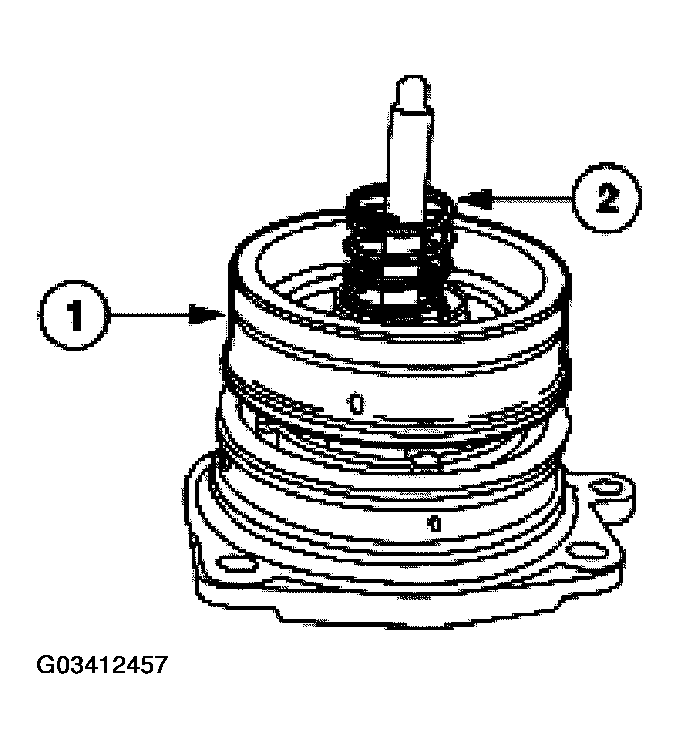

Fig 3: Installing Fourth Apply Piston Into Fourth Apply Piston Retainer
Courtesy of FORD MOTOR CO.
Position a gasket on the fourth apply piston retainer.

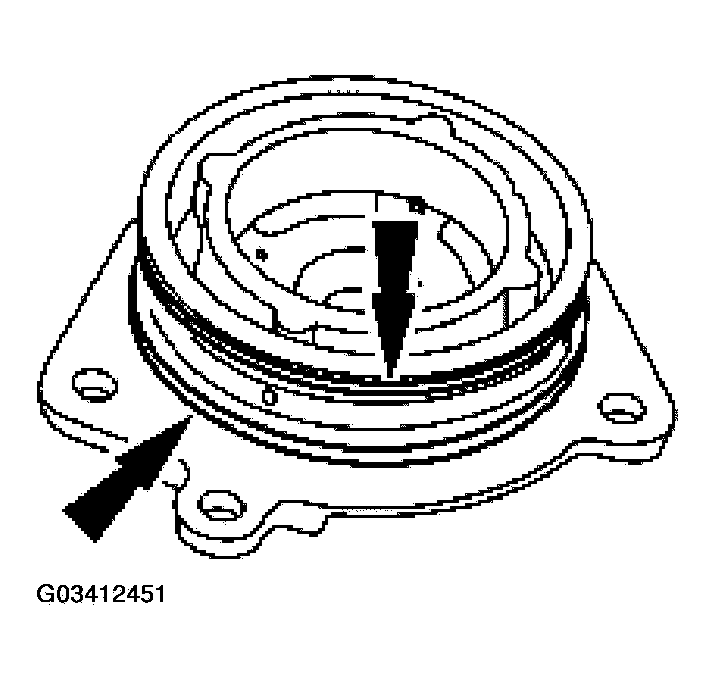

Fig 4: Positioning Gasket On The Fourth Apply Piston Retainer
Courtesy of FORD MOTOR CO.
Assemble the second apply piston.
1. Position the apply piston shaft.
2. Position the fourth apply piston return spring.
3. Position the 2-4 servo retainer.
4. Install the E -clip.

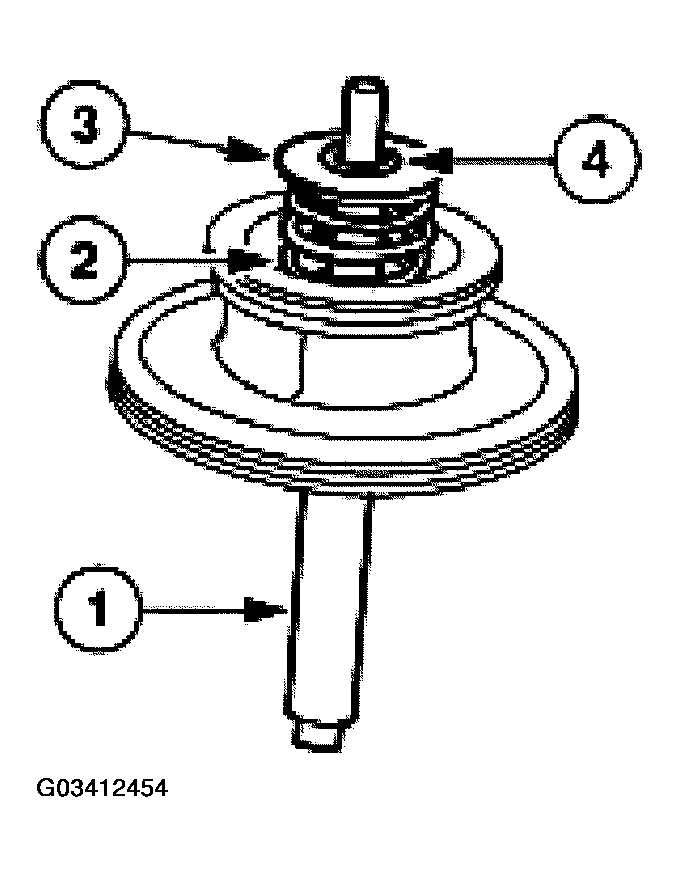

  Fig 5: Positioning Fourth Apply Piston Return Spring
  Courtesy of FORD MOTOR CO.
Install the second apply piston D-rings.
- Coat the D-rings with Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON®.

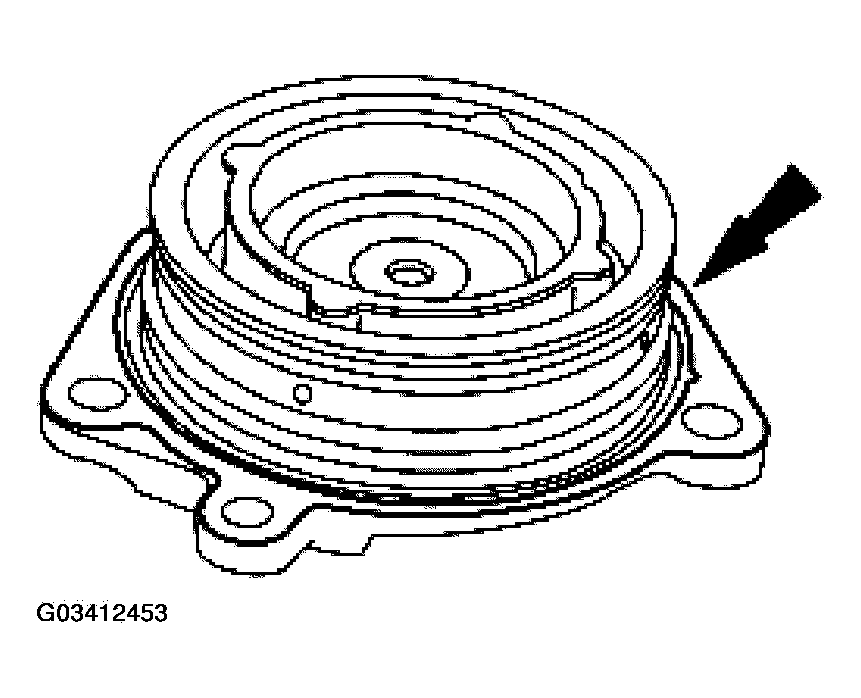

  Fig 6: Installing Second Apply Piston D-Rings
  Courtesy of FORD MOTOR CO.
Install the second apply piston into the second apply piston retainer.

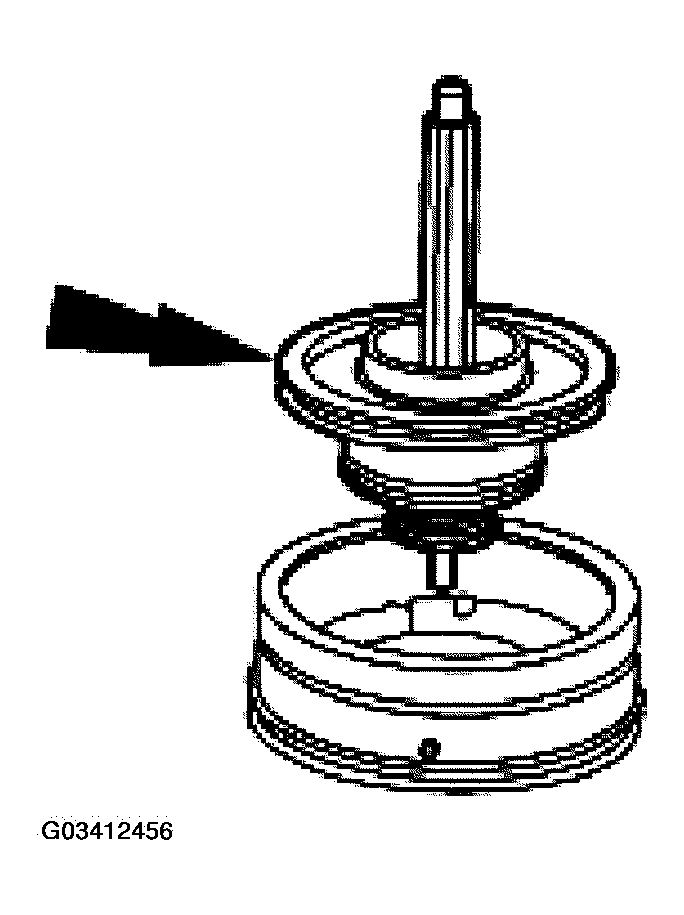

Fig 7: Installing Second Apply Piston Into Second Apply Piston Retainer
Courtesy of FORD MOTOR CO.
Install the second apply piston retainer into the 2-4 servo assembly.
1. Install the piston retainer.
2. Install the return spring.

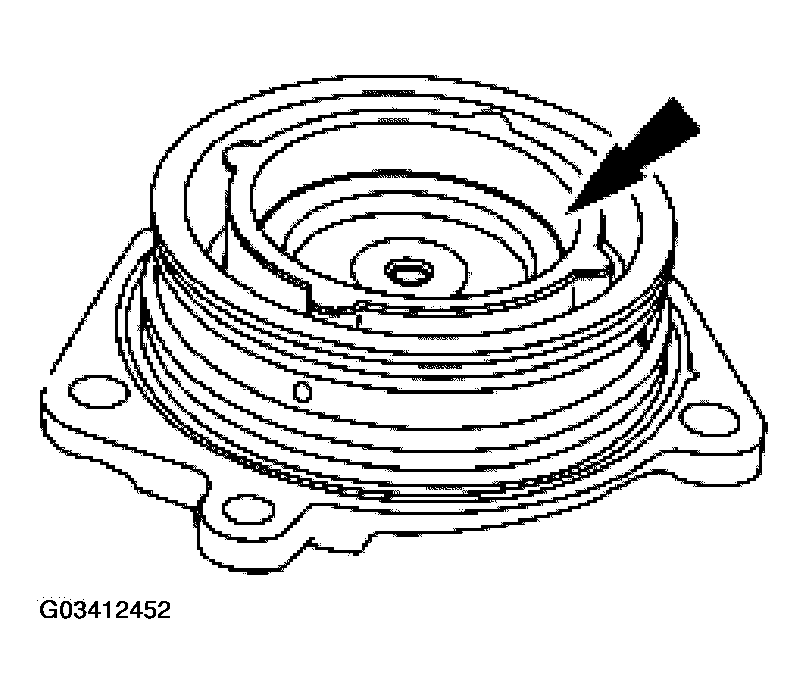

  Fig 8: Installing Return Spring
  Courtesy of FORD MOTOR CO.
