Disassembly And Assembly Of Subassemblies: Differential: Disassembly

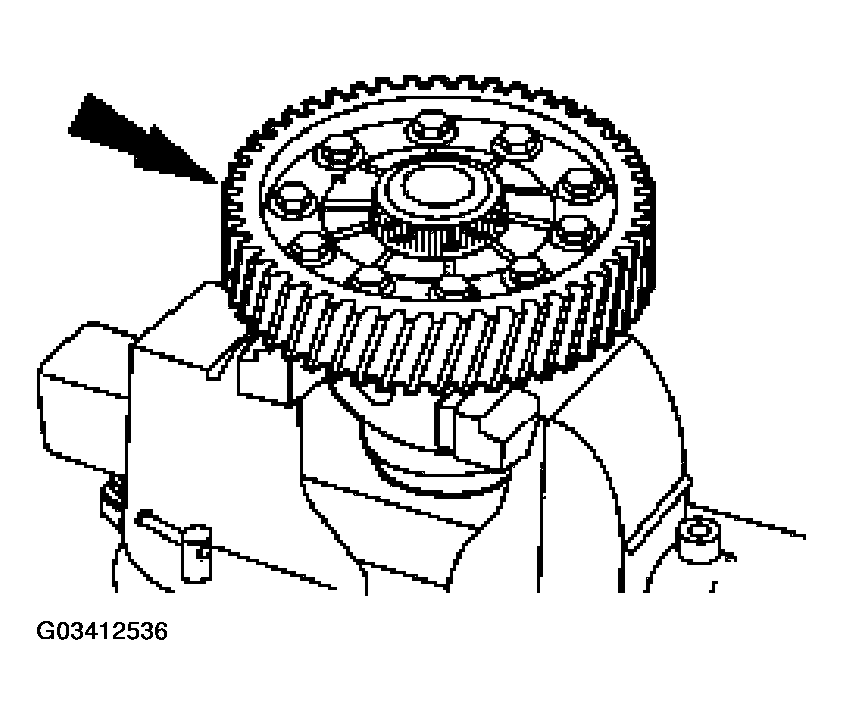

Clamp the differential in a soft-jawed vise.

Fig 1: Locating Clamp Differential In Soft-Jawed Vise
Courtesy of FORD MOTOR CO.

NOTE: Do not remove the final drive gear unless it must be replaced.

NOTE: Mark the final drive gear prior to removal to ensure that it is installed in the same position.

If the final drive gear shows signs of excessive wear or damage, remove the final drive gear.

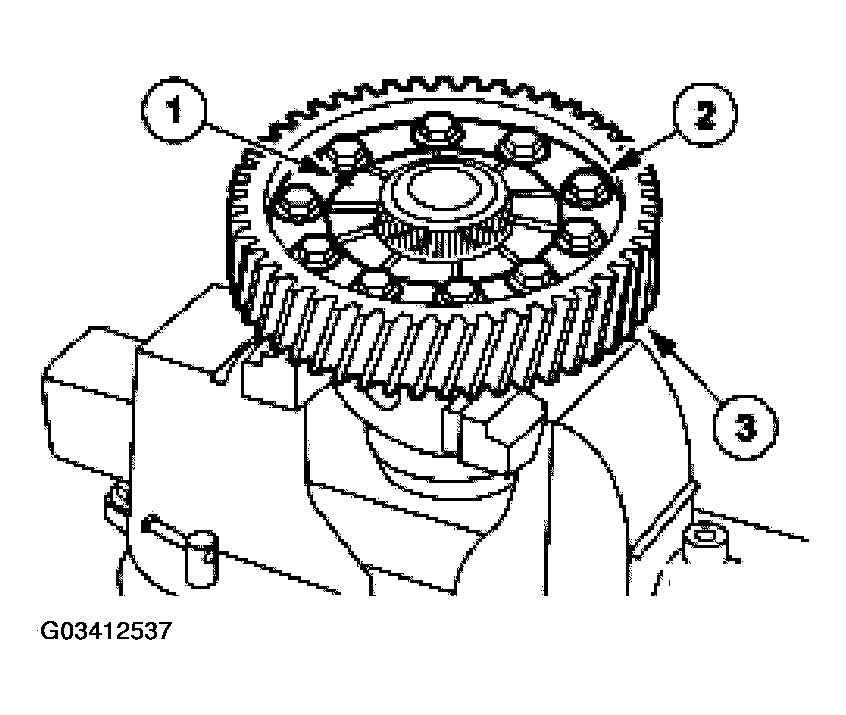

1. Mark the final drive gear for installation.
2. Remove the bolts.
3. Remove the gear.

  Fig 2: Removing Bolts
  Courtesy of FORD MOTOR CO.

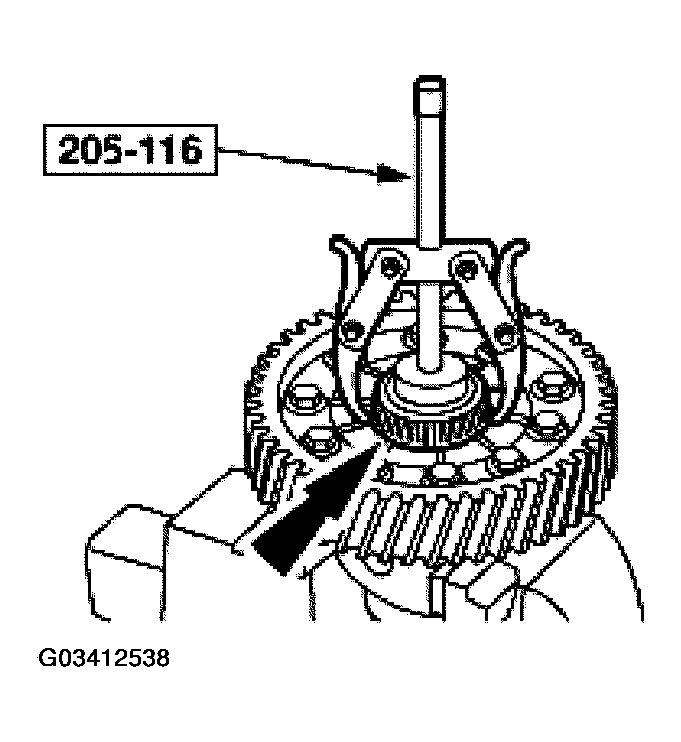

Using the special tool, remove the differential bearing.
- Discard the bearing if damaged or worn.

  Fig 3: Removing Differential Bearing
  Courtesy of FORD MOTOR CO.

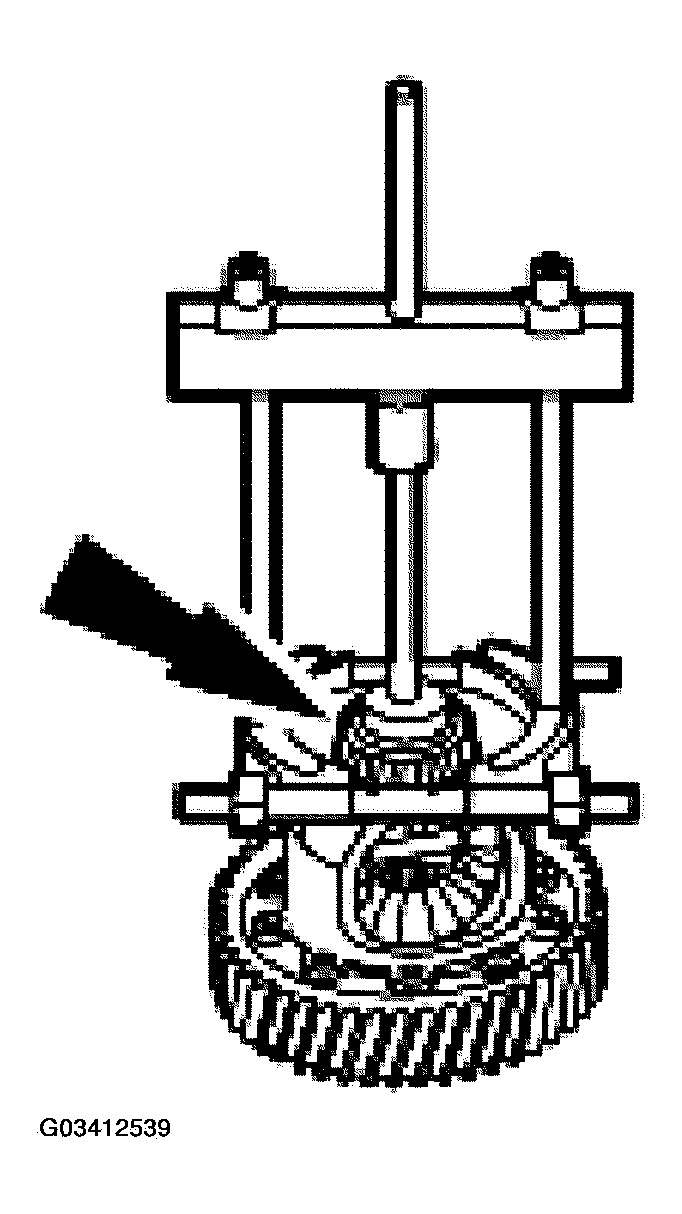

Remove the differential bearing.
- Discard the bearing if damaged or worn.

  Fig 4: Removing Differential Bearing
  Courtesy of FORD MOTOR CO.

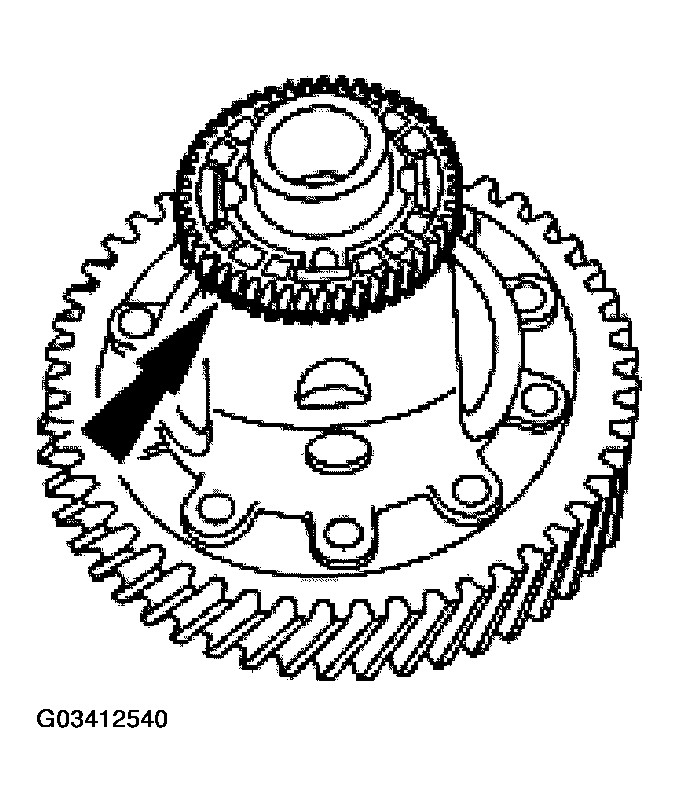

Remove the speedometer drive gear.

Fig 5: Removing Speedometer Drive Gear
Courtesy of FORD MOTOR CO.

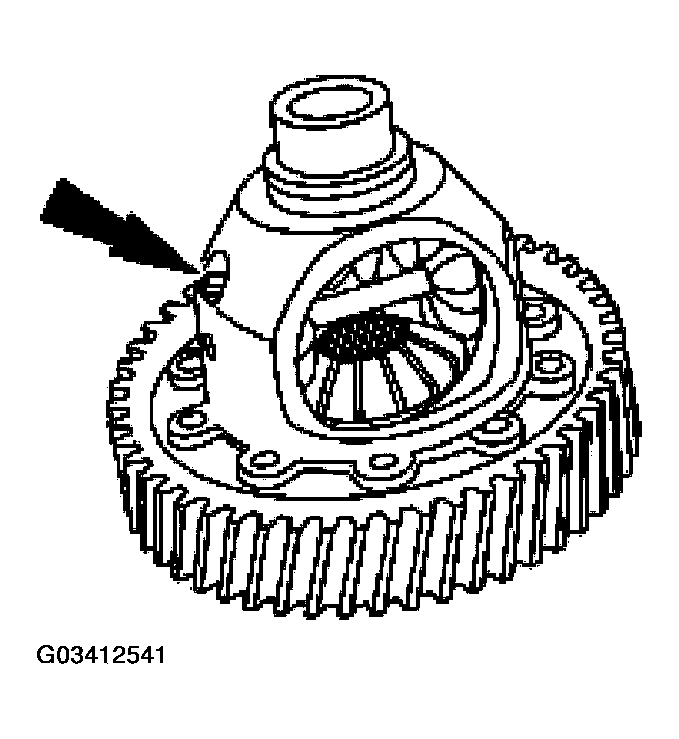

Remove the shaft lock pin out from the differential case.

Fig 6: Removing Shaft Lock Pin Out From Differential Case
Courtesy of FORD MOTOR CO.

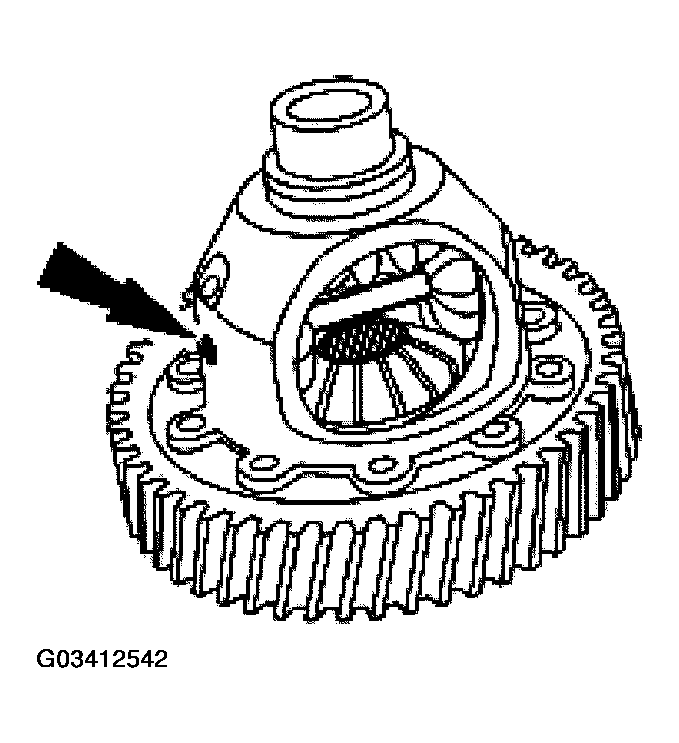

Remove the differential pinion shaft.

Fig 7: Removing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

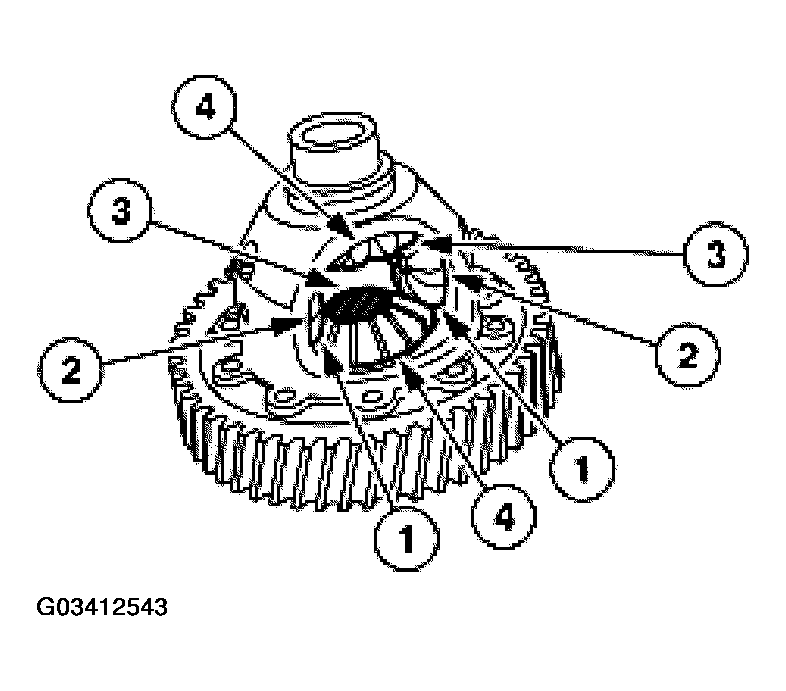

Remove the differential gears.
1. Remove the pinion gears.
2. Remove the pinion gear thrust washers.
3. Remove the side gears.
4. Remove the side gear thrust washers.

  Fig 8: Removing Differential Gears
  Courtesy of FORD MOTOR CO.
Inspect the differential components.
- Check the differential case.
- Check the side and pinion gears.
- Check the thrust washers.
- Ensure that the bearings rotate freely and are free of noise, pitting and cracks.
