Special Tool(s)

Fig 1: Identifying Special Tool(s)
G03412534Courtesy of FORD MOTOR CO.

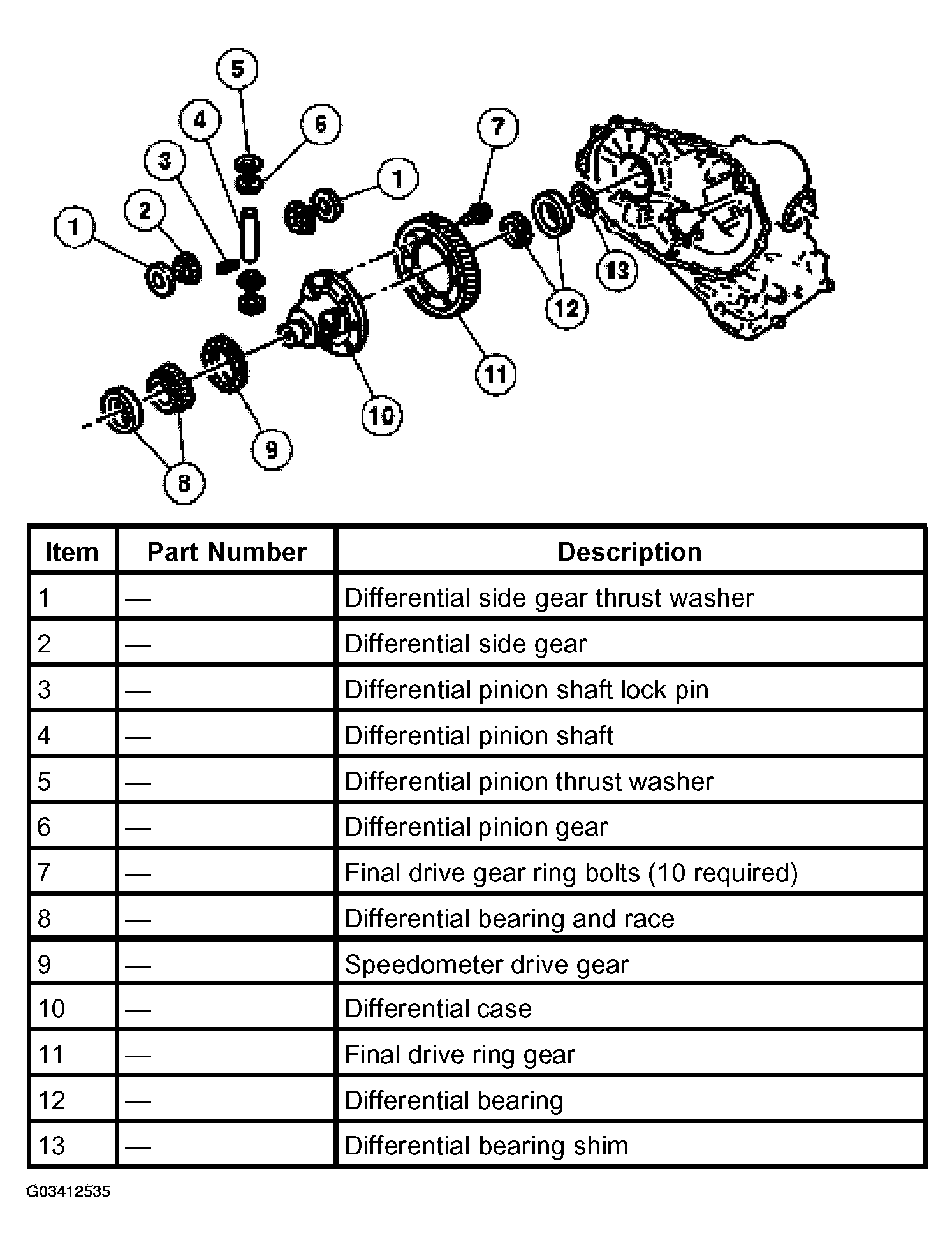

Fig 2: Identifying Differential
G03412535Courtesy of FORD MOTOR CO.
