Forward and Coasting Clutch: Disassembly

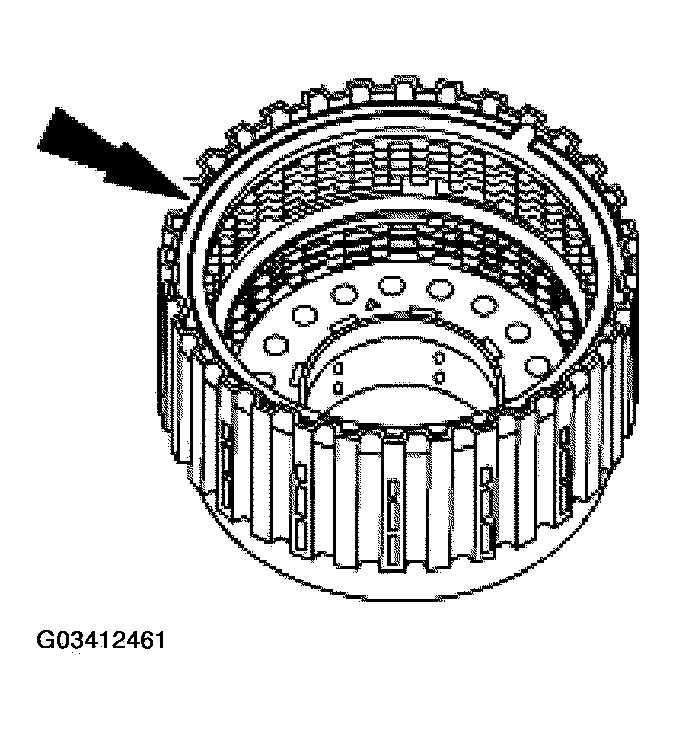

Remove the forward clutch pressure plate snap ring.

Fig 1: Removing Forward Clutch Pressure Plate Snap Ring
Courtesy of FORD MOTOR CO.

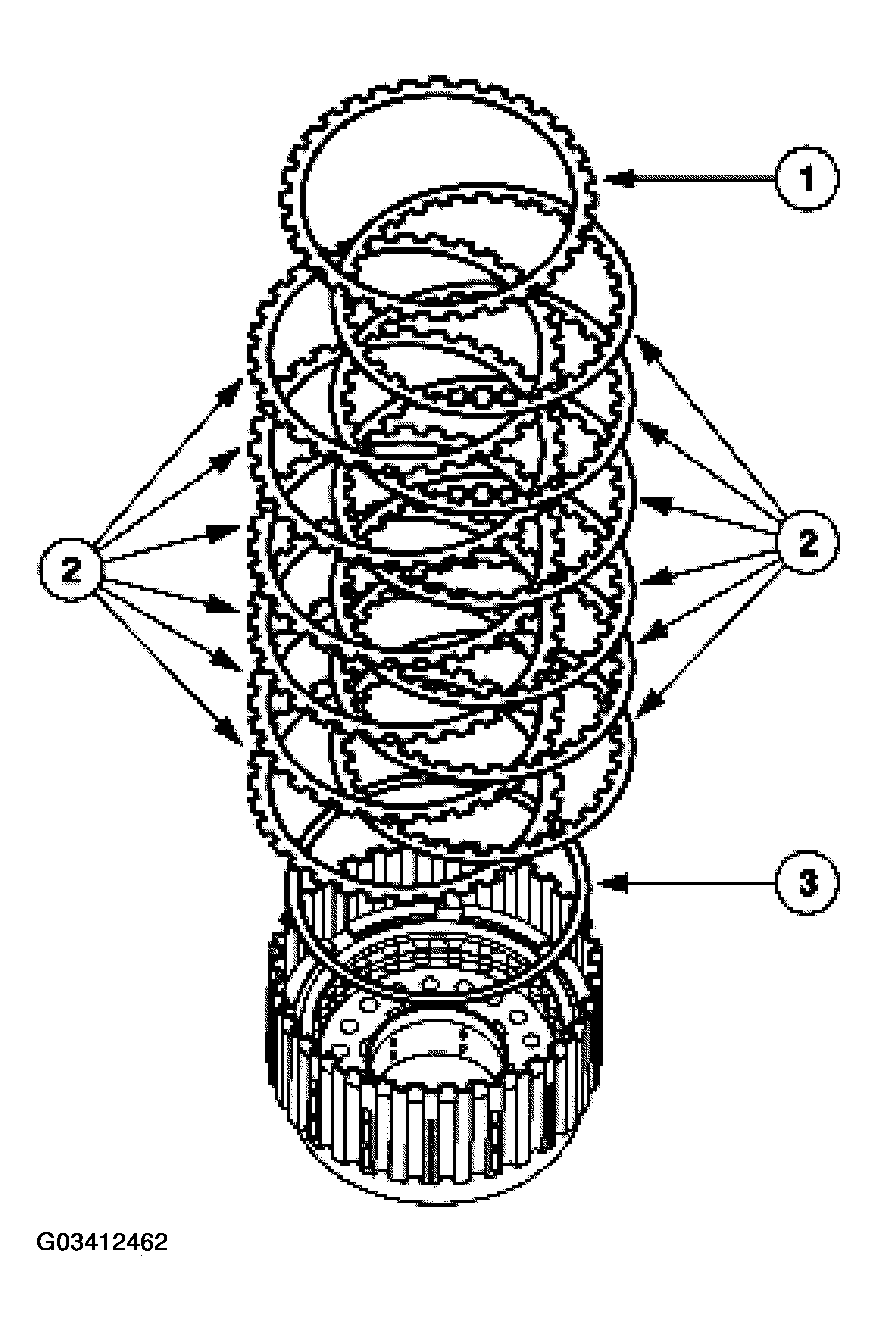

Remove the forward clutch assembly.
1. Remove the pressure plate.
2. Remove the clutch assembly.
3. Remove the dish plate.

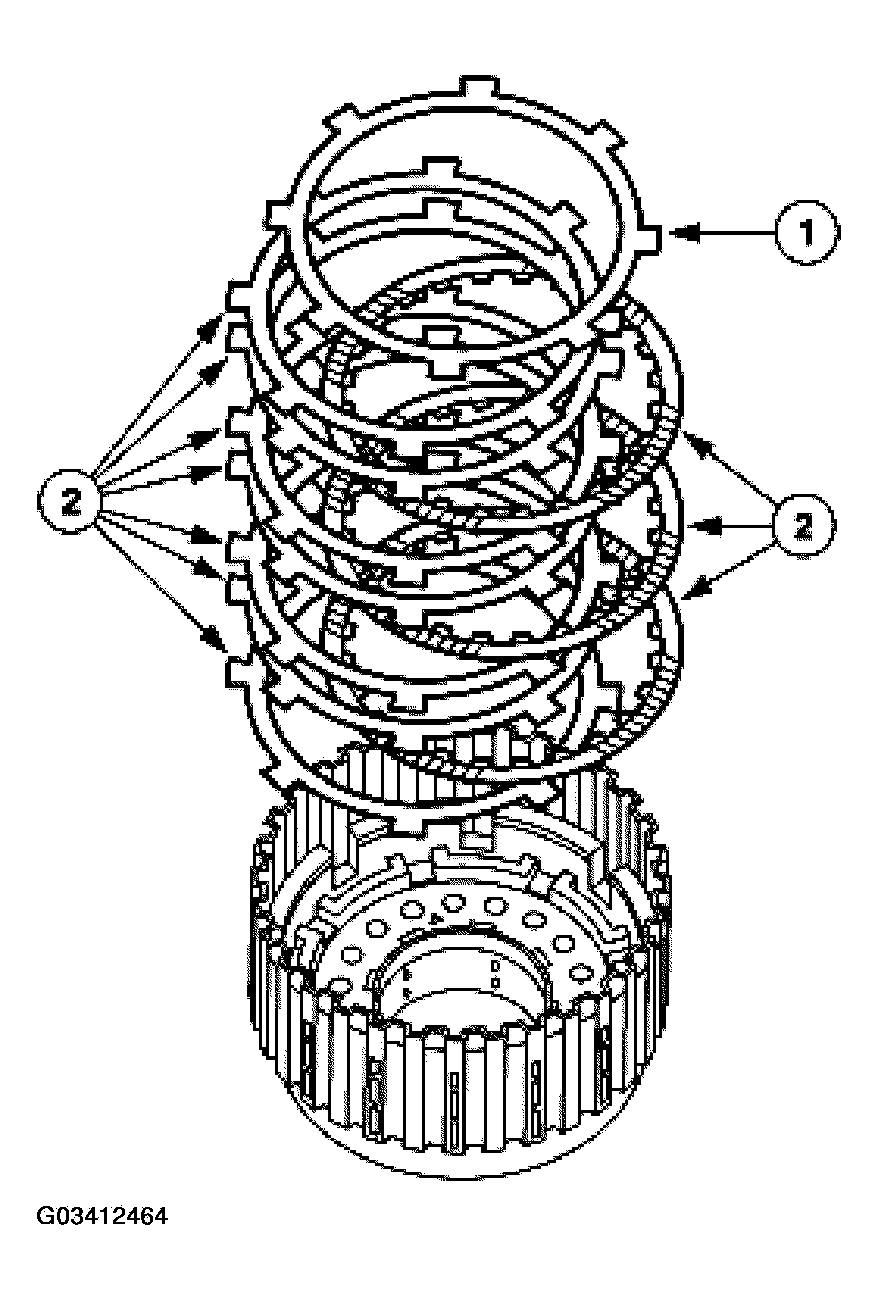

  Fig 2: Disassembling Forward Clutch Assembly
  Courtesy of FORD MOTOR CO.

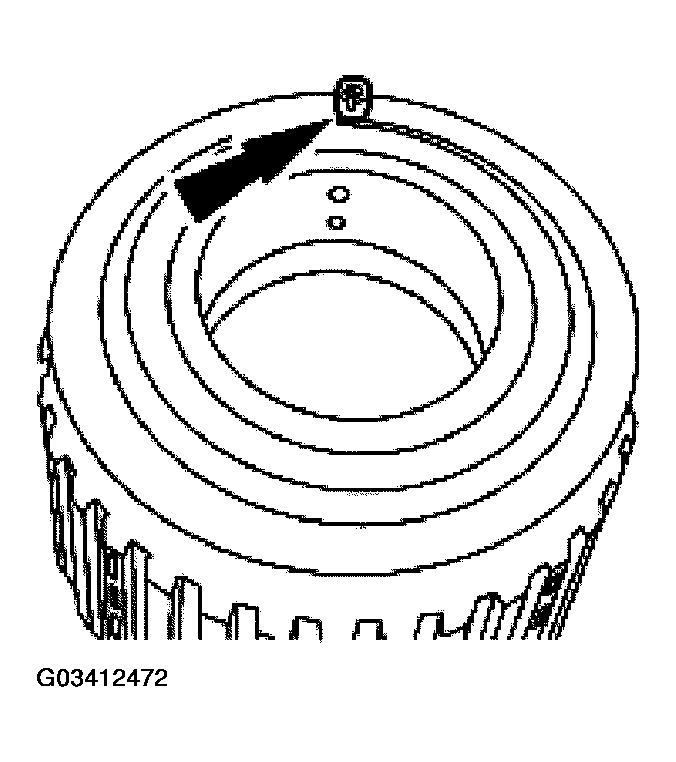

Remove the coasting clutch pressure plate snap ring.

Fig 3: Removing Coasting Clutch Pressure Plate Snap Ring
Courtesy of FORD MOTOR CO.
Remove the coasting clutch assembly.
1. Remove the coasting clutch pressure plate.
2. Remove the clutch pack.

  Fig 4: Disassembling Coasting Clutch Assembly
  Courtesy of FORD MOTOR CO.

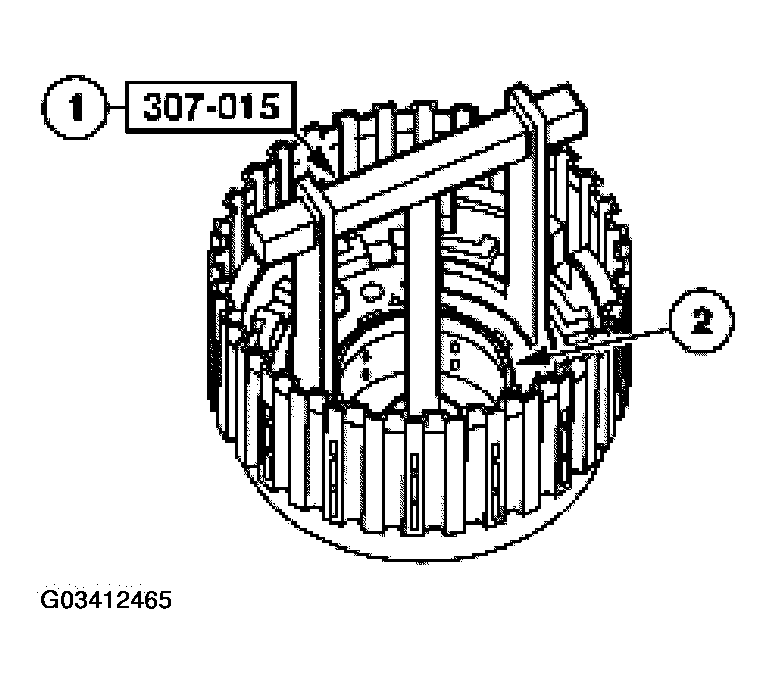

Remove the coasting clutch retainer snap ring.
1. Using the special tool, compress the coasting clutch return springs.
2. Remove the snap ring.

  Fig 5: Removing Coasting Clutch Retainer Snap Ring
  Courtesy of FORD MOTOR CO.

NOTE: Do not remove the springs from the retainer.

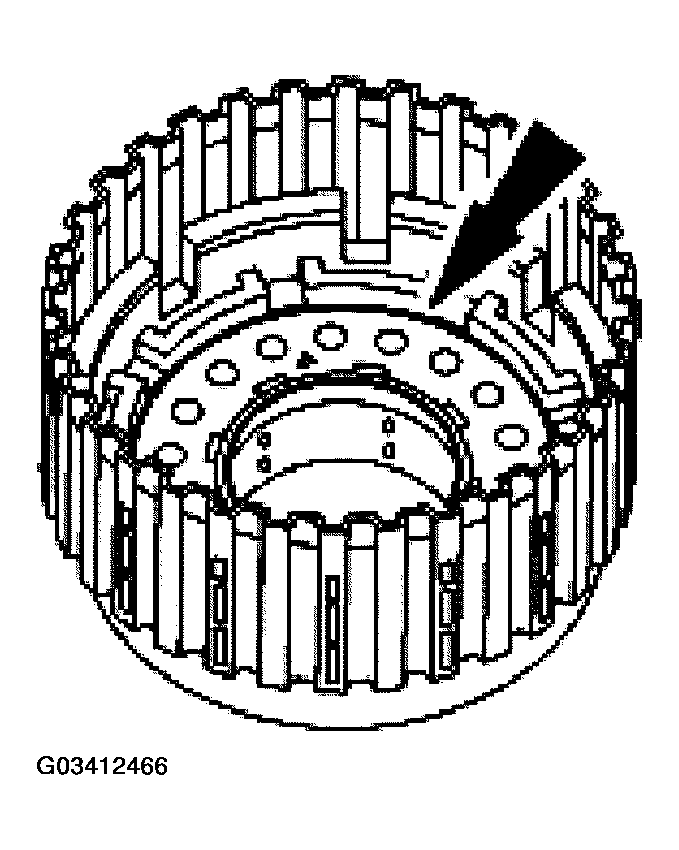

Fig 6: Removing Coasting Clutch Spring Retainer Assembly From Coasting Clutch Cylinder

Courtesy of FORD MOTOR CO.

Remove the coasting clutch spring retainer assembly from the coasting clutch cylinder.

NOTE: The other ports have to be blocked off to prevent air pressure loss.

Remove the clutch pistons from the clutch cylinder.
1. Apply compressed air to remove the coasting clutch piston.
2. Apply compressed air to remove the forward clutch piston.

  Fig 7: Removing Clutch Pistons From Clutch Cylinder
  Courtesy of FORD MOTOR CO.

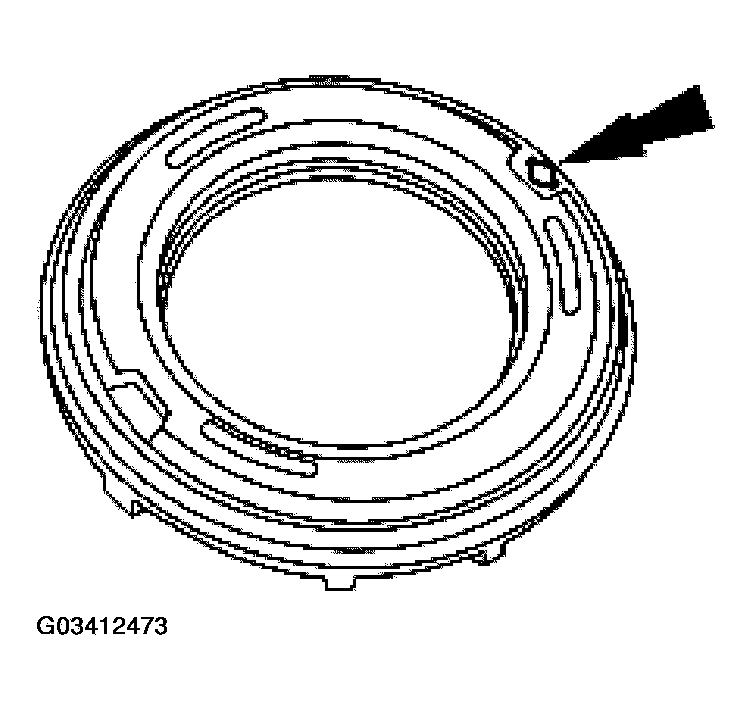

Remove coasting clutch piston seals.

Fig 8: Removing Coasting Clutch Piston Seals
Courtesy of FORD MOTOR CO.

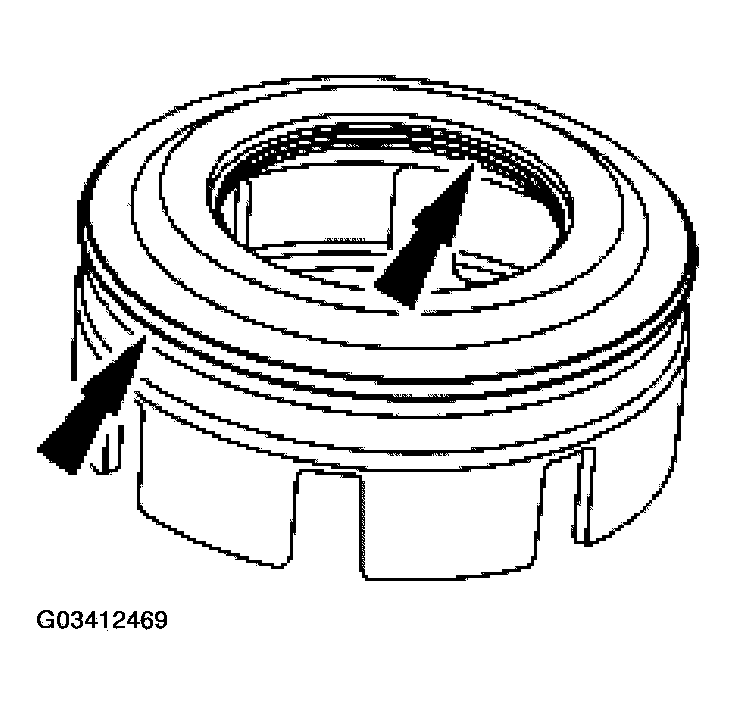

Remove the forward clutch piston seals.

Fig 9: Removing Forward Clutch Piston Seals
Courtesy of FORD MOTOR CO.
Inspect the forward and coasting clutch components for damage and wear.
Measure the thickness of the forward and coasting clutch plate facings. The standard thickness is 1.6 mm (0.063 in). If the facings are less than 1.4 mm (0.055) thick, replace all of the clutch plate facings.

Fig 10: Measuring Thickness Of Forward And Coasting Clutch Plate Facings
Courtesy of FORD MOTOR CO.
Measure the coasting clutch dish plate. The plate should measure 2.7 mm (0.1 in). If the plate is out of specification, install a new dish plate.

Fig 11: Measuring Coasting Clutch Dish Plate
Courtesy of FORD MOTOR CO.

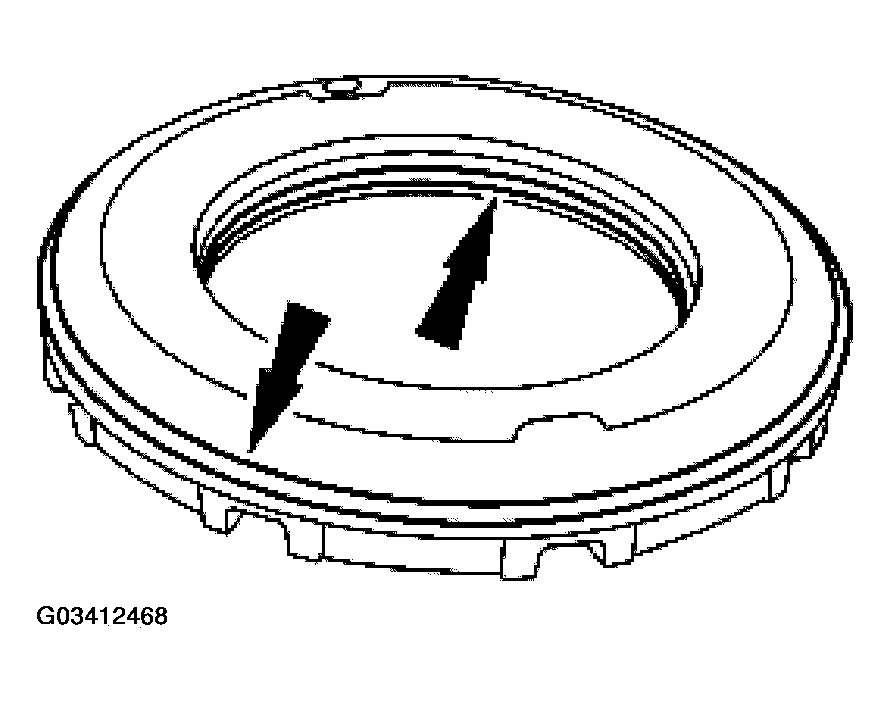

Apply compressed air to the check ball on the outside of the forward clutch cylinder. Air should leak past the check ball.

Fig 12: Locating Check Ball (1 Of 2)
Courtesy of FORD MOTOR CO.

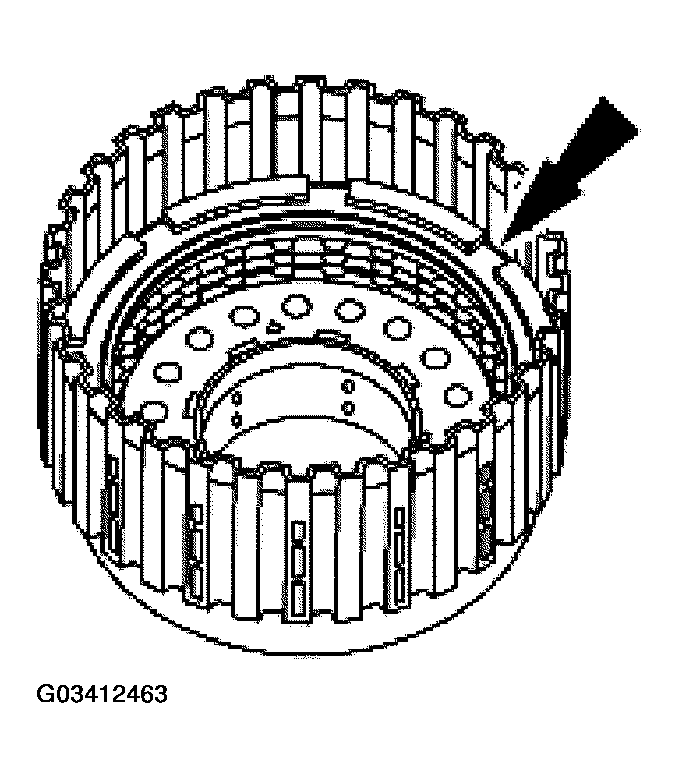

Apply compressed air to the check ball on the outside of the coasting clutch piston. Air should not leak past the check ball.

Fig 13: Locating Check Ball (2 Of 2)
Courtesy of FORD MOTOR CO.
