Low/Reverse Clutch Piston Assembly: Disassembly

Remove the low reverse clutch piston from the low reverse clutch piston retainer.
- Apply compressed air to the fluid passage.

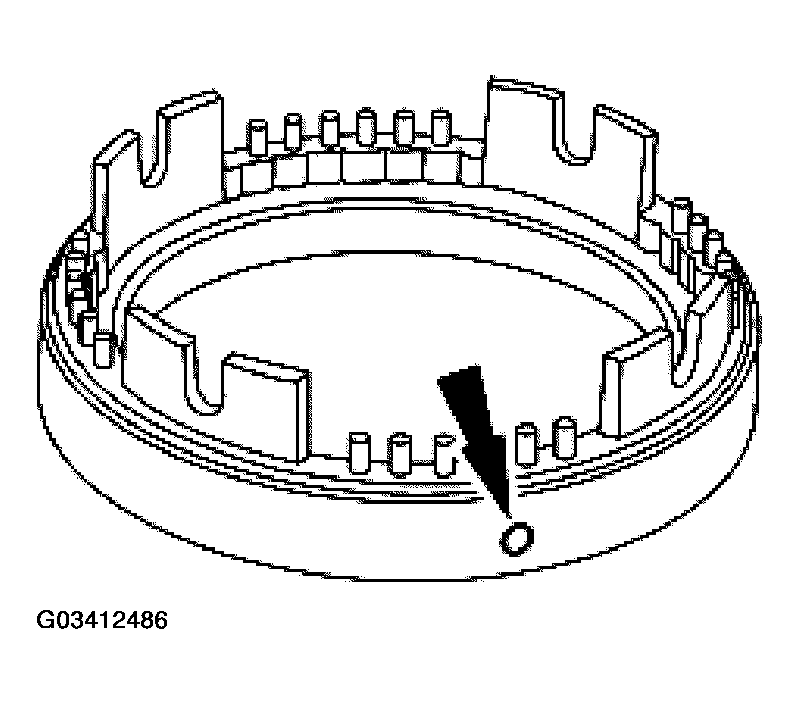

  Fig 1: Removing Low Reverse Clutch Piston From Low Reverse Clutch Piston Retainer
  Courtesy of FORD MOTOR CO.
Remove the low reverse clutch piston seals.

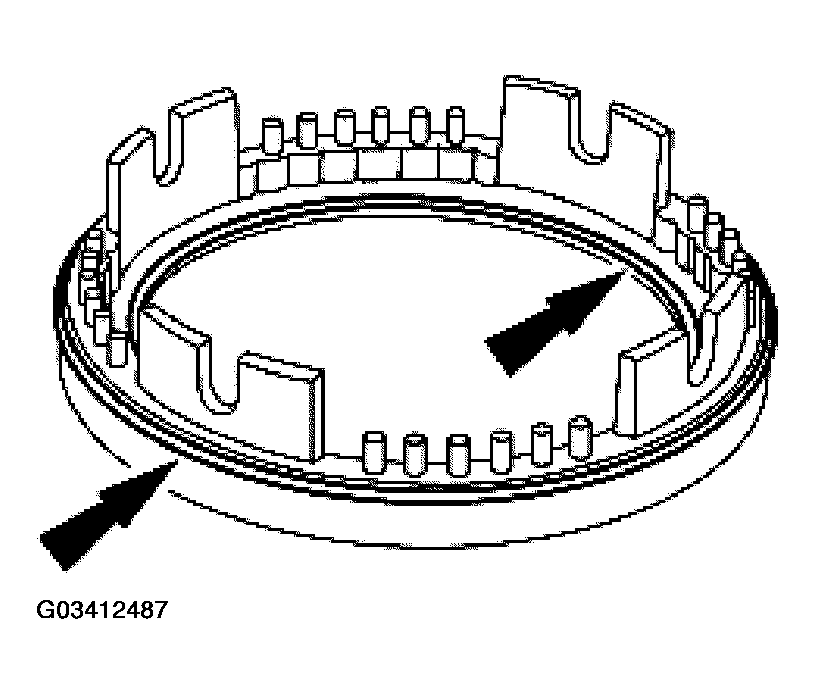

Fig 2: Removing Low Reverse Clutch Piston Seals
Courtesy of FORD MOTOR CO.
Inspect the low reverse clutch piston components for wear and damage. Replace as necessary.
