Main Control Valve Body - Intermediate: Assembly

  1. Install the valve body check balls.

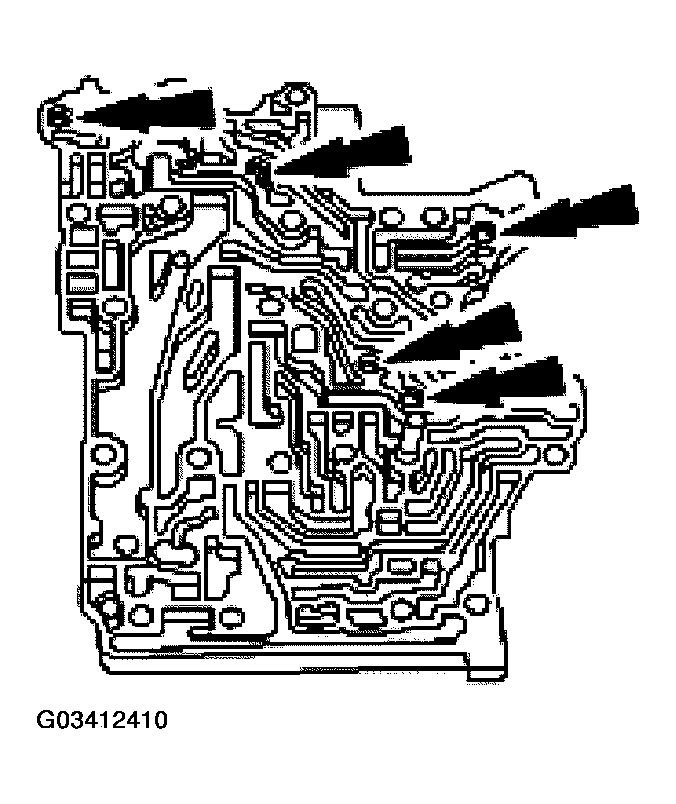

    Fig 1: Installing Valve Body Check Balls
    G03412410Courtesy of FORD MOTOR CO.
