Main Control Valve Body - Lower: Notes

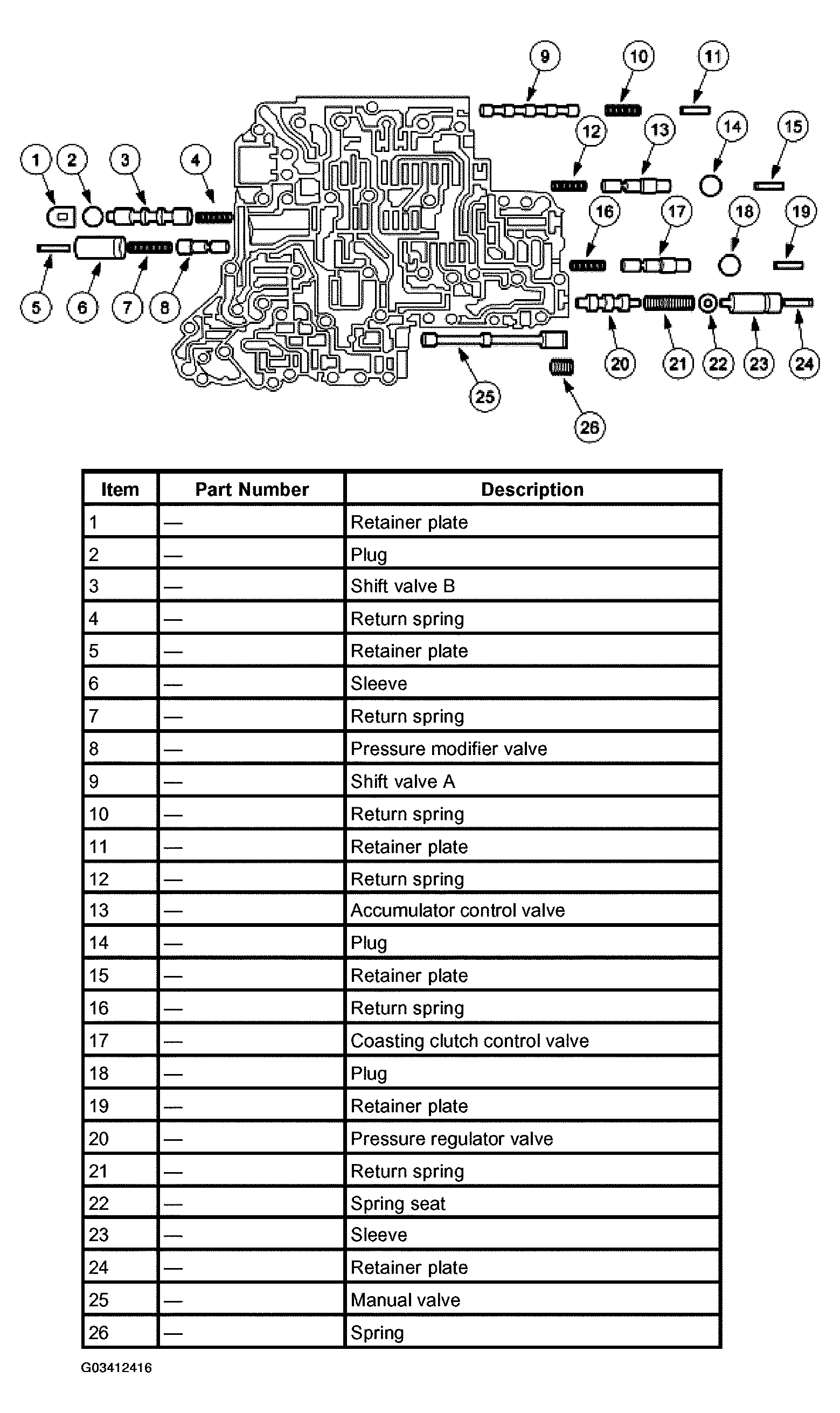

Fig 1: Disassembling Main Control Valve Body - Lower
G03412416Courtesy of FORD MOTOR CO.
