Pump Assembly: Assembly

  1. Using the special tool, install the front oil pump seal.

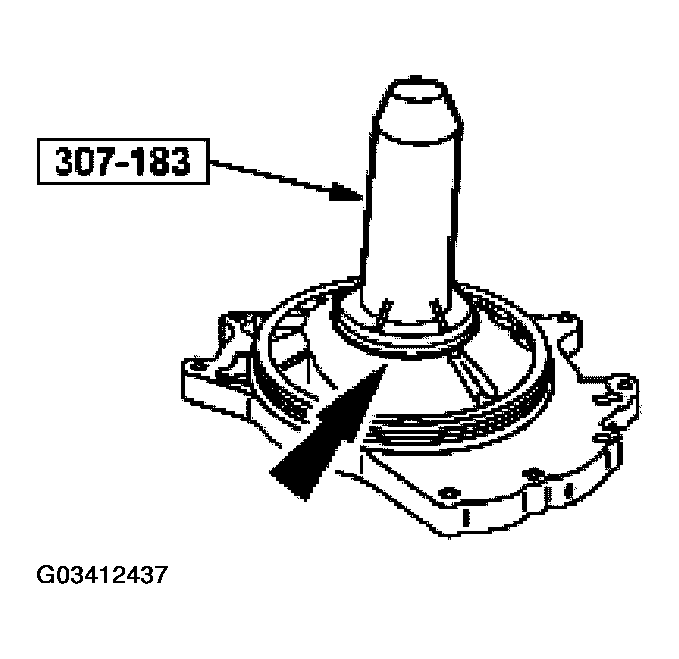

    Fig 1: Installing Front Oil Pump Seal
    G03412437Courtesy of FORD MOTOR CO.
  2. Install the oil pump housing O-ring.
    • Lubricate the O-ring with Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON®.

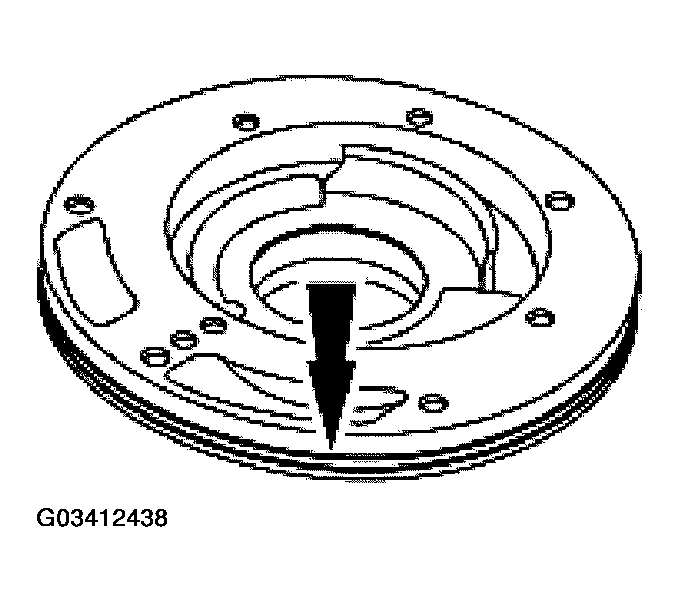

      Fig 2: Installing Oil Pump Housing O-Ring
      G03412438Courtesy of FORD MOTOR CO.
  3. Fill the oil pump housing with Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON® to prime the pump.
    4. CAUTION: Do not allow the splines of the oil pump to damage the oil pump cover seal. Wrapping of the splines may be necessary.
  4. Install the oil pump cover.
    • Tighten the bolts in the indicated sequence.

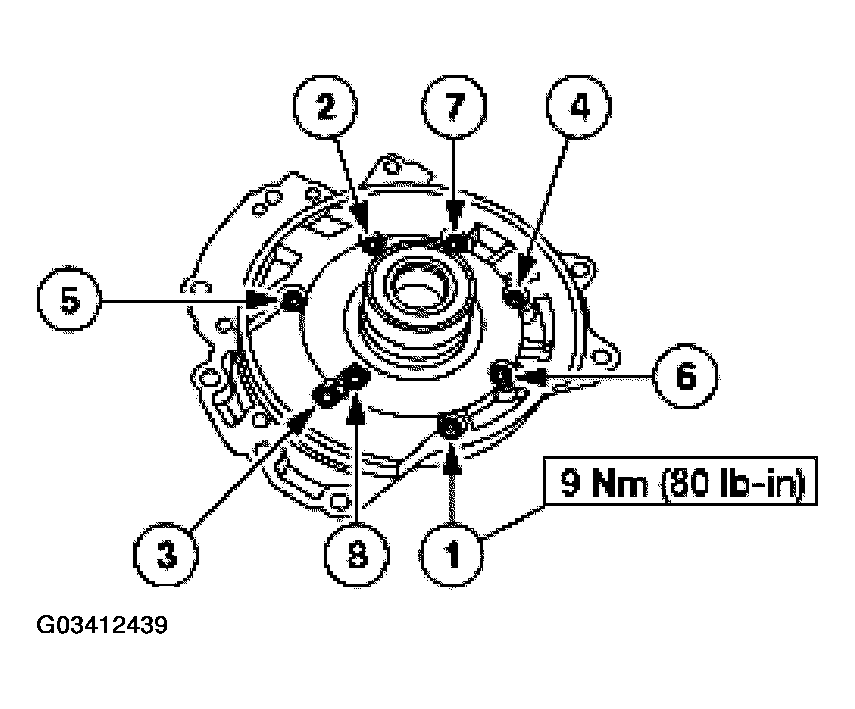

      Fig 3: Tightening Oil Pump Cover Bolts
      G03412439Courtesy of FORD MOTOR CO.
