Reduction Gear: Disassembly

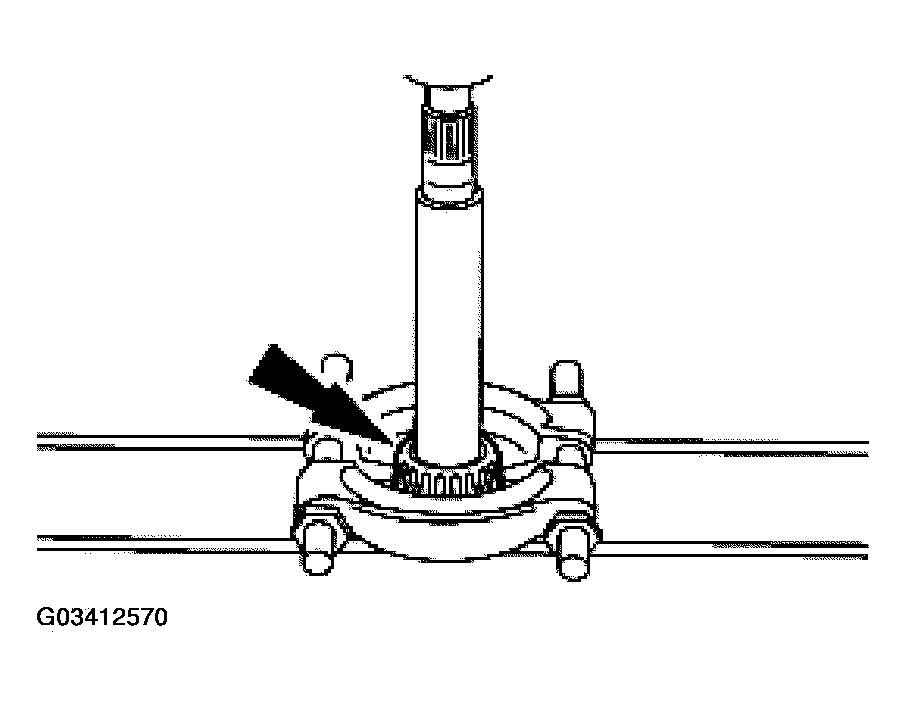

- Inspect the reduction gear bearing. If the bearing shows signs of excessive wear or damage, remove the bearing.
- Remove the reduction gear bearing outer cage.
NOTE:
Do not remove the reduction gear bearing unless it must be replaced.
NOTE:
The bearing may be damaged when removed.
