Reverse Clutch: Assembly

    NOTE: Verify correct seal orientation.
  1. Install the reverse clutch piston seals.
    • Apply Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON®.

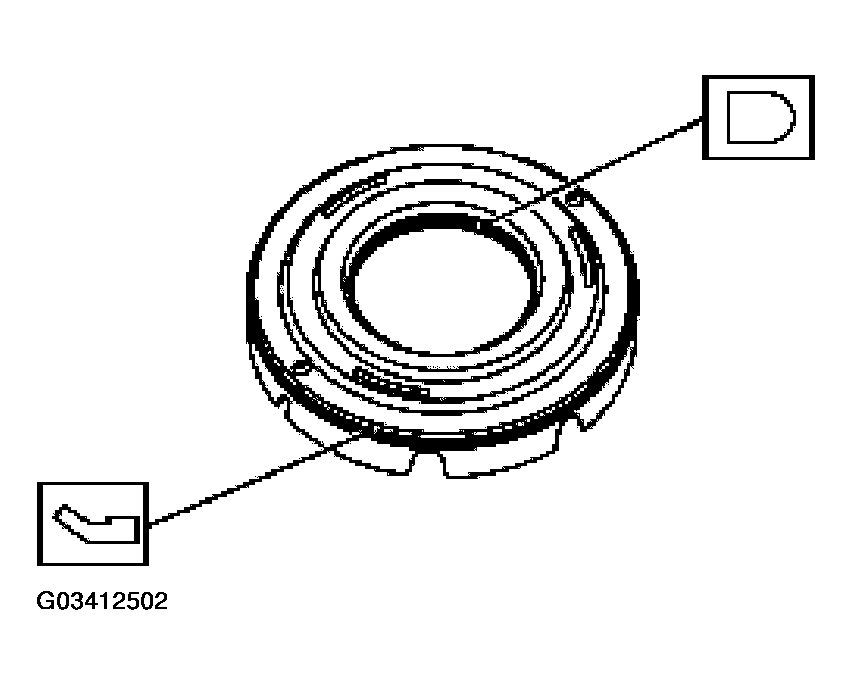

      Fig 1: Installing Reverse Clutch Piston Seals
      G03412502Courtesy of FORD MOTOR CO.
  2. NOTE: The piston can be rotated to ease installation into the clutch drum.
  3. Install the reverse clutch piston.
    1. Apply Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON® to the reverse clutch drum.
    2. Install the reverse clutch piston.

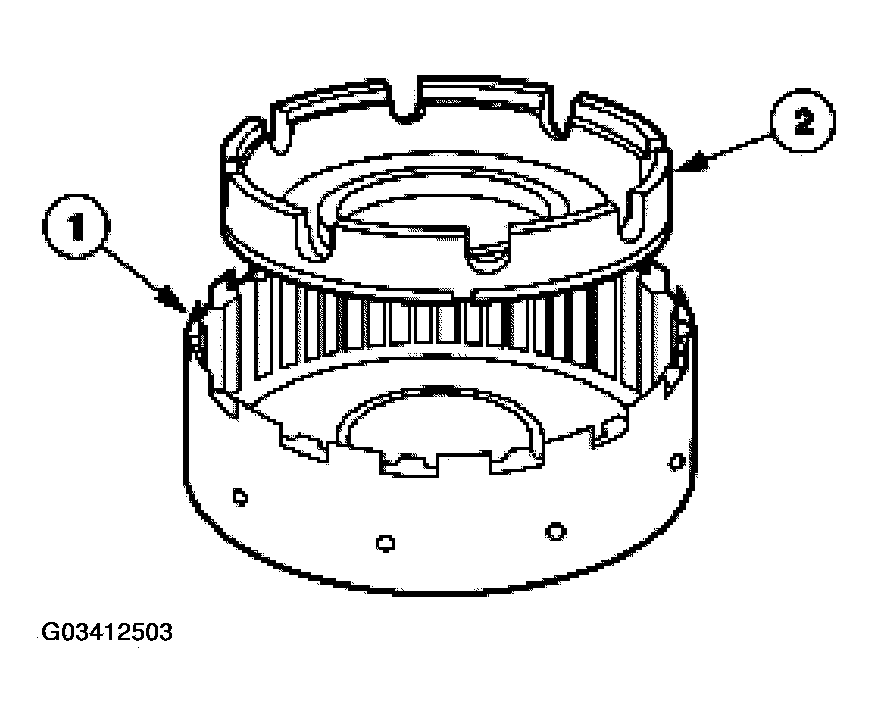

      Fig 2: Installing Reverse Clutch Piston
      G03412503Courtesy of FORD MOTOR CO.
  4. Install the reverse clutch spring retainer.
    1. Install the reverse clutch spring.
    2. Install the retainer.

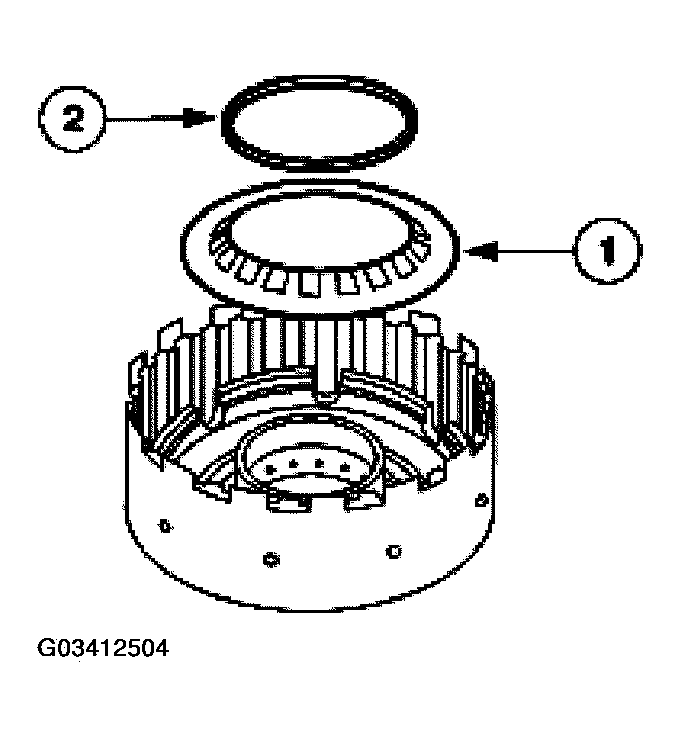

      Fig 3: Installing Retainer
      G03412504Courtesy of FORD MOTOR CO.
  5. Install the reverse clutch snap ring.
    1. Using the special tool, compress the reverse clutch drum spring.
    2. Install the snap ring.

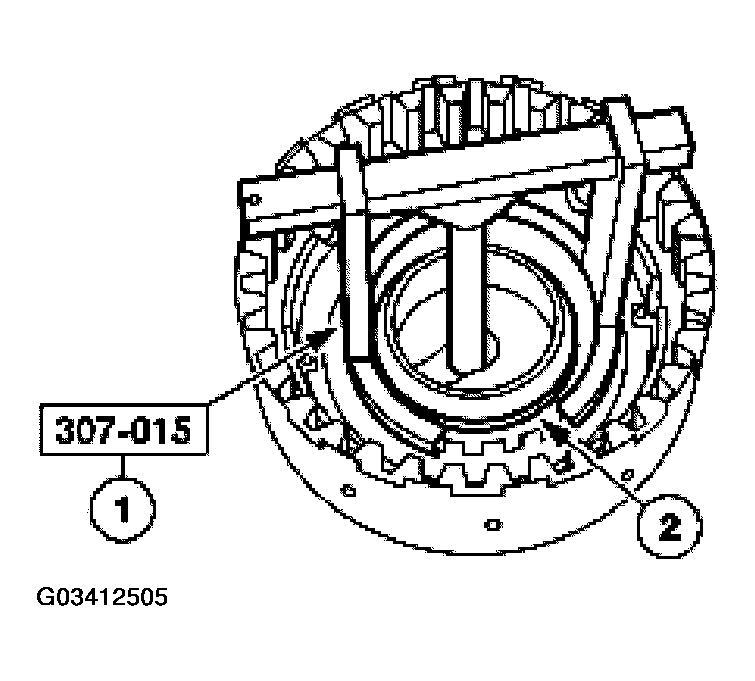

      Fig 4: Installing Reverse Clutch Snap Ring
      G03412505Courtesy of FORD MOTOR CO.
  6. NOTE: Do not align the clutch dish plates engagement teeth when installing.
  7. Install the reverse clutch pack assembly.
    1. Install the reverse clutch dish plates with the outer edges of the dish plates touching each other.
    2. Install the clutch pack.
    3. Install the reverse clutch pressure plate.

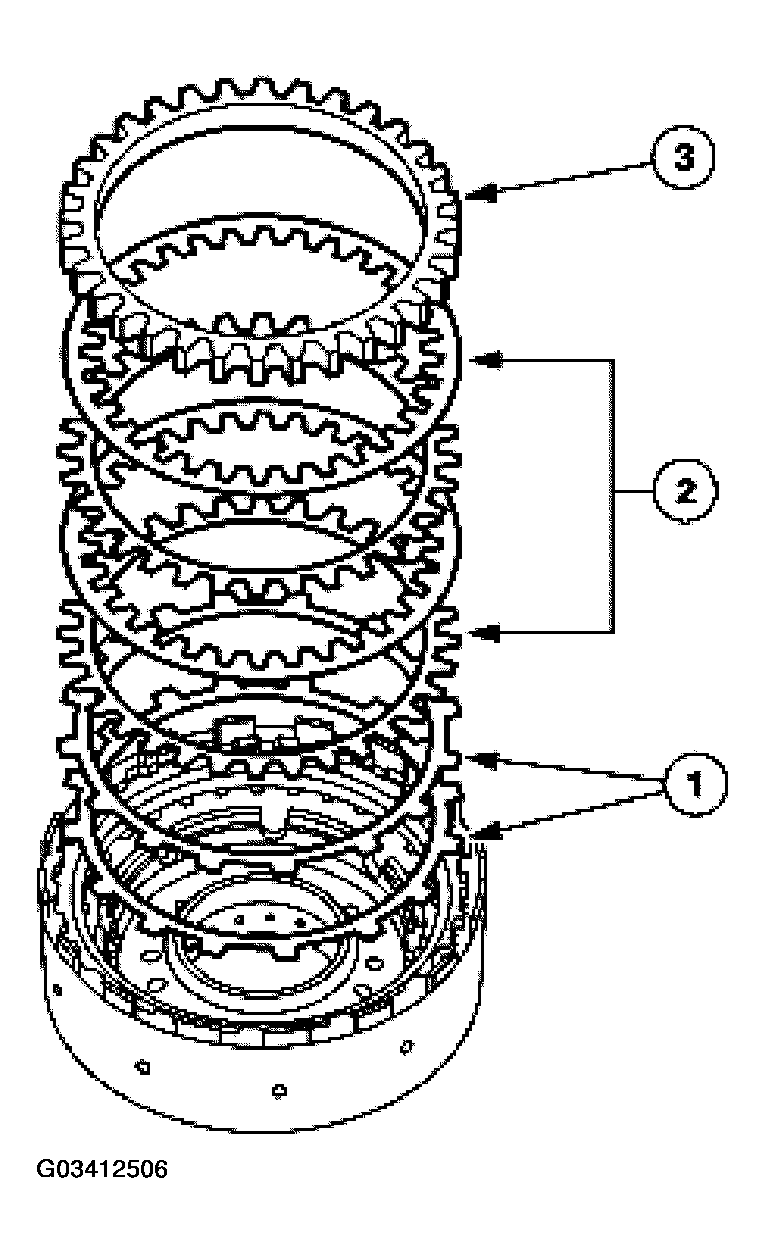

      Fig 5: Installing Reverse Clutch Pack Assembly
      G03412506Courtesy of FORD MOTOR CO.
  8. Install the reverse clutch snap ring.

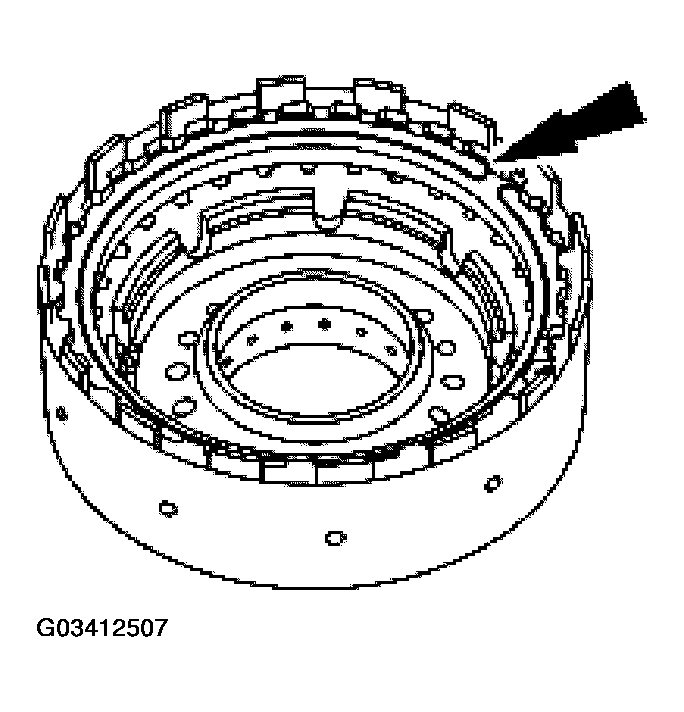

    Fig 6: Installing Reverse Clutch Snap Ring
    G03412507Courtesy of FORD MOTOR CO.
  9. Measure the clearance between the reverse clutch snap ring and the reverse clutch pressure plate. The standard clearance is 0.5 mm (0.020 in) - 0.8 mm (0.031 in). If the clearance is greater than 1.2 mm (0.047 in), select and install the correct pressure plate from the chart below.

    Reverse Clutch Pressure Plate Specifications

    REVERSE CLUTCH PRESSURE PLATE SPECIFICATIONS

    Thickness mm (in) Part Number
    6.6 mm (0.260 in) F3XY-7B066-S
    6.8 mm (0.268 in) F3XY-7B066-T
    7.0 mm (0.276 in) F3XY-7B066-U
    7.2 mm (0.283 in) F3XY-7B066-V
    7.4 mm (0.291 in) F3XY-7B066-W
    7.6 mm (0.299 in) F3XY-7B066-X
    7.8 mm (0.307 in) F3XY-7B066-Y

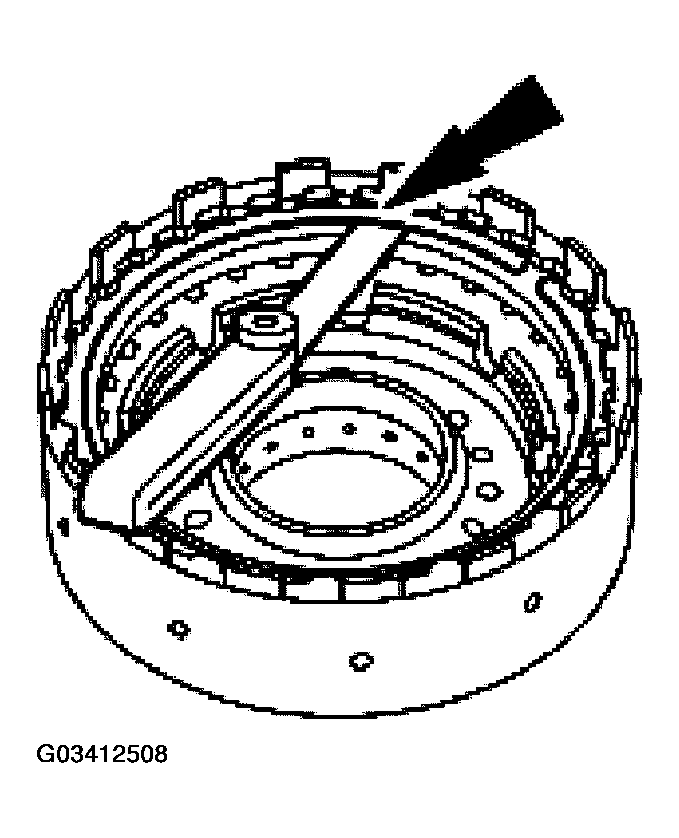

    Fig 7: Measuring Clearance Between Reverse Clutch Snap Ring And Reverse Clutch Pressure Plate
    G03412508Courtesy of FORD MOTOR CO.
  10. Check the reverse clutch for operation.
    • Apply compressed air to the fluid passage and check for clutch engagement.

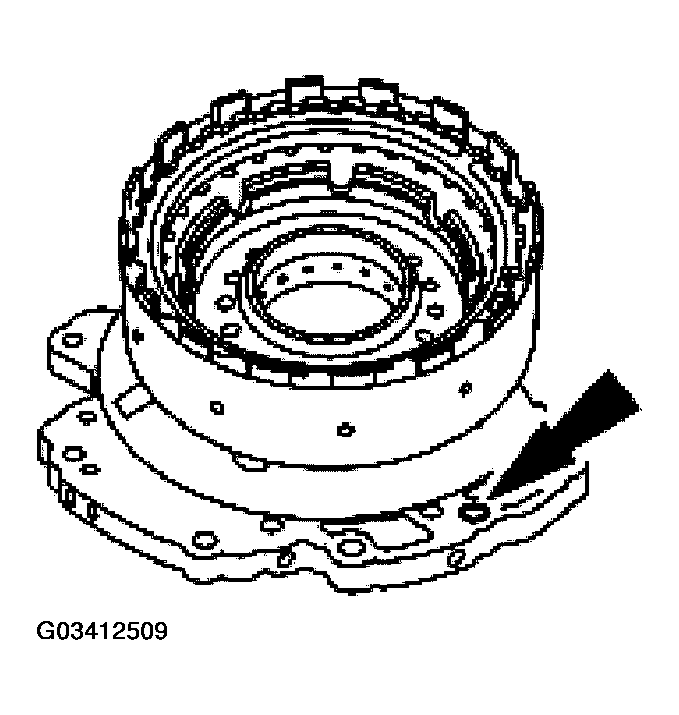

      Fig 8: Checking Reverse Clutch For Operation
      G03412509Courtesy of FORD MOTOR CO.
