Differential Fluid Seals: Installation

  1. Using the special tool, install the differential seal.

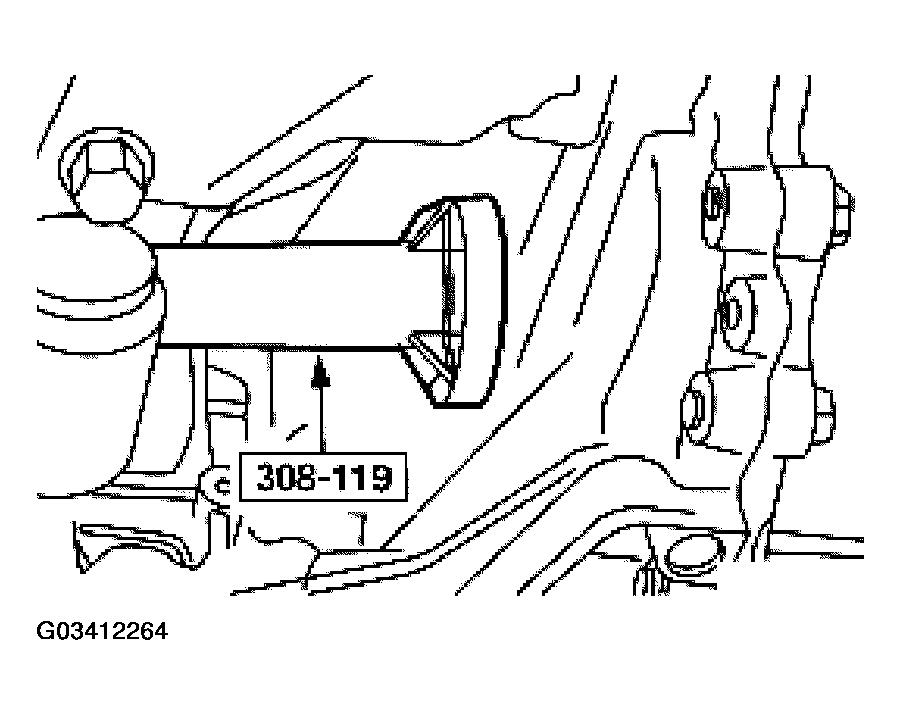

    Fig 1: Installing Differential Seal
    G03412264Courtesy of FORD MOTOR CO.
  2. Install the halfshaft. Refer to AXLE SHAFTS .
