Digital Transmission Range (TR) Sensor: Removal

  1. Position the shifter in the NEUTRAL (N) position.
  2. Disconnect the battery ground cable.
  3. Raise and support the vehicle. .
  4. Remove the engine splash shield.
  5. Remove the transmission range (TR) sensor.
    1. Remove the shifter cable nut.
    2. Disconnect the TR sensor electrical connector.
    3. Remove the screws.
    4. Remove the TR sensor.

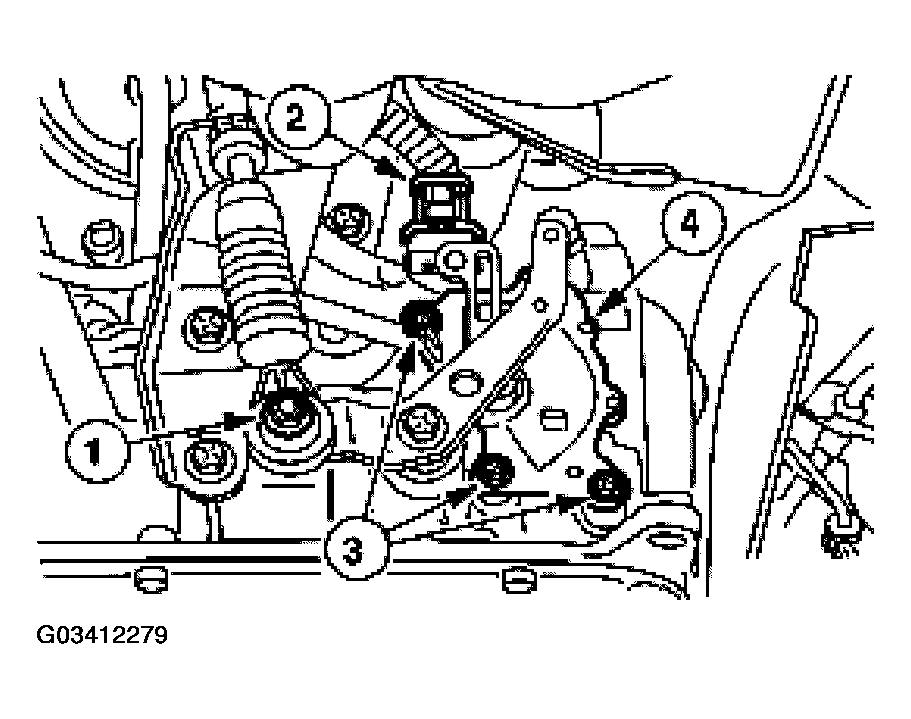

      Fig 1: Removing Shifter Cable Nut
      G03412279Courtesy of FORD MOTOR CO.
