Intermediate Servo - 2-4 Servo: Removal

  1. Disconnect the battery ground cable.
  2. Raise and support the vehicle. .
  3. Remove the engine splash shield.
  4. Remove the transaxle fill tube.
    1. Remove the ground strap nut.
    2. Remove the fill tube bolts.
    3. Remove the fill tube.

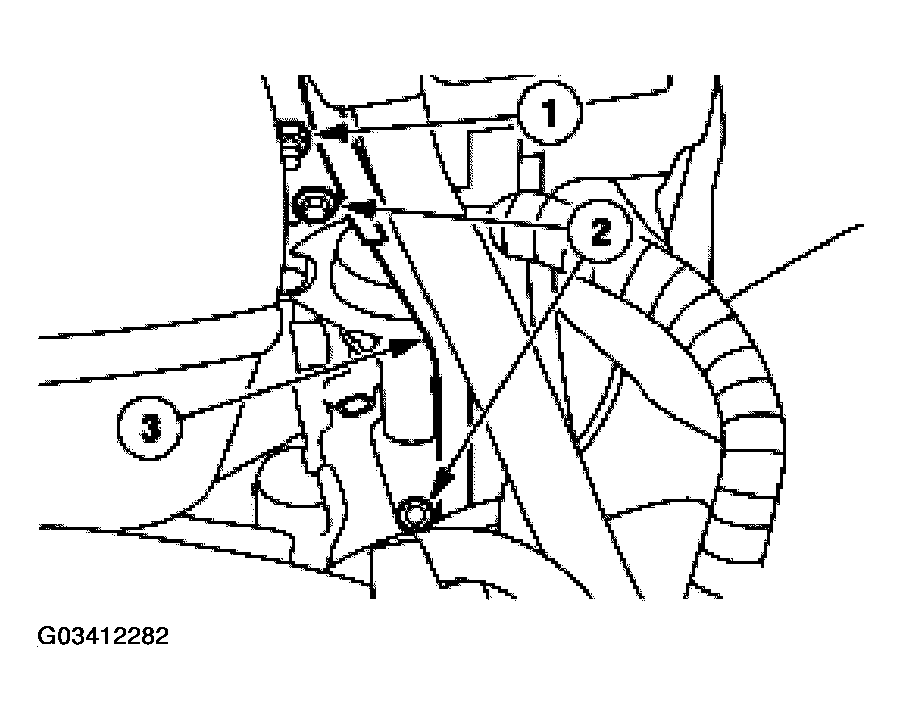

      Fig 1: Removing Ground Strap Nut
      G03412282Courtesy of FORD MOTOR CO.
  5. Remove the 2-4 servo piston retainer assembly.
    1. Remove the bolts.
    2. Remove the fourth apply piston retainer assembly.

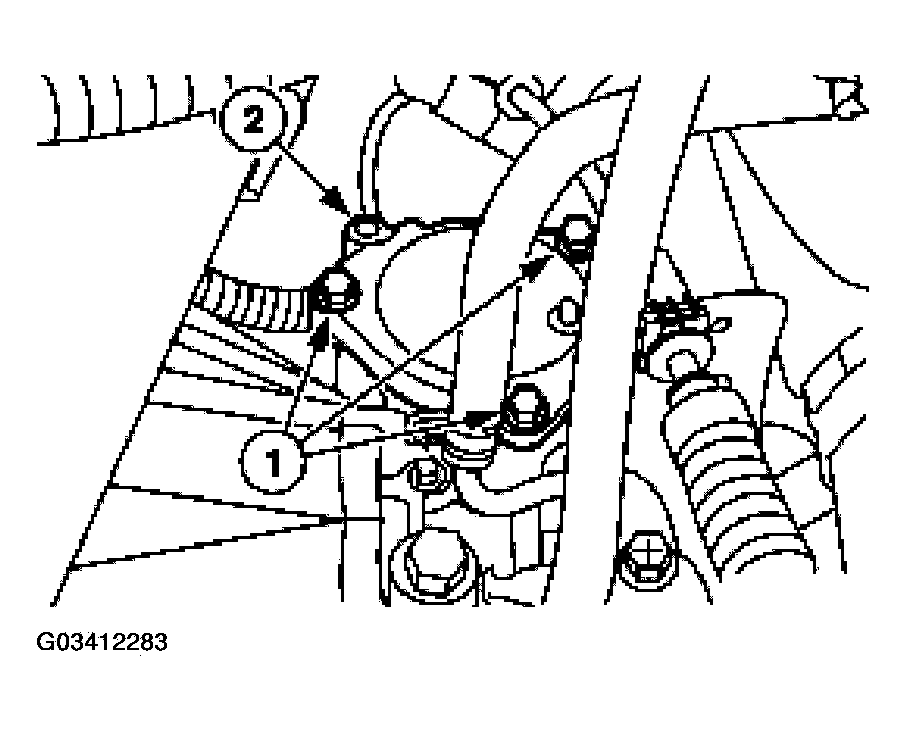

      Fig 2: Removing Bolts
      G03412283Courtesy of FORD MOTOR CO.
  6. Remove the second apply piston assembly.

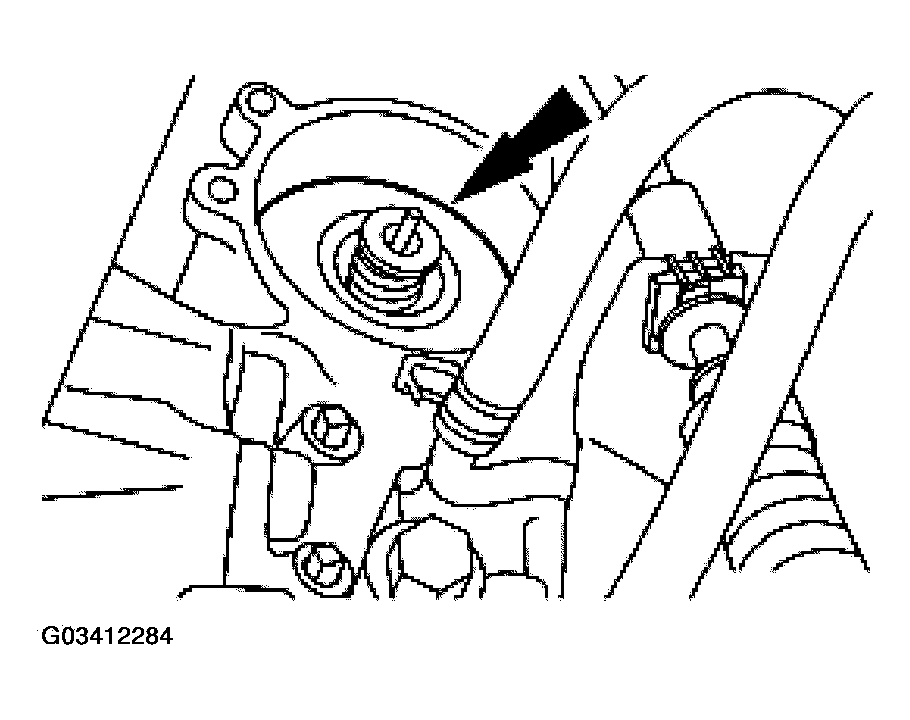

    Fig 3: Removing Second Apply Piston Assembly
    G03412284Courtesy of FORD MOTOR CO.
