Output Shaft Speed (OSS) Sensor: Removal

  1. Disconnect the battery ground cable.
  2. Remove the air cleaner assembly.
  3. Disconnect the output shaft speed sensor electrical connector.

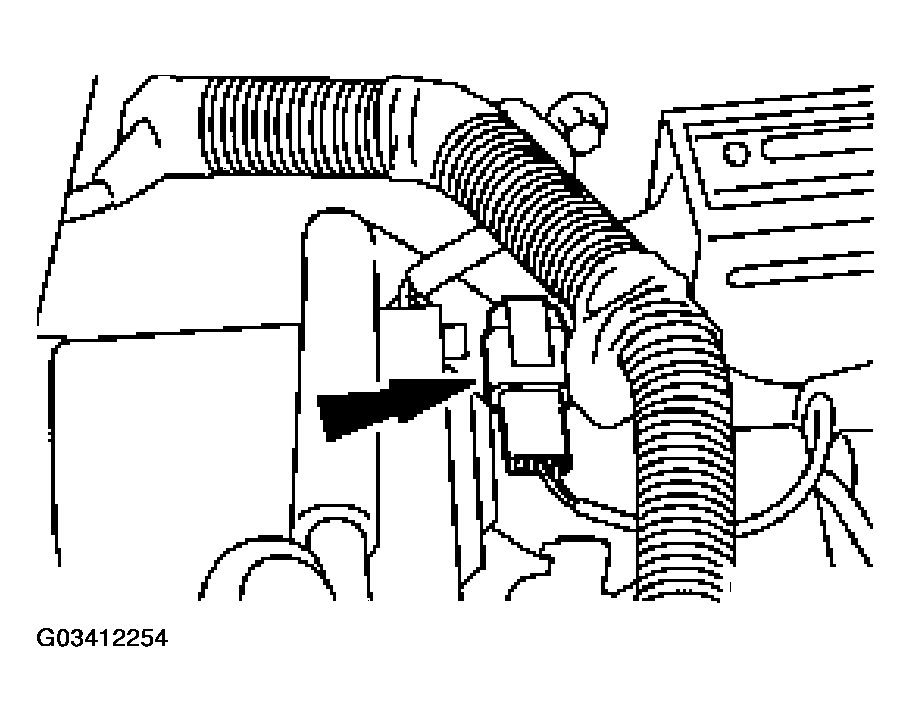

    Fig 1: Disconnecting Output Shaft Speed Sensor Electrical Connector
    G03412254Courtesy of FORD MOTOR CO.
  4. Raise and support the vehicle. .
  5. Remove the LH wheel and tire assembly.
  6. Remove the LH inner fender splash shield bolt.

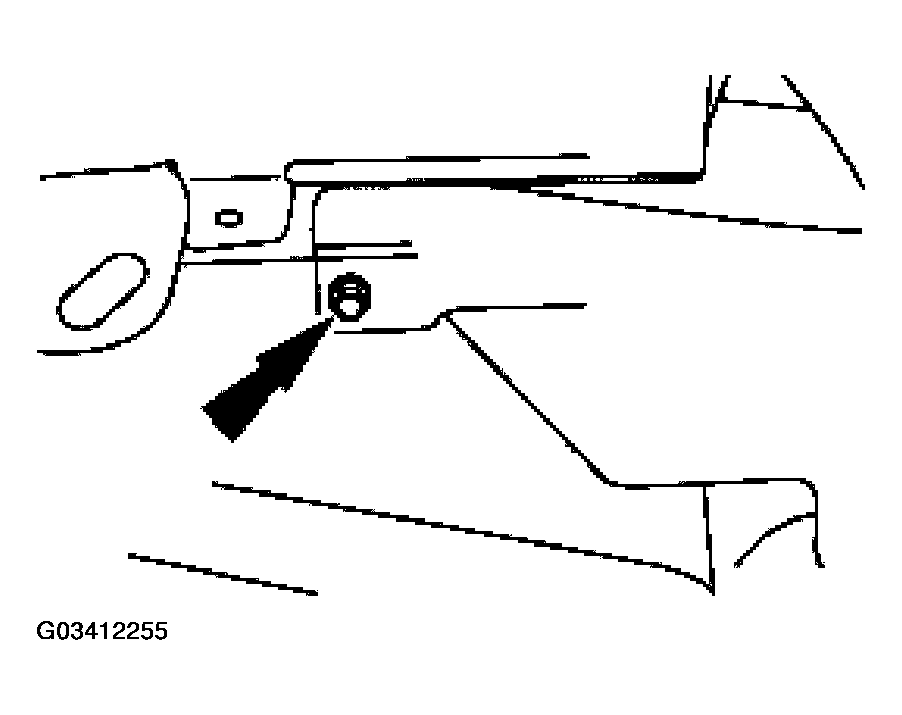

    Fig 2: Removing LH Inner Fender Splash Shield Bolt
    G03412255Courtesy of FORD MOTOR CO.
  7. Remove the LH inner fender splash shield.
    1. Remove the bolts.
    2. Remove the splash shield.

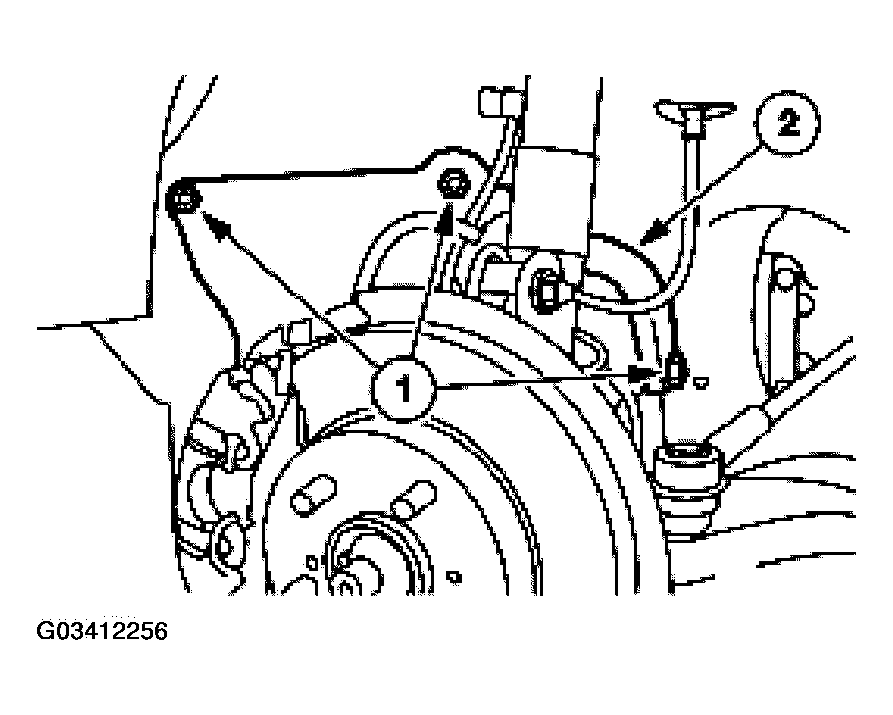

      Fig 3: Removing Bolts
      G03412256Courtesy of FORD MOTOR CO.
  8. Remove the output shaft speed sensor.
    1. Remove the bolt.
    2. Remove the sensor.

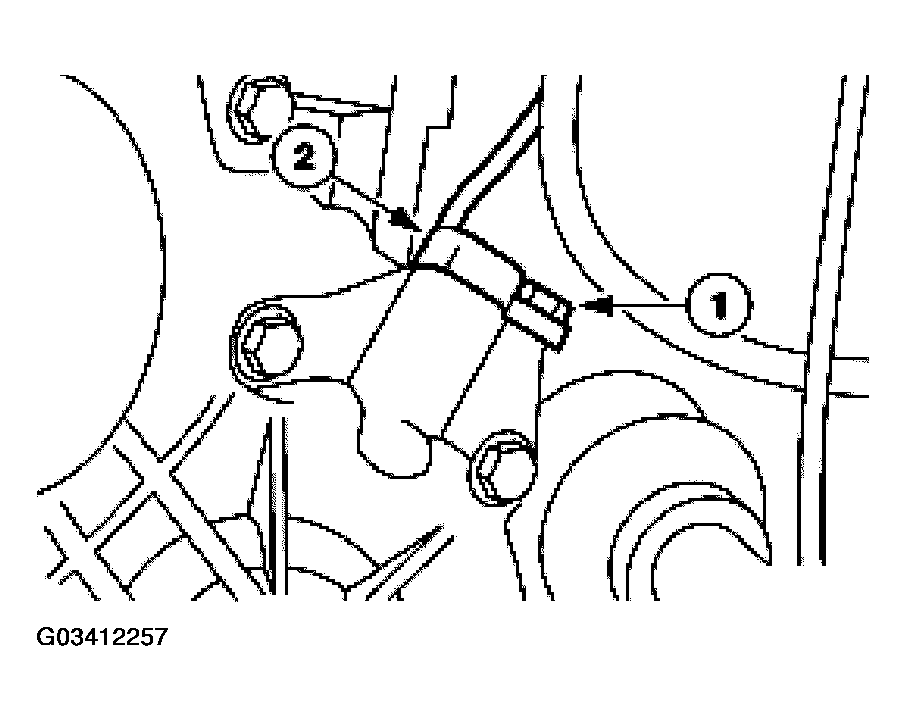

      Fig 4: Removing Output Shaft Speed Sensor
      G03412257Courtesy of FORD MOTOR CO.
