Shift Solenoids (SS): Installation

  1. Install new O-rings on the solenoids.

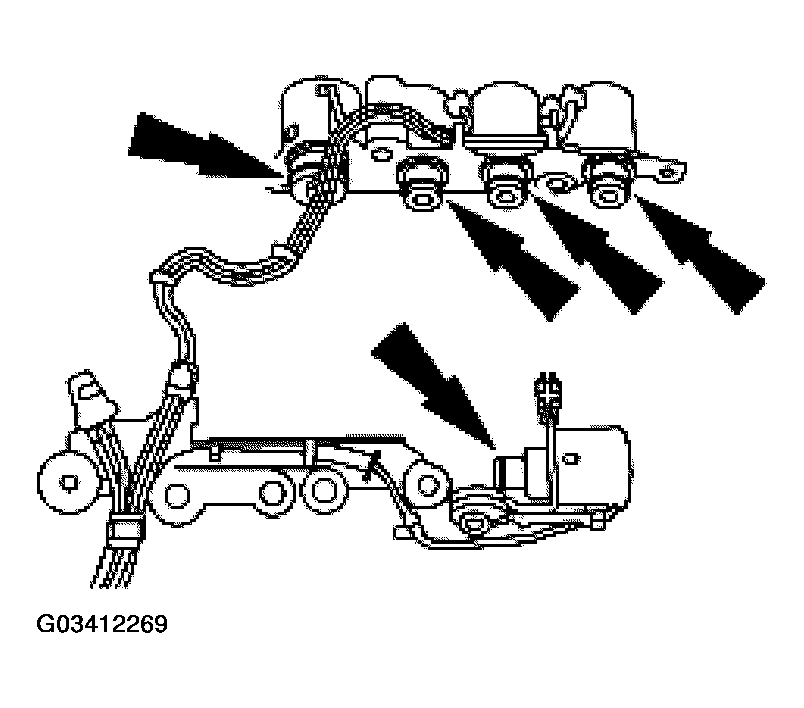

    Fig 1: Installing O-Rings On The Solenoids
    G03412269Courtesy of FORD MOTOR CO.
  2. Install the valve body solenoids.
    1. Position the solenoids.
    2. Install the bolts.

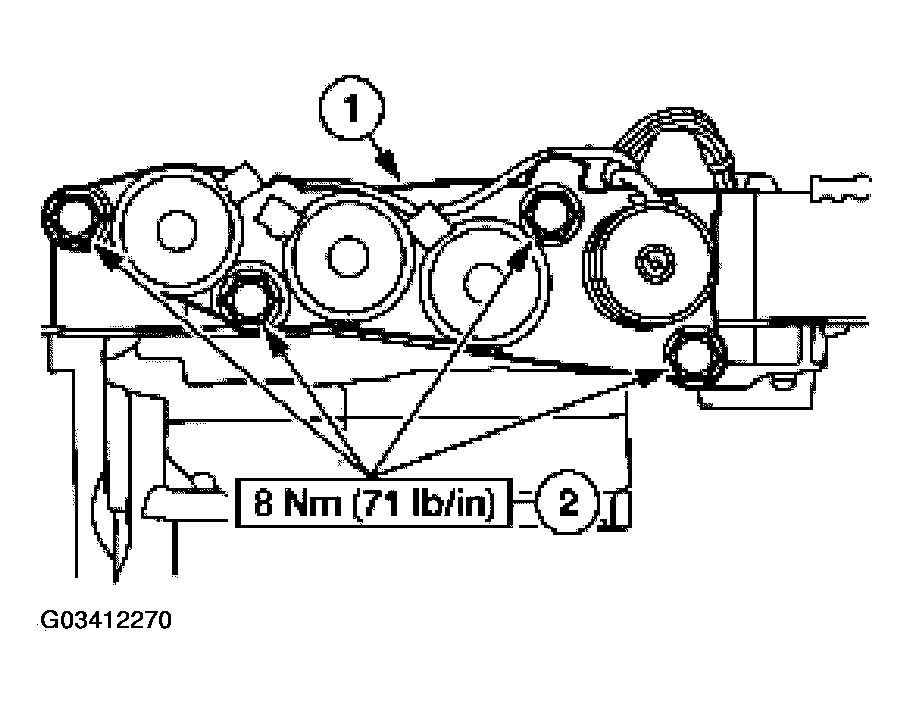

      Fig 2: Installing Valve Body Solenoids
      G03412270Courtesy of FORD MOTOR CO.
  3. Install the line pressure solenoid.
    1. Position the solenoid.
    2. Install the bolt.

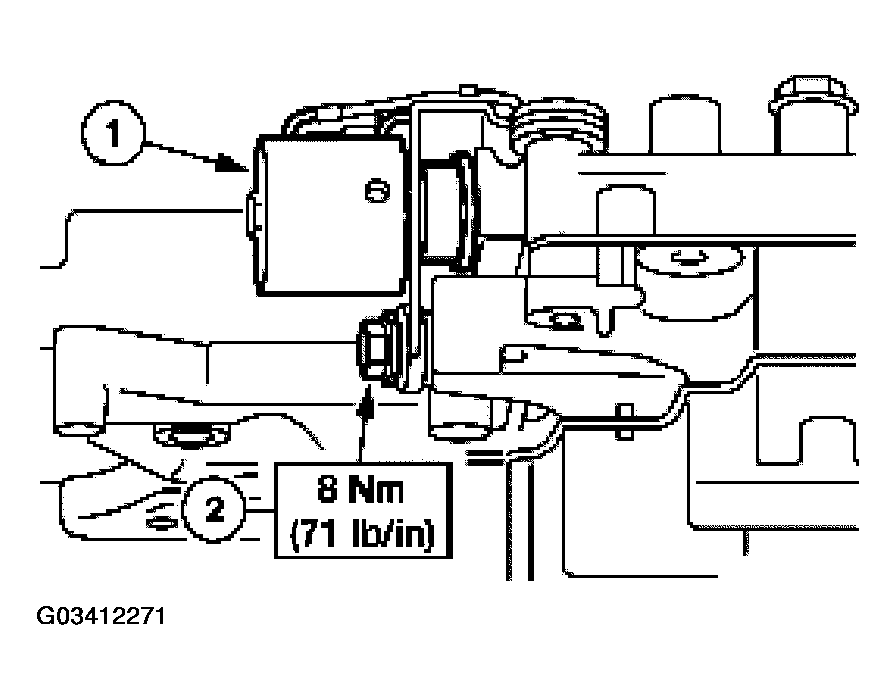

      Fig 3: Installing Bolt
      G03412271Courtesy of FORD MOTOR CO.
  4. Install the solenoid harness.
    1. Position the harness.
    2. Install the bolts.

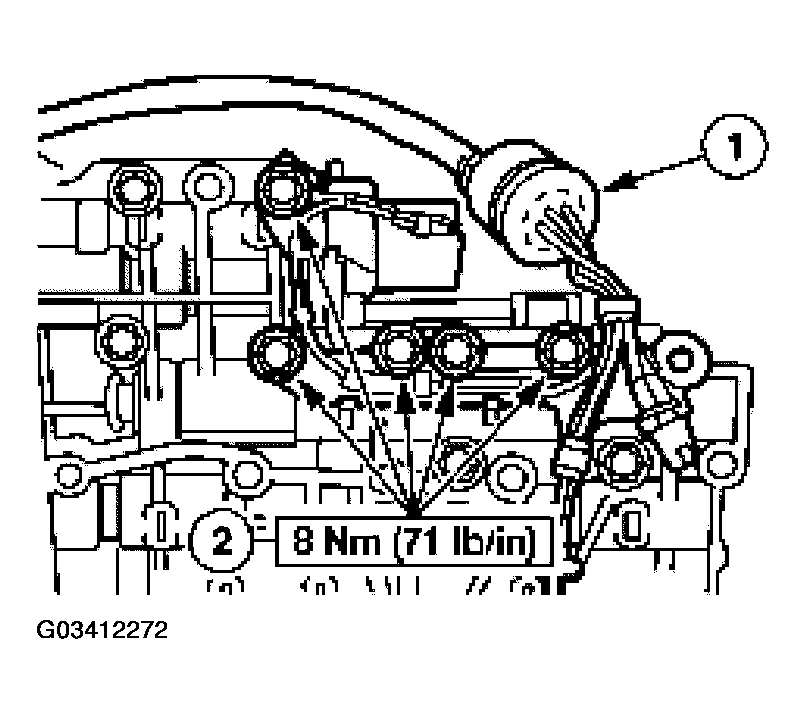

      Fig 4: Installing Solenoid Harness
      G03412272Courtesy of FORD MOTOR CO.
