Transaxle Support Insulator - Front: Installation

NOTE: The transaxle may need to be slightly lowered to install the support insulator.

Install the support insulator.

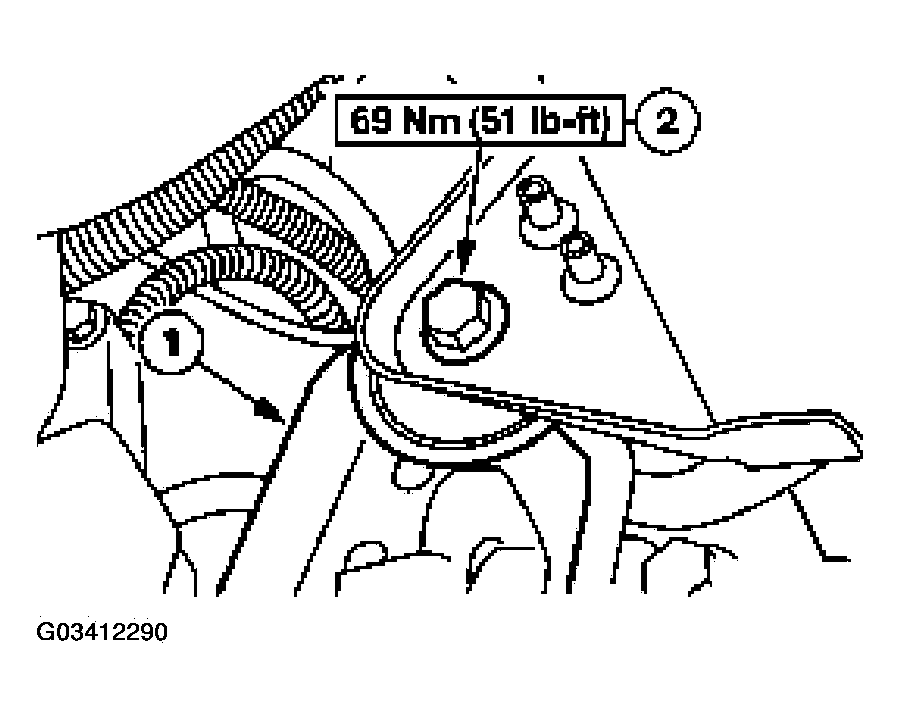

1. Install the support insulator.
2. Install the through bolt.

  Fig 1: Installing Through Bolt
  Courtesy of FORD MOTOR CO.

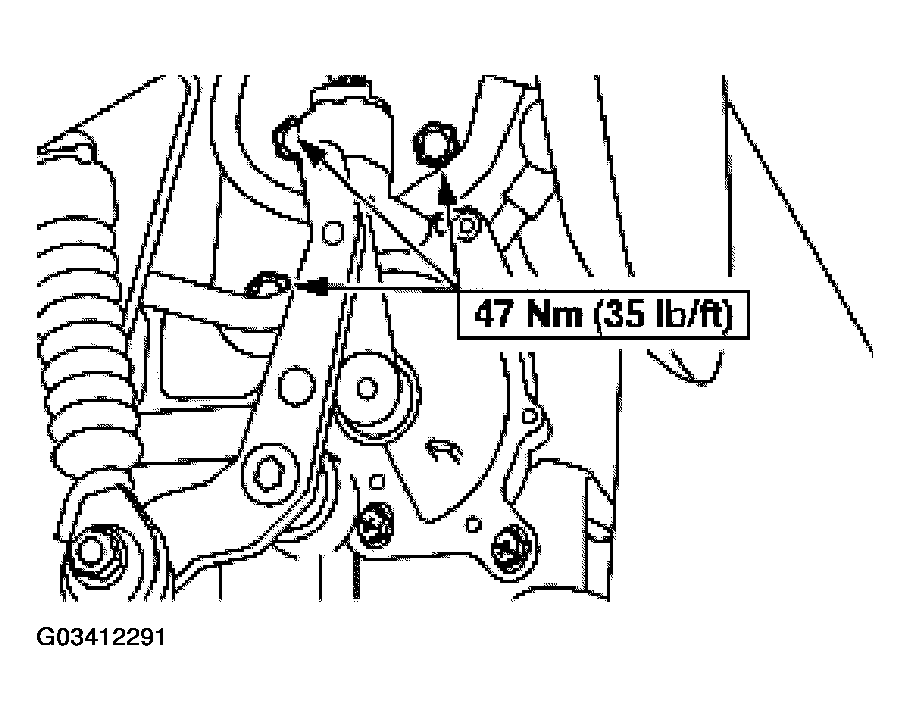

Install the front transaxle support insulator bolts.

Fig 2: Installing Front Transaxle Support Insulator Bolts
Courtesy of FORD MOTOR CO.
Remove the jack.
Install the engine splash shield.
