Transmission Control Module (TCM): Installation

    NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

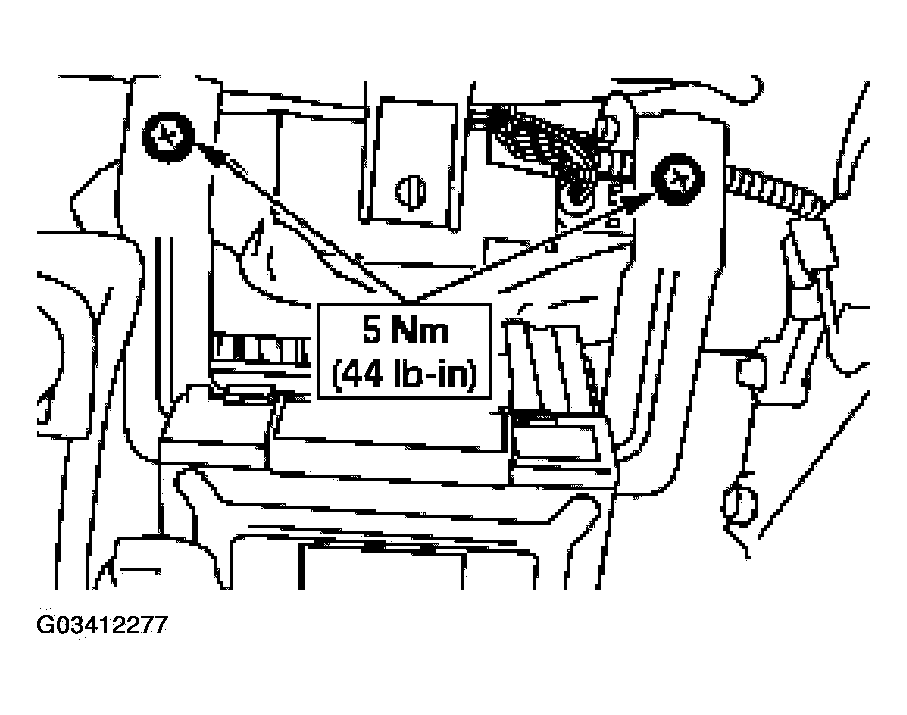

    Fig 1: Removal Procedure
    G03412277Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
