Transmission Control Module (TCM): Removal

  1. Disconnect the battery ground cable.
  2. Disconnect the module electrical connectors.
    1. Disconnect the smart entry control/timer (SEC) timer module connectors.
    2. Disconnect the TCM connectors.

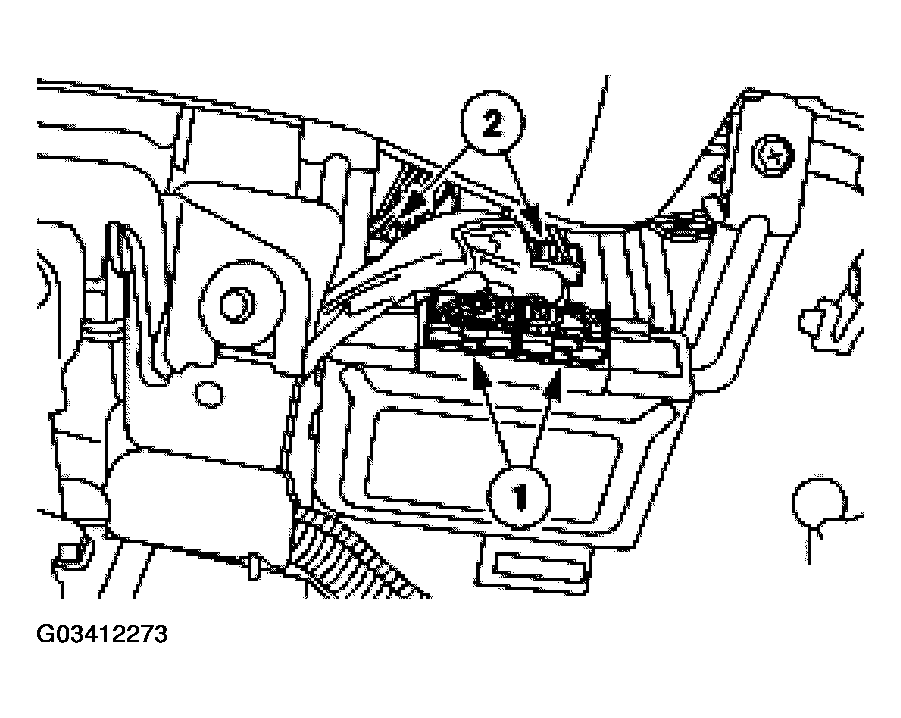

      Fig 1: Disconnecting TCM Connectors
      G03412273Courtesy of FORD MOTOR CO.
  3. Remove the TCM bracket bolts.

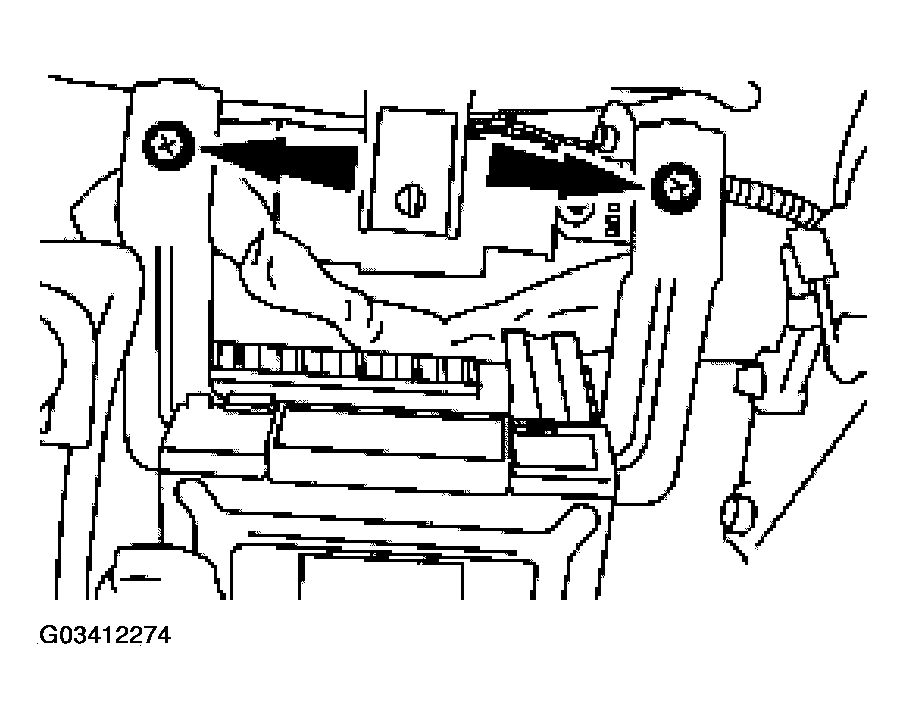

    Fig 2: Removing TCM Bracket Bolts
    G03412274Courtesy of FORD MOTOR CO.
  4. Remove the TCM/SEC Timer module assembly.
    • Disconnect the harness clip.

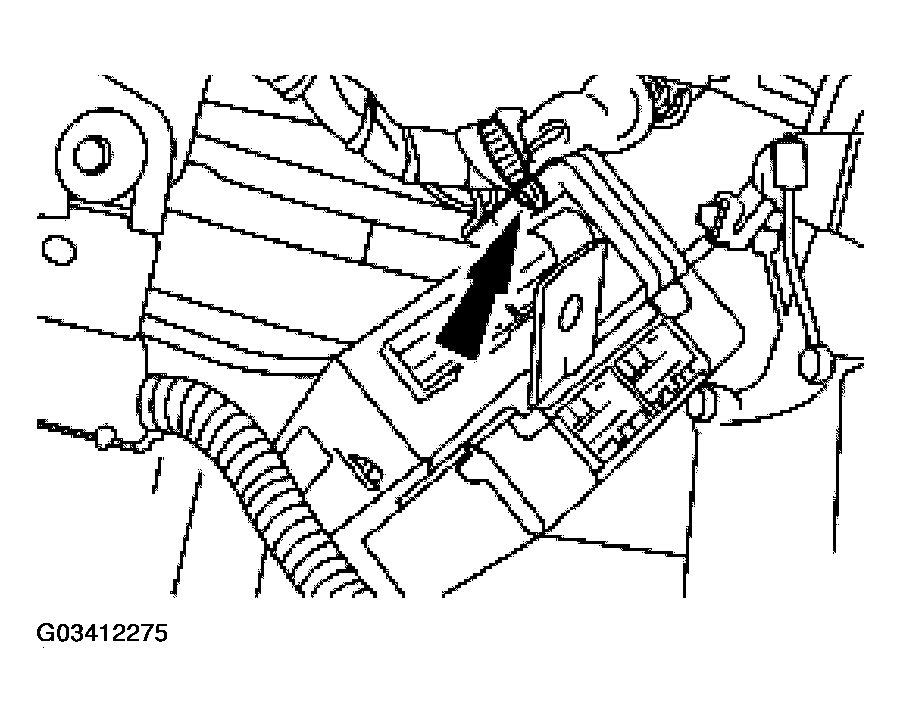

      Fig 3: Disconnecting Harness Clip
      G03412275Courtesy of FORD MOTOR CO.
  5. Remove the SEC timer module from the TCM.

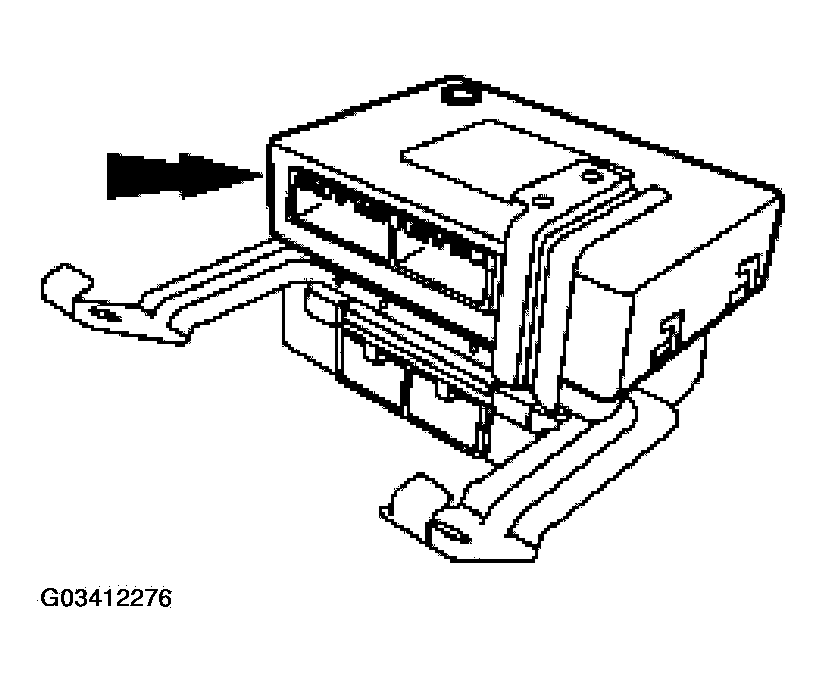

    Fig 4: Removing SEC Timer Module From TCM
    G03412276Courtesy of FORD MOTOR CO.
