Hydraulic Control Unit -Electronic: Removal

Disconnect the battery ground cable.
Remove the air cleaner outlet tube and air cleaner. .
Disconnect the electronic hydraulic control unit (EHCU) electrical connector.
1. Pull the electrical connector lock forward.
2. Lift the electrical connector to remove it from the EHCU.

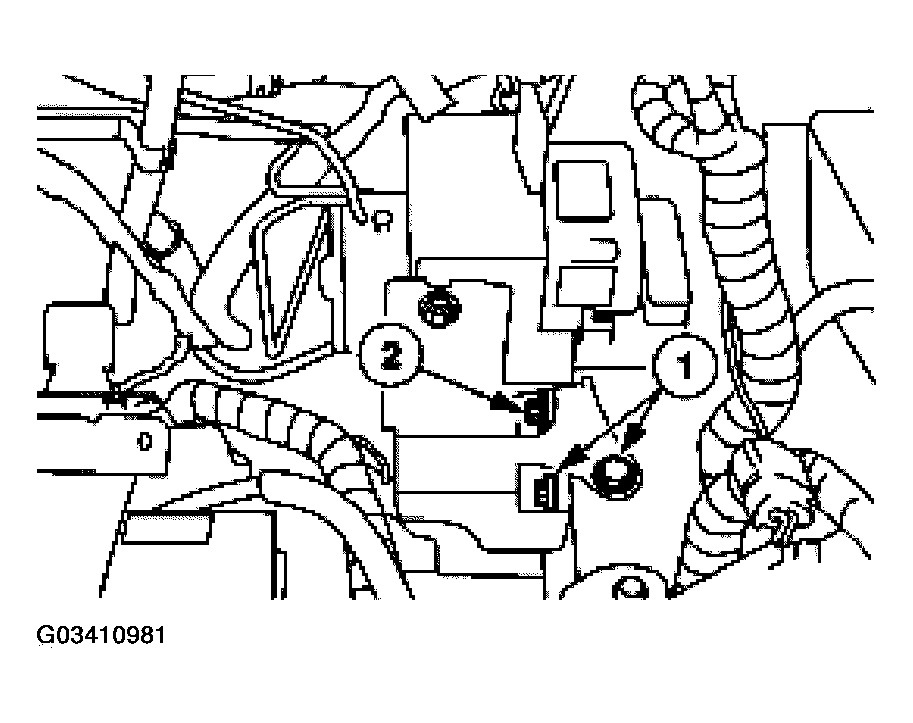

  Fig 1: Disconnecting Electronic Hydraulic Control Unit Electrical Connector
  Courtesy of FORD MOTOR CO.

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

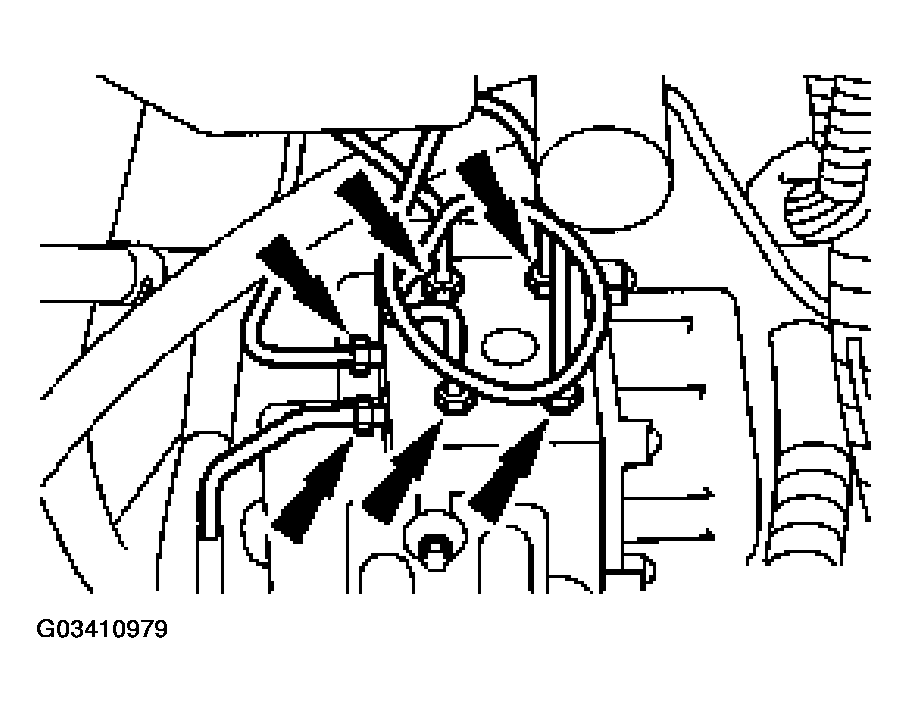

Fig 2: Disconnecting Brake Lines From EHCU

Courtesy of FORD MOTOR CO.

Disconnect the brake lines from the EHCU and cap them.
Disconnect the transaxle shift cable from the EHCU bracket.

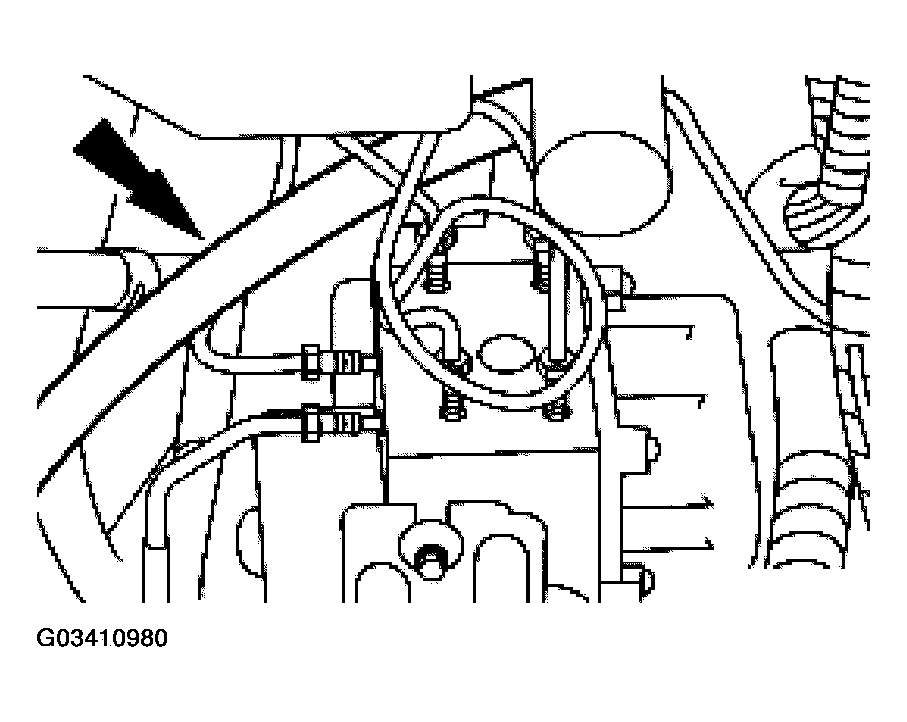

Fig 3: Disconnecting Transaxle Shift Cable From EHCU Bracket
Courtesy of FORD MOTOR CO.
Remove the EHCU assembly.
1. Remove the EHCU bracket bolts.
2. Loosen the EHCU bracket nut.

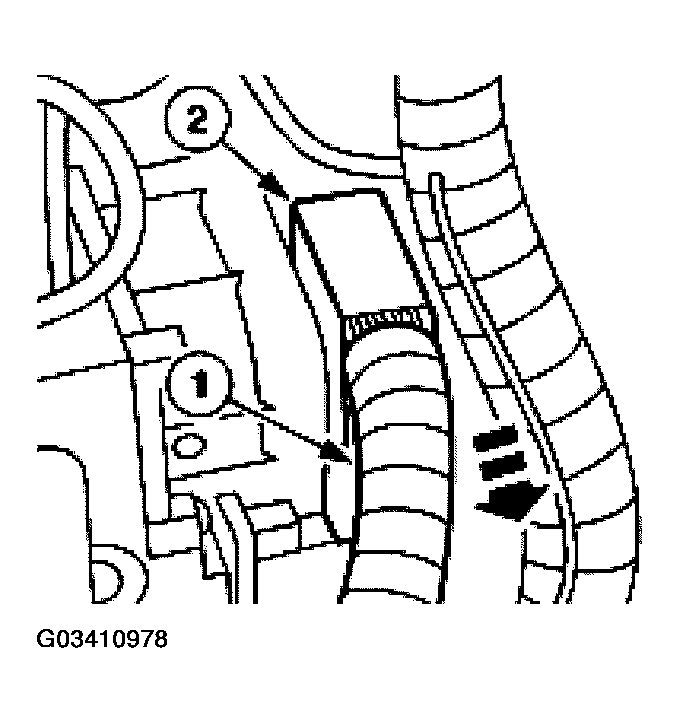

  Fig 4: Removing EHCU Assembly
  Courtesy of FORD MOTOR CO.
Remove the EHCU bracket from the EHCU.
1. Remove the nuts.
2. Remove the EHCU bracket.

  Fig 5: Removing EHCU Bracket From EHCU
  Courtesy of FORD MOTOR CO.
