Power Window Switches

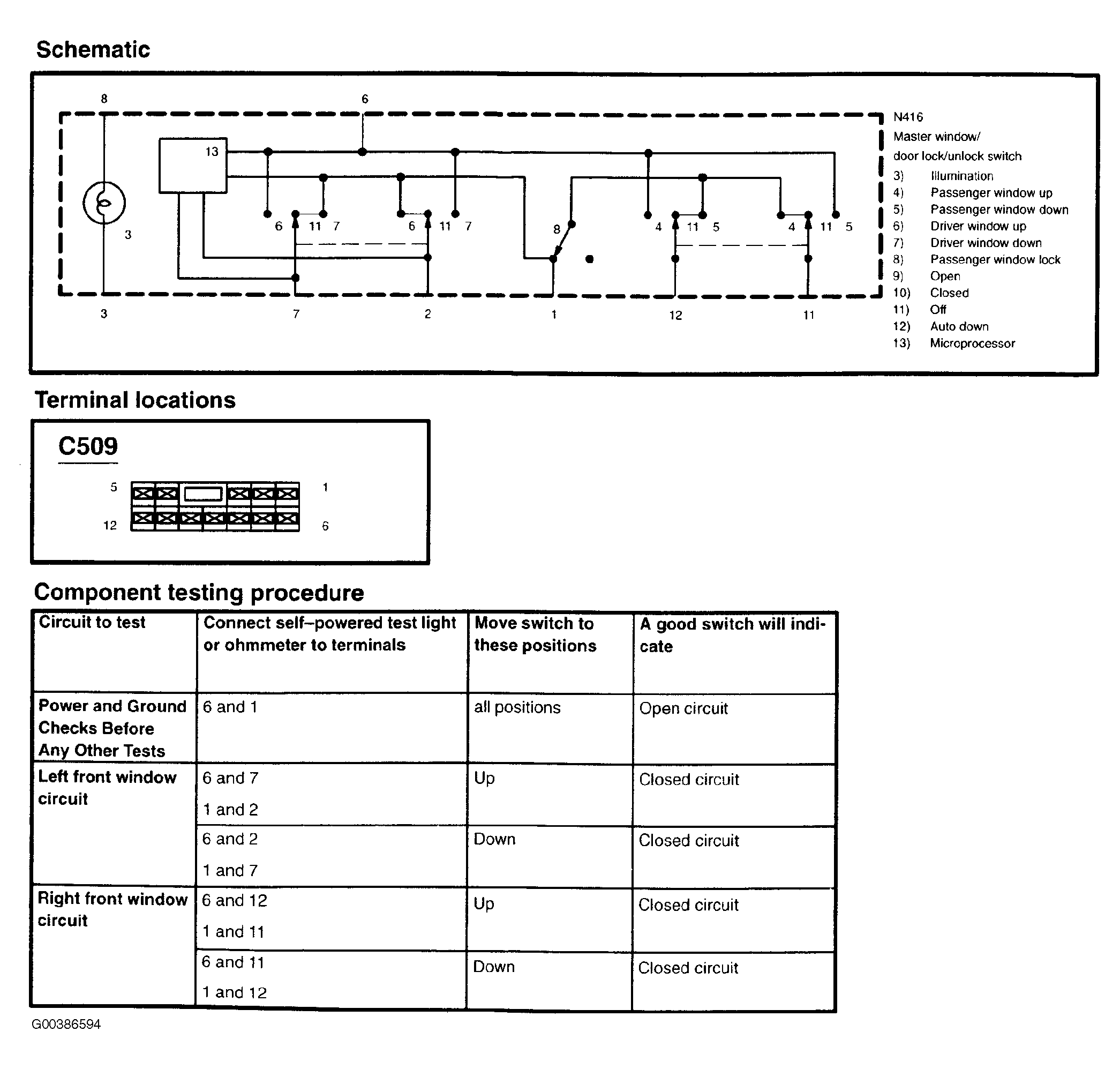

Fig 1: Testing Master Window/Door Lock/Unlock Switch - Front Power Windows

Courtesy of FORD MOTOR CO.

Fig 2: Testing Master Window/Door Lock/Unlock Switch - Front And Rear Power Windows (1 Of 2)

Courtesy of FORD MOTOR CO.

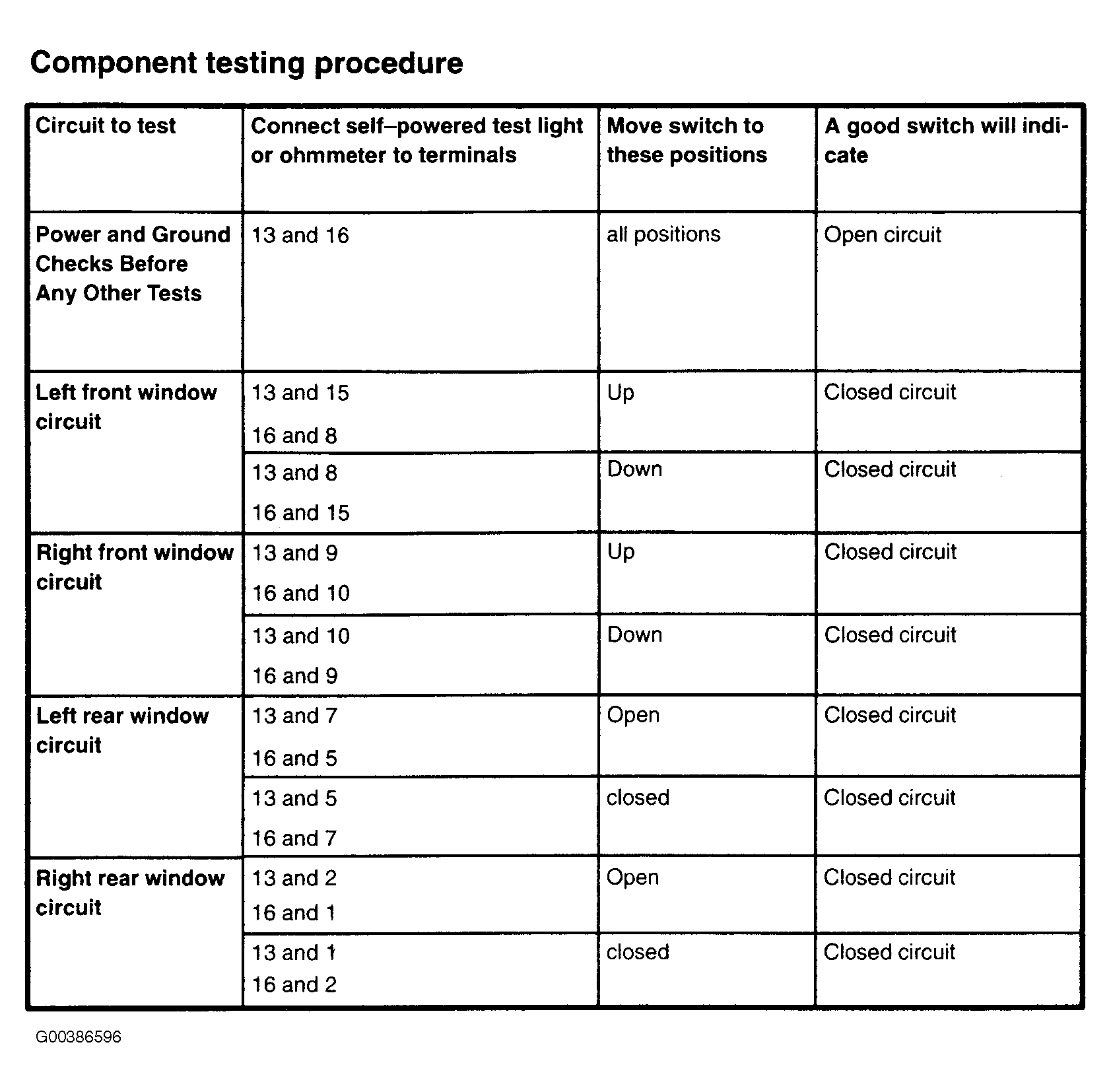

Fig 3: Testing Master Window/Door Lock/Unlock Switch - Front And Rear Power Windows (2 Of 2)

Courtesy of FORD MOTOR CO.

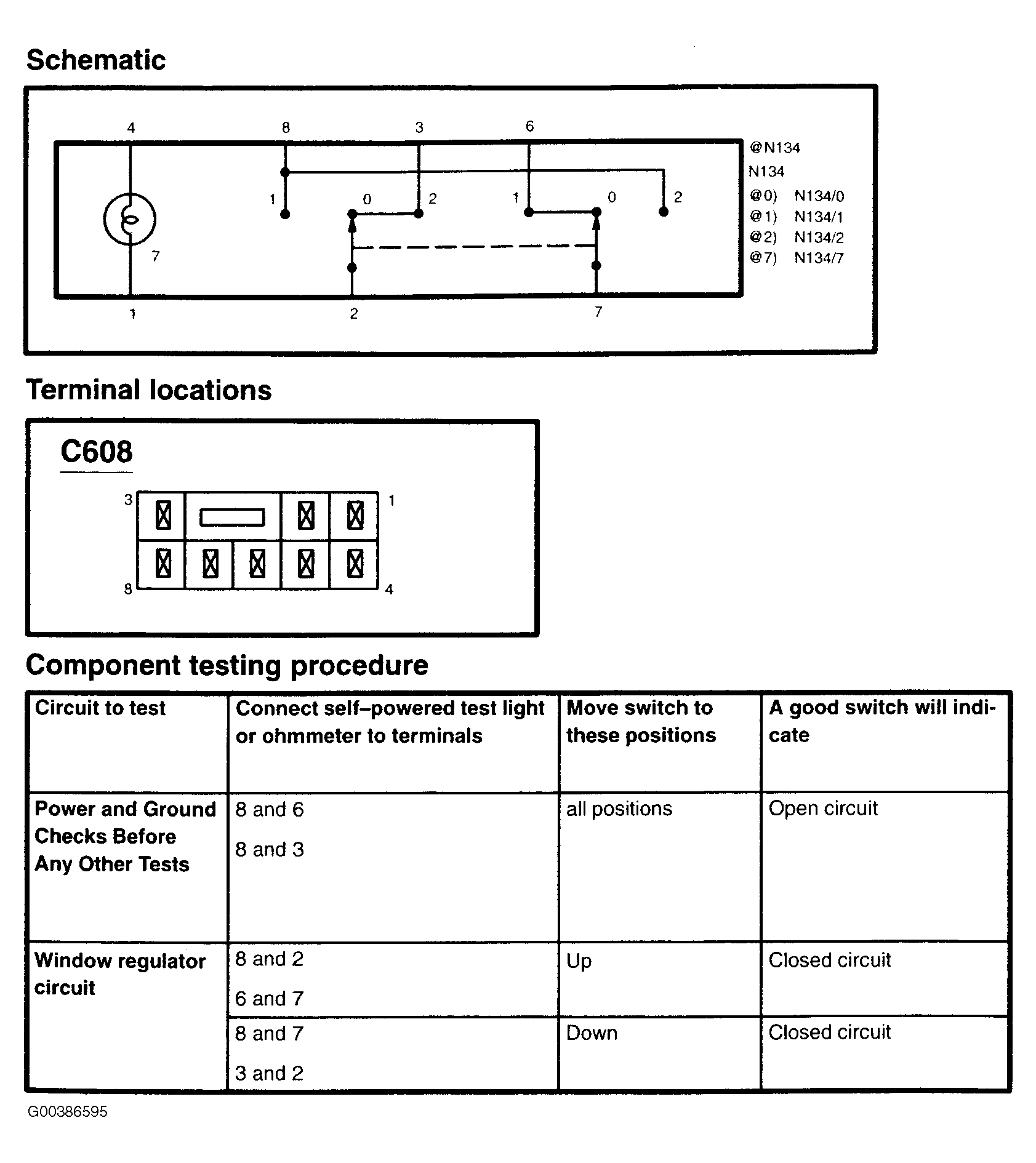

Fig 4: Testing Power Window Switch - Passenger Side

Courtesy of FORD MOTOR CO.

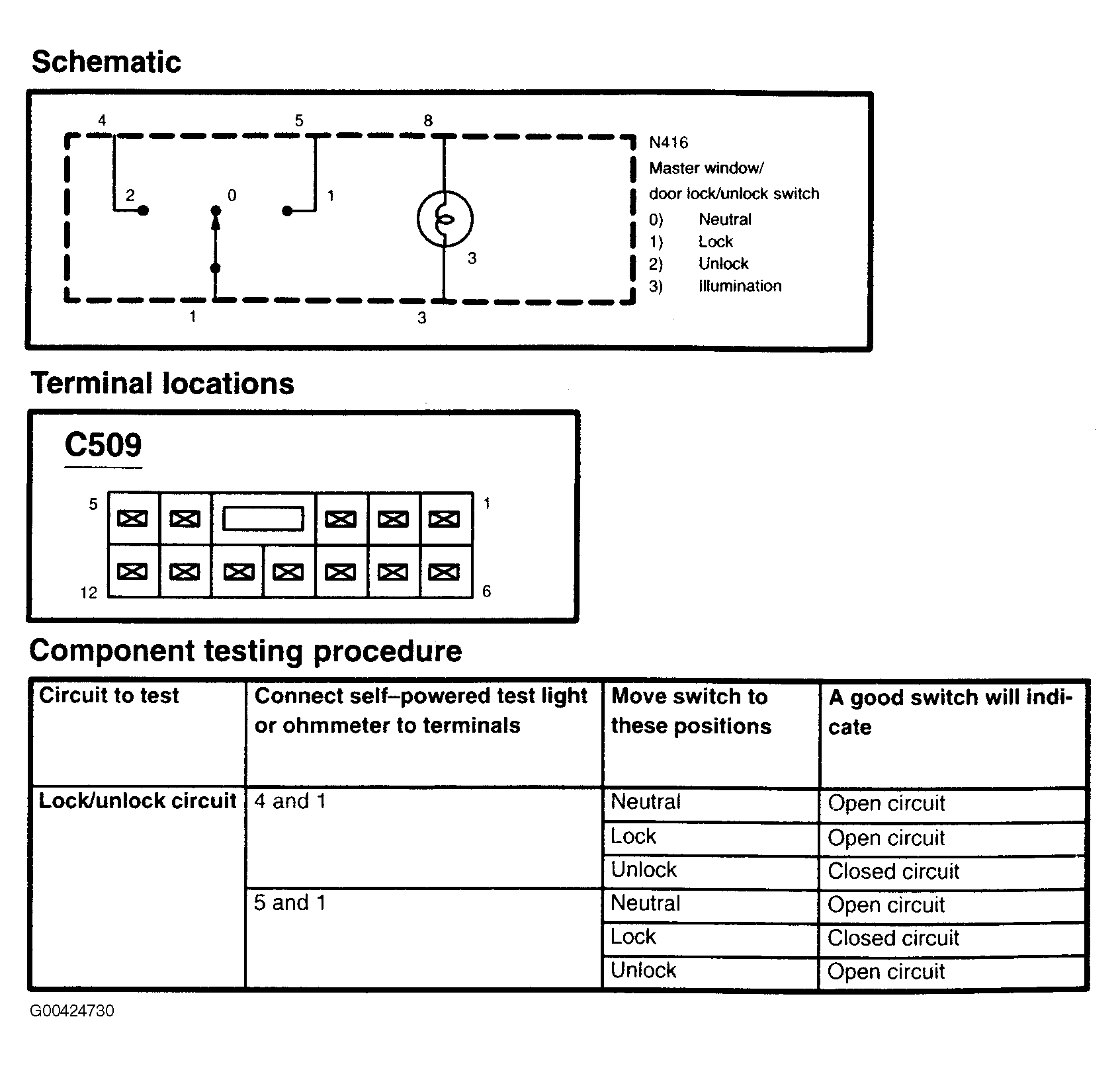

Fig 5: Testing Master Window/Door Lock/Unlock Switch - Front Power Windows

Courtesy of FORD MOTOR CO.

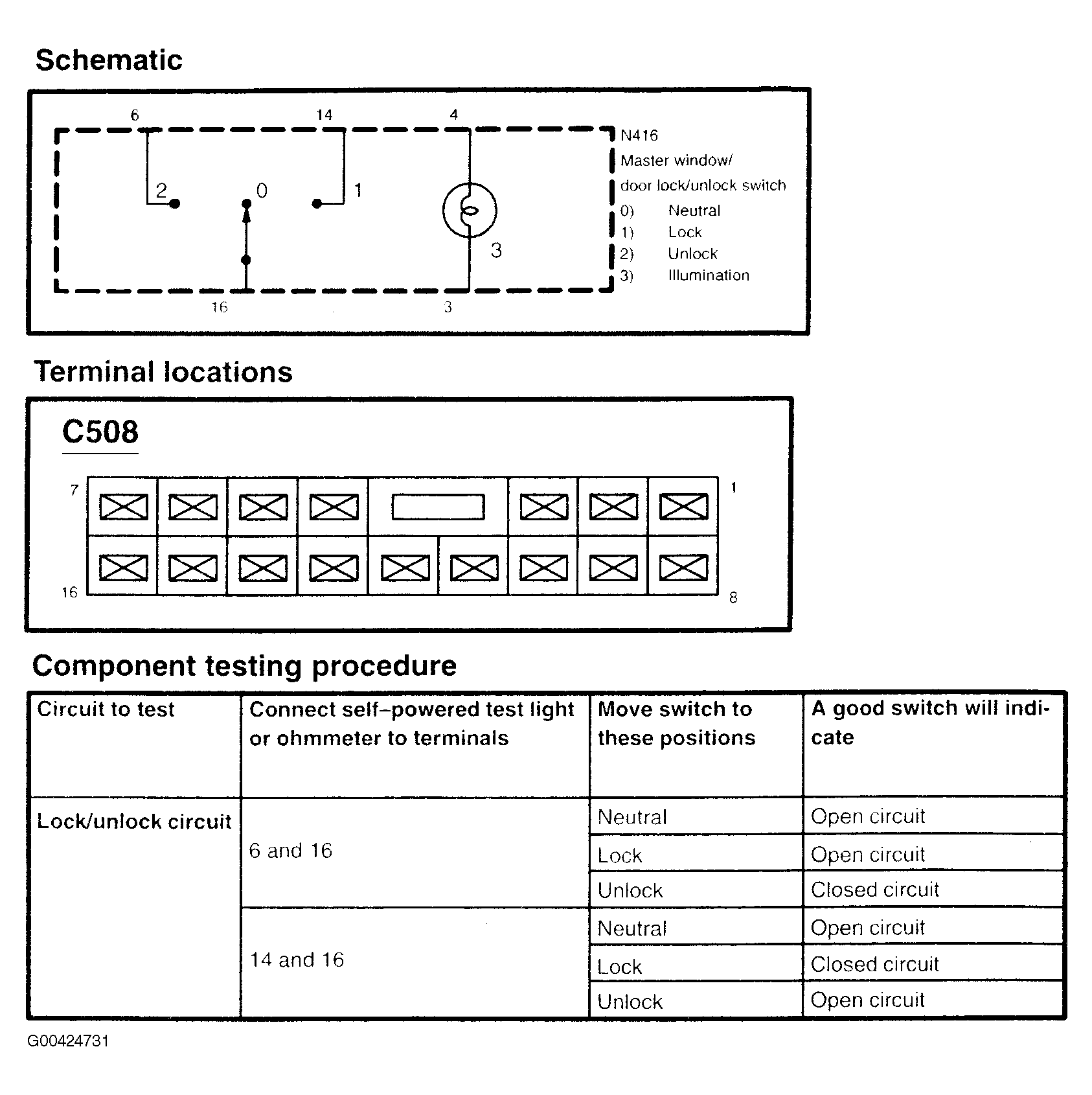

Fig 6: Testing Master Window/Door Lock/Unlock Switch - Front And Rear Windows

Courtesy of FORD MOTOR CO.

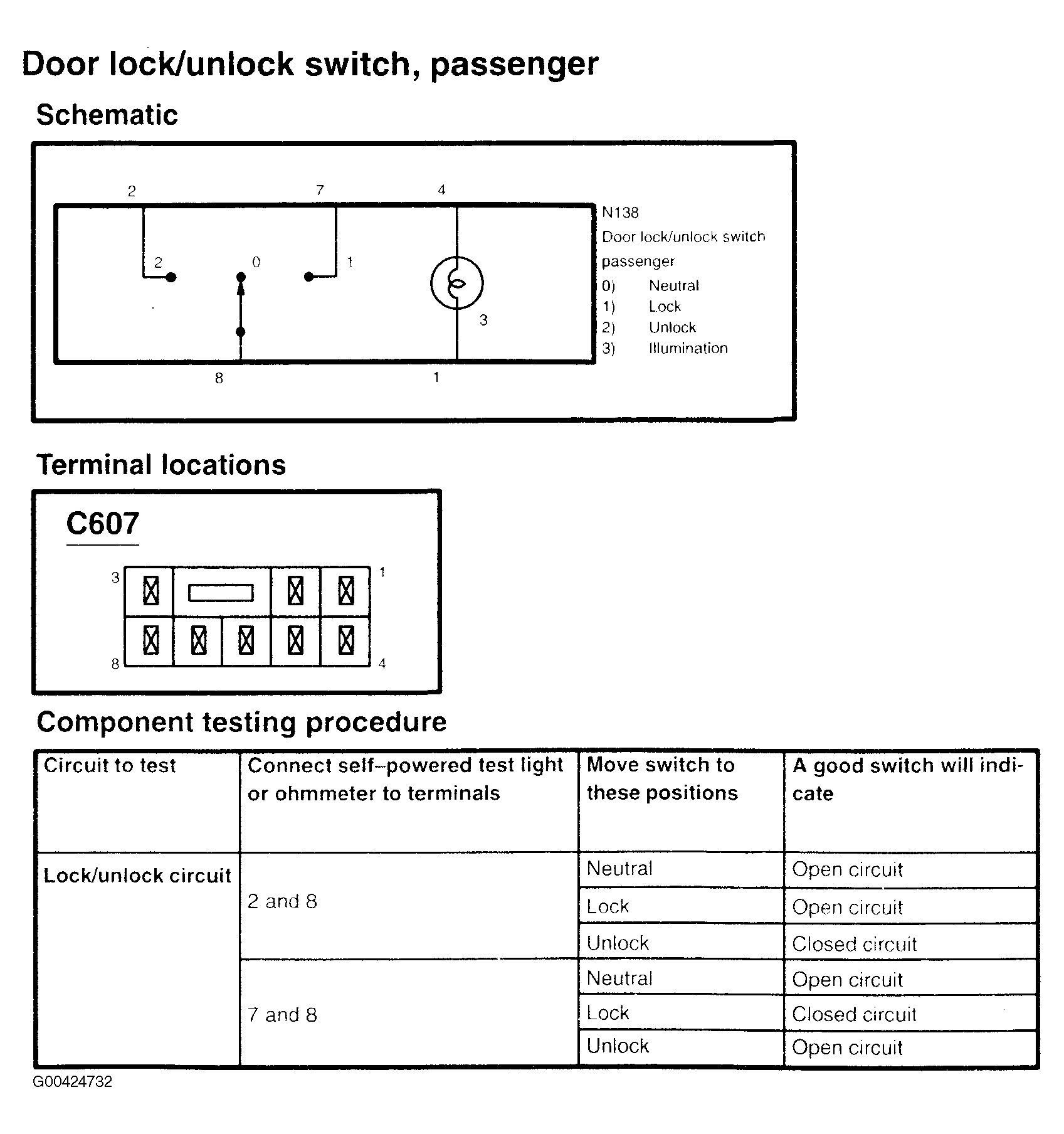

Fig 7: Testing Door Lock/Unlock Switch - Passenger

Courtesy of FORD MOTOR CO.
