Removal and Installation

Remove the front engine appearance cover (6A951) and the throttle return spring (9B569).
Disconnect the accelerator cable (9A758) from the throttle body lever.

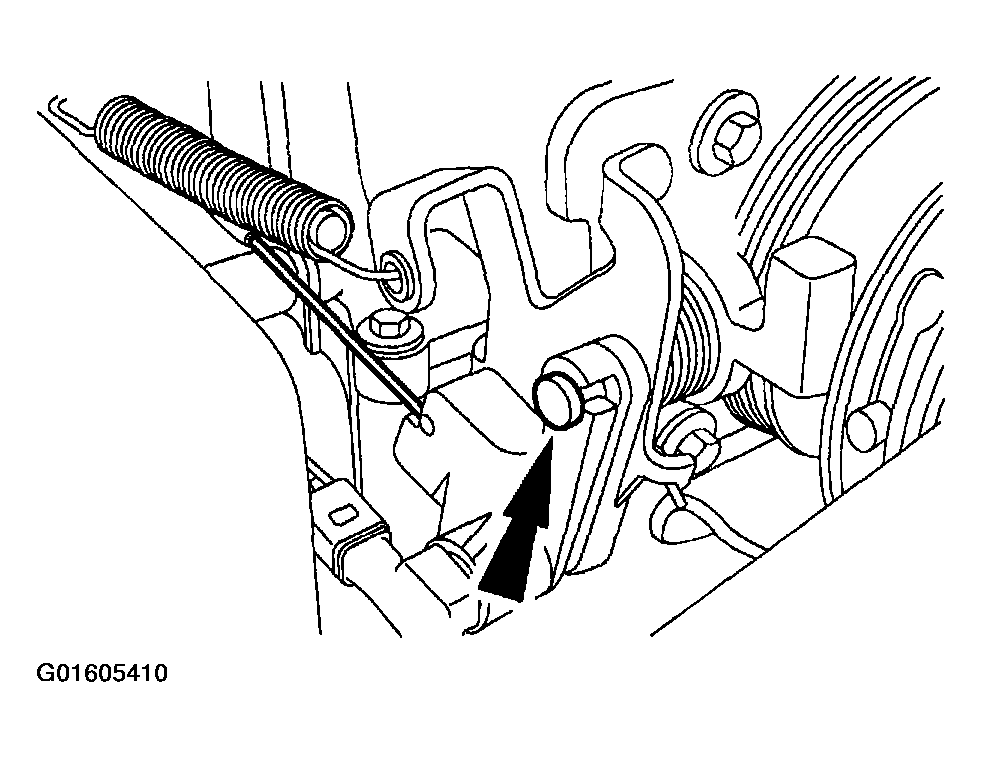

Fig 1: Disconnecting Accelerator Cable (9A758) From Throttle Body Lever
Courtesy of FORD MOTOR CO.
Remove the screw (cable to bracket) and remove the accelerator cable from the accelerator cable bracket (9728).

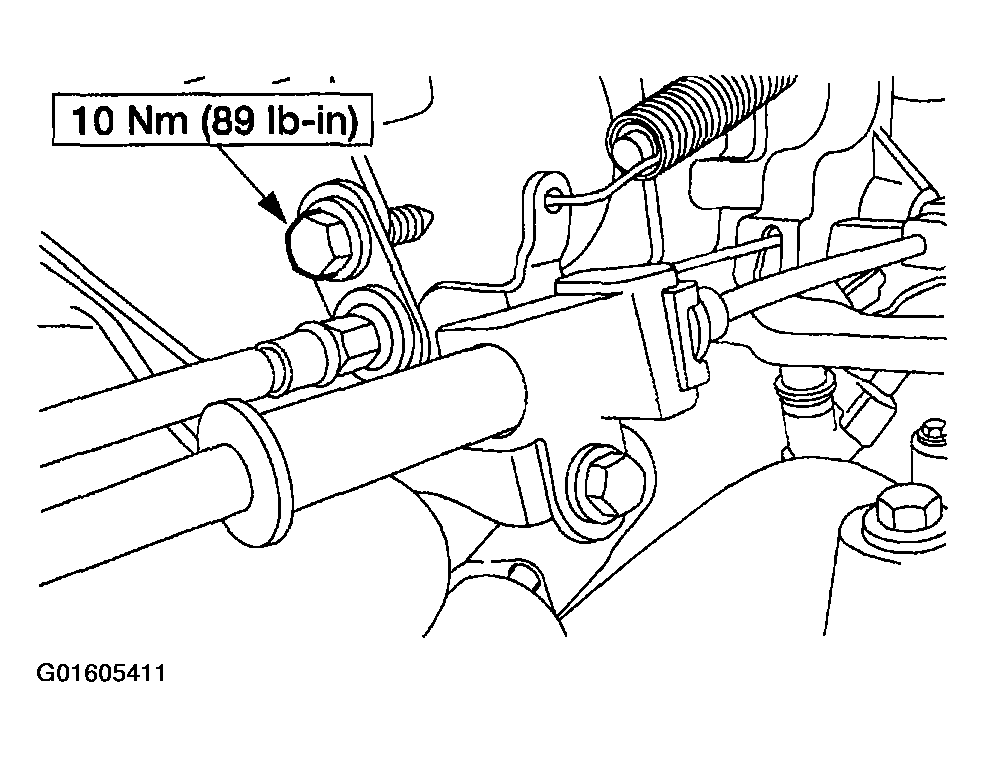

Fig 2: Removing Screw (Cable To Bracket)
Courtesy of FORD MOTOR CO.
Remove the accelerator cable from the clip.

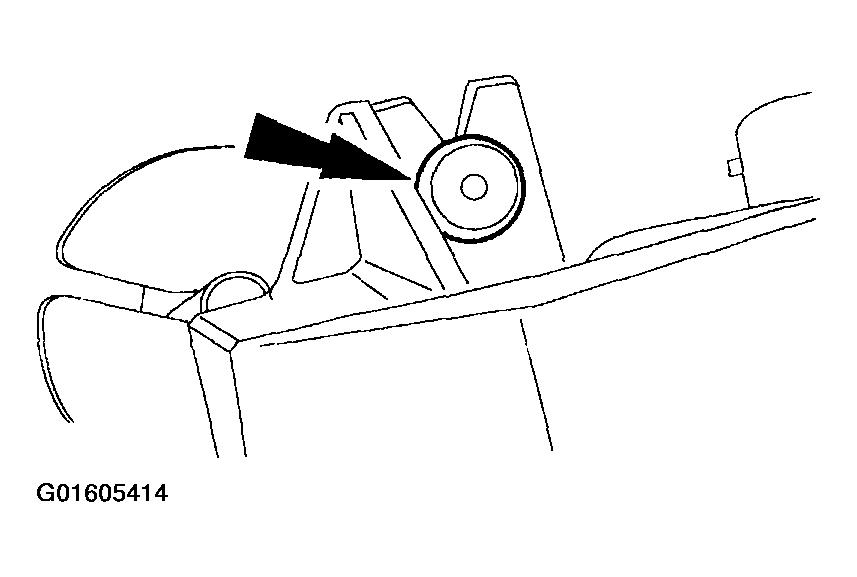

Fig 3: Removing Accelerator Cable From Clip
Courtesy of FORD MOTOR CO.
Remove the nuts.

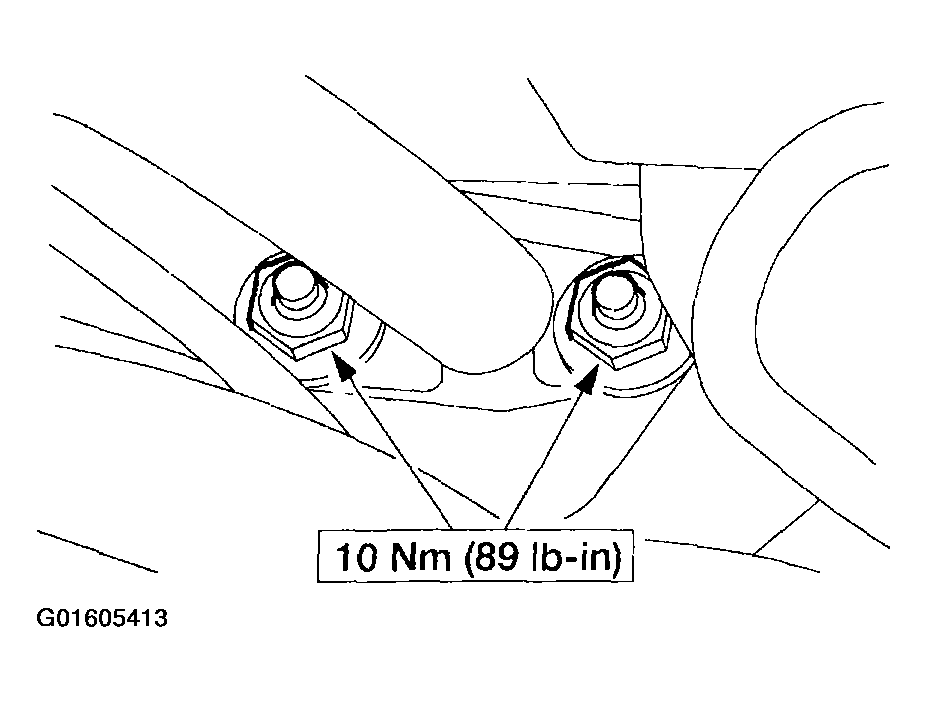

Fig 4: Removing Nuts
Courtesy of FORD MOTOR CO.

NOTE: Non-memory pedal shown, memory pedal similar.

Fig 5: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft (9725)

Courtesy of FORD MOTOR CO.

Disconnect the accelerator cable from the accelerator pedal and shaft (9725).
Remove the accelerator cable retainer (9E728).

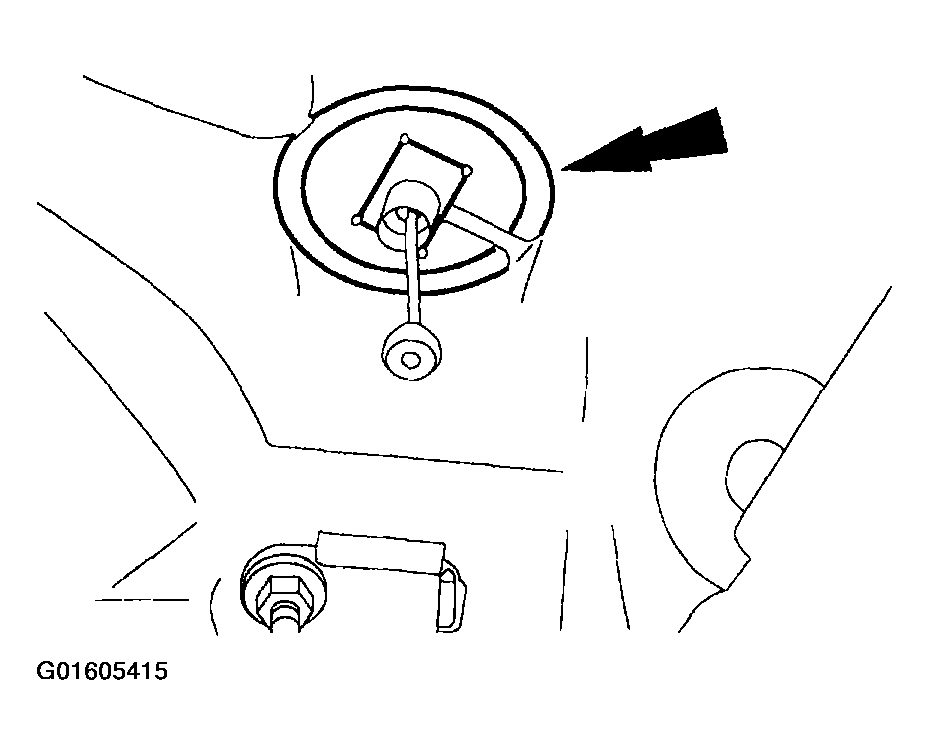

Fig 6: Removing Accelerator Cable Retainer (9E728)
Courtesy of FORD MOTOR CO.
Pull cable through the dash panel and remove from the vehicle.
To install, reverse the removal procedure.
