Removal and Installation

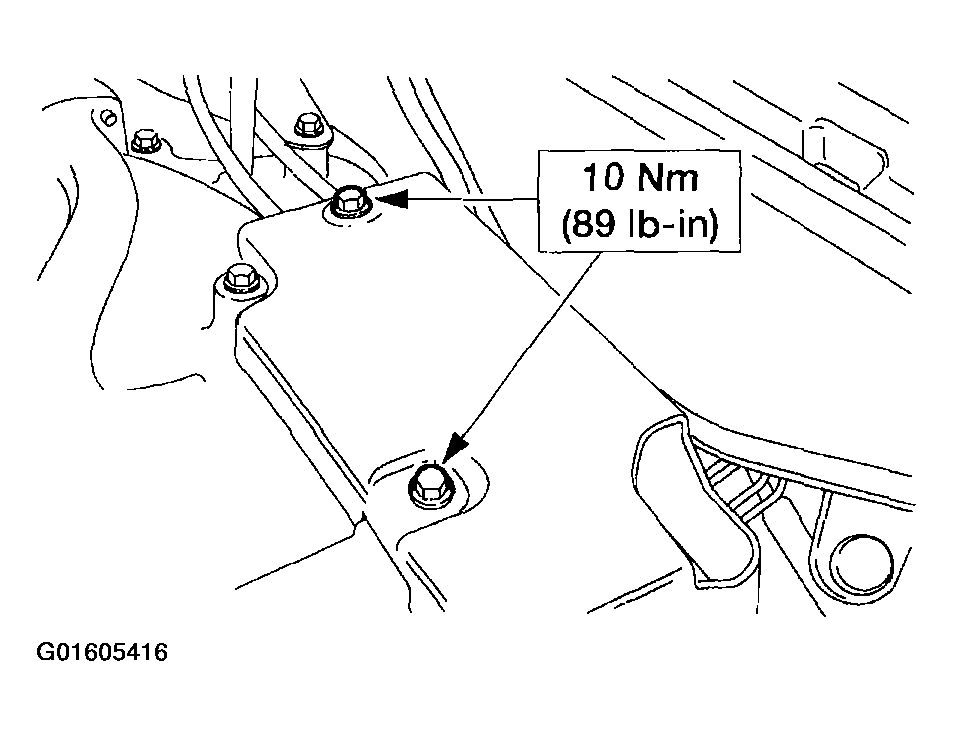

Remove the bolts and the accelerator splash shield.

Fig 1: Removing Accelerator Splash Shield Bolts
Courtesy of FORD MOTOR CO.

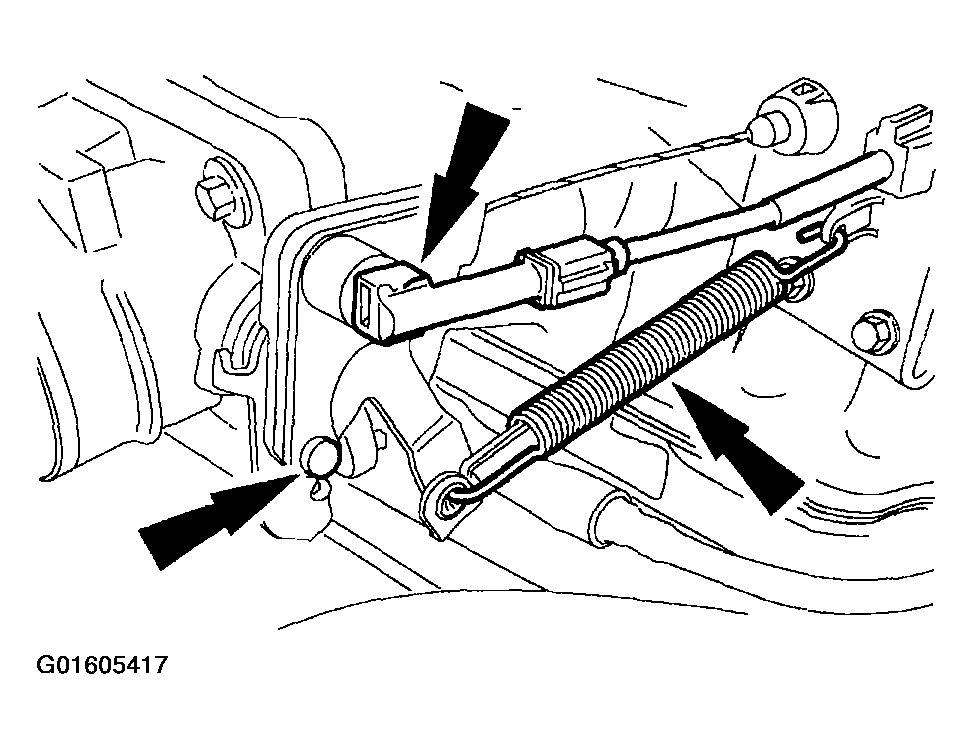

Remove the spring and disconnect the accelerator and speed control cables.

Fig 2: Identifying Spring, Accelerator And Speed Control Cables
Courtesy of FORD MOTOR CO.

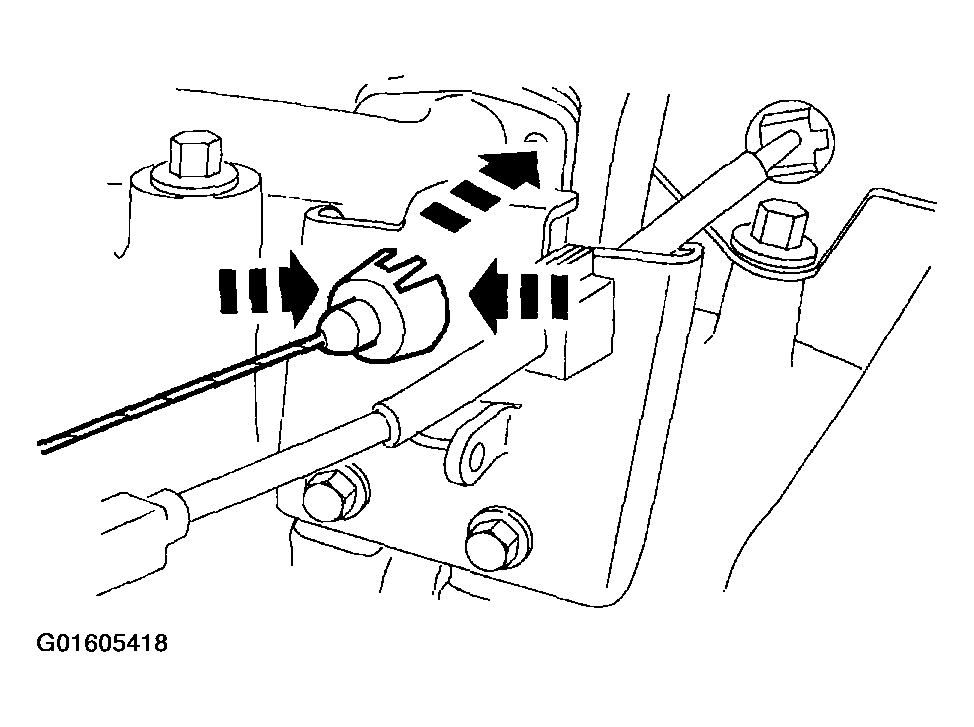

Disconnect the accelerator cable from the bracket.

Fig 3: Disconnecting Accelerator Cable From Bracket
Courtesy of FORD MOTOR CO.

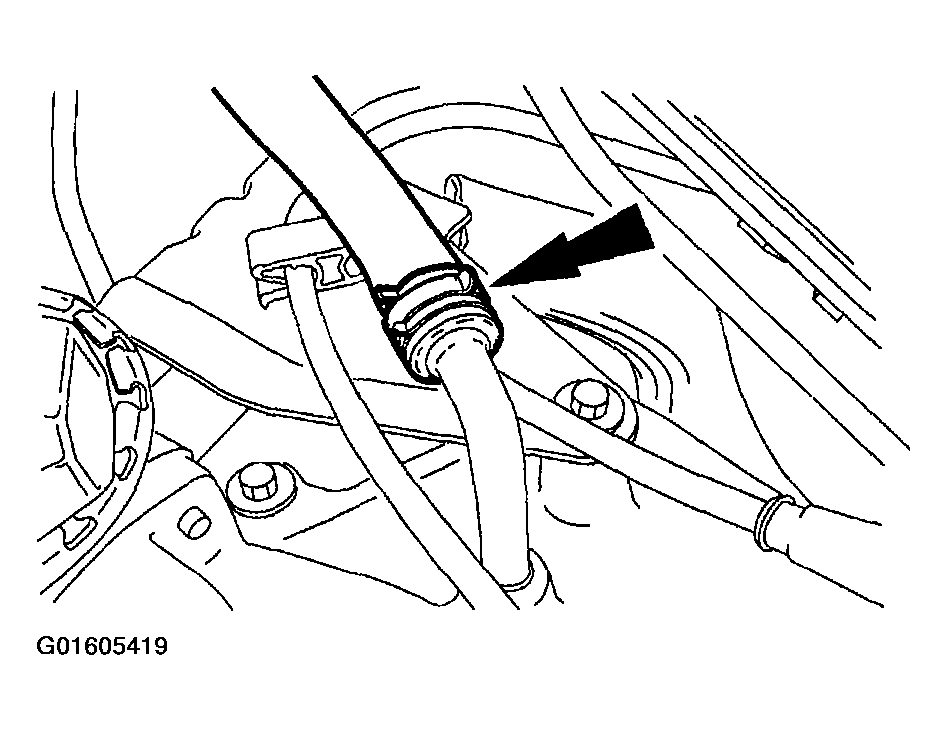

Disconnect the vacuum hose.

Fig 4: Disconnecting Vacuum Hose
Courtesy of FORD MOTOR CO.

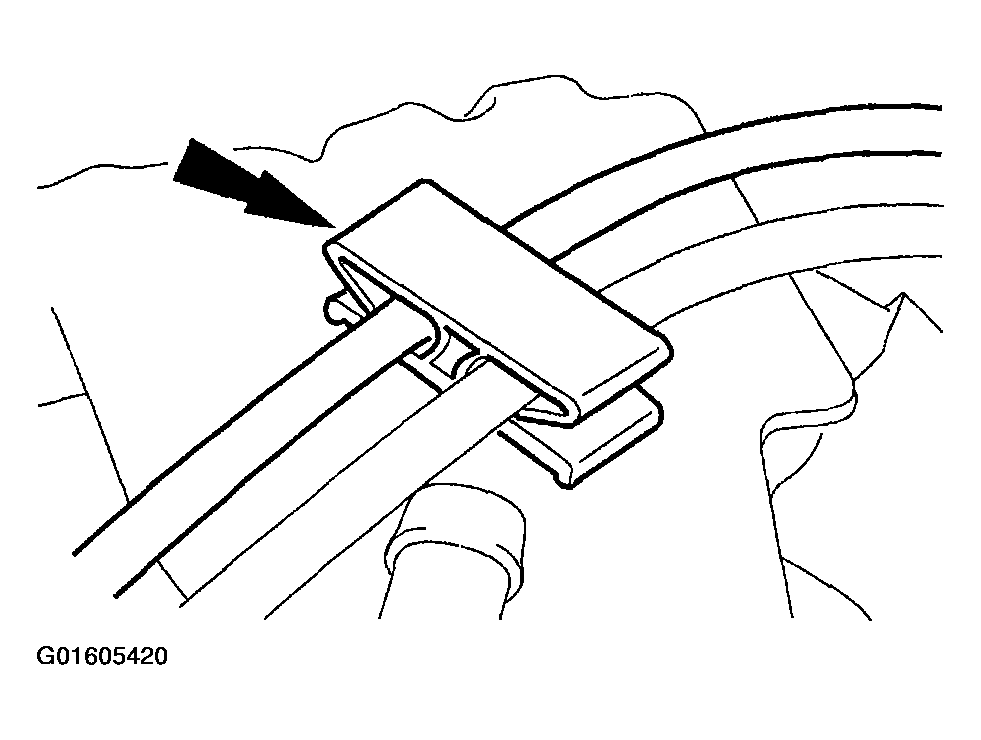

Disconnect the accelerator cable from the cable retainer.

Fig 5: Disconnecting Accelerator Cable From Cable Retainer
Courtesy of FORD MOTOR CO.

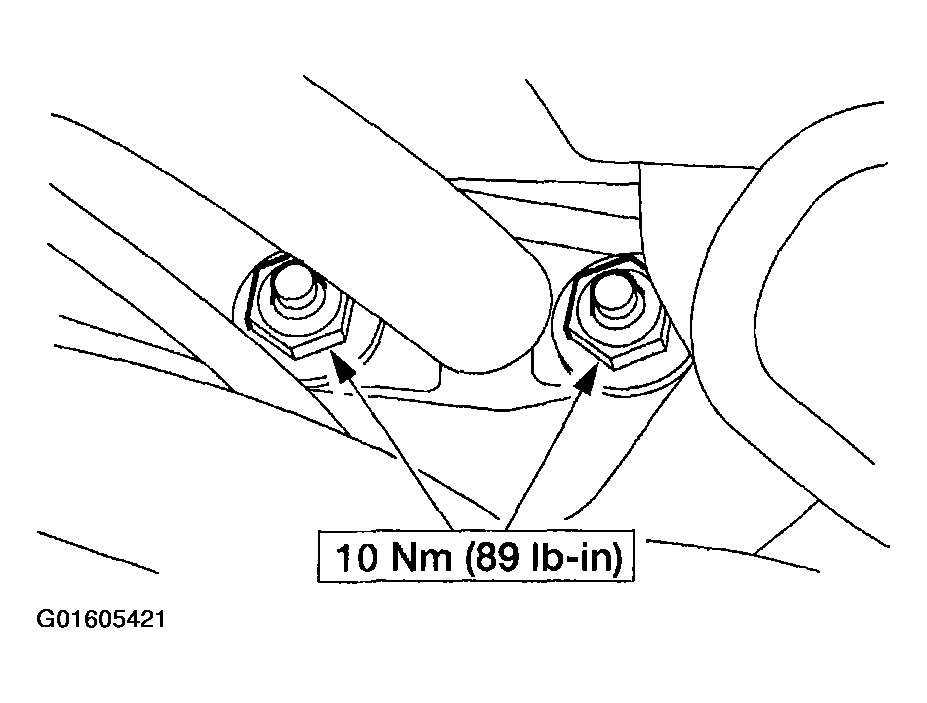

Remove the nuts.

Fig 6: Removing Nuts
Courtesy of FORD MOTOR CO.

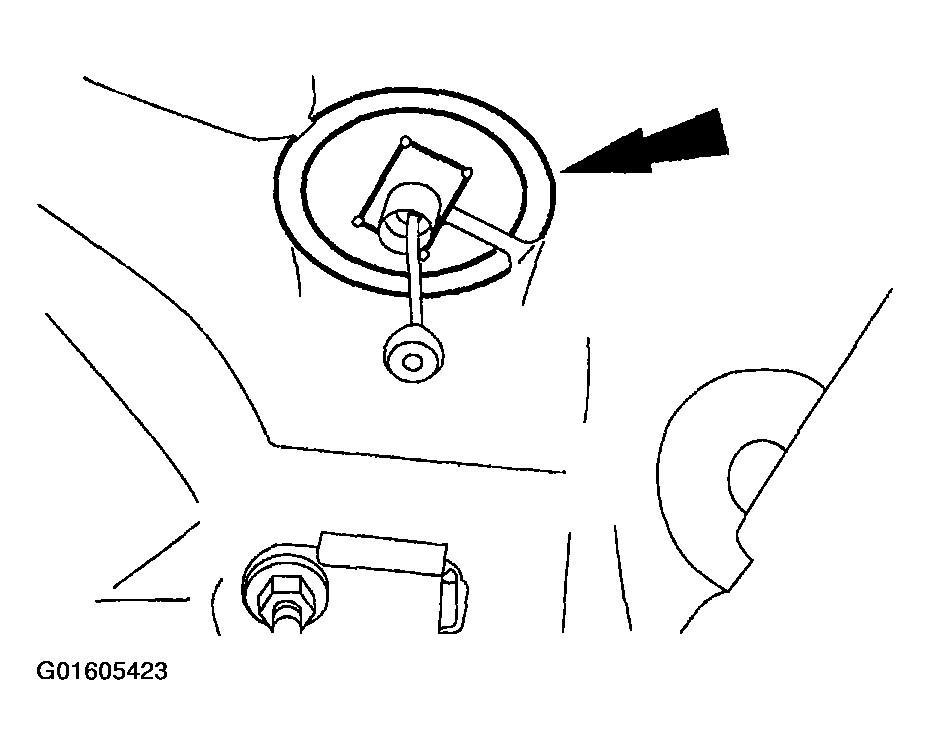

NOTE: Non-memory pedal shown, memory pedal similar.

Fig 7: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft

Courtesy of FORD MOTOR CO.

Disconnect the accelerator cable from the accelerator pedal and shaft.

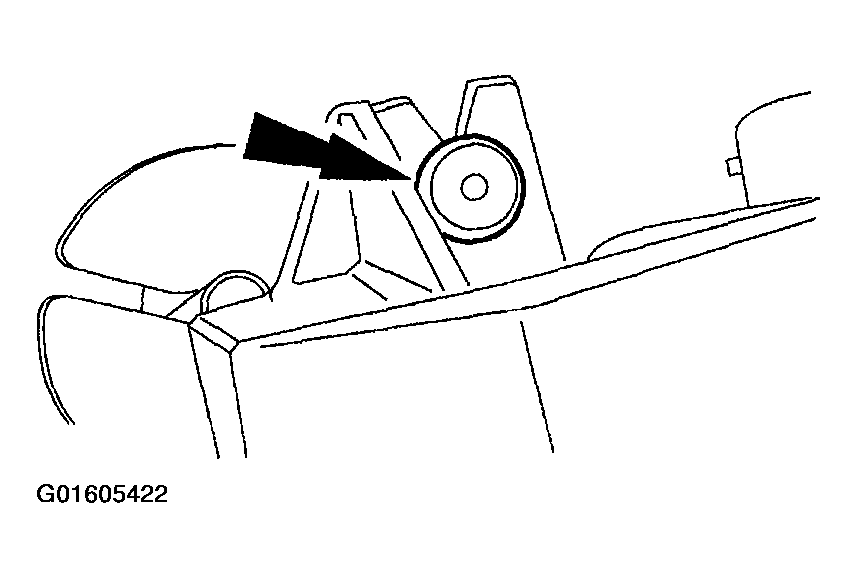

Remove the accelerator cable retainer.

Fig 8: Removing Accelerator Cable Retainer
Courtesy of FORD MOTOR CO.
Pull the cable through the dash panel and remove from the vehicle.
To install, reverse the removal procedure.
