Removal and Installation

  1. Remove the bolts and the accelerator splash shield.

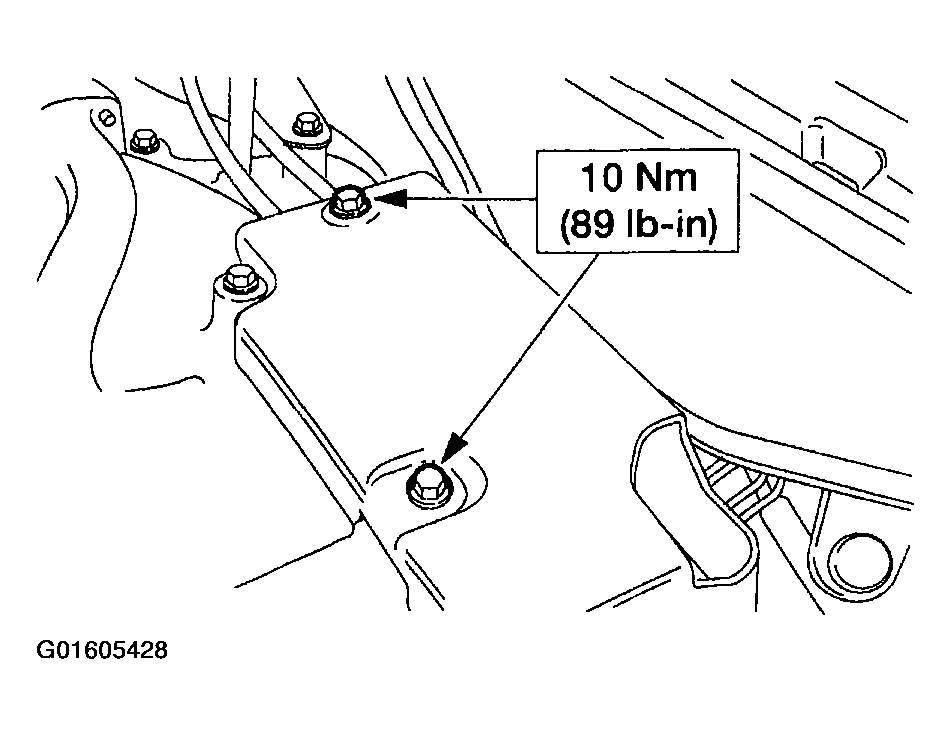

    Fig 1: Removing Accelerator Splash Shield Bolts
    G01605428Courtesy of FORD MOTOR CO.
  2. Remove the spring and disconnect the accelerator and speed control cables.

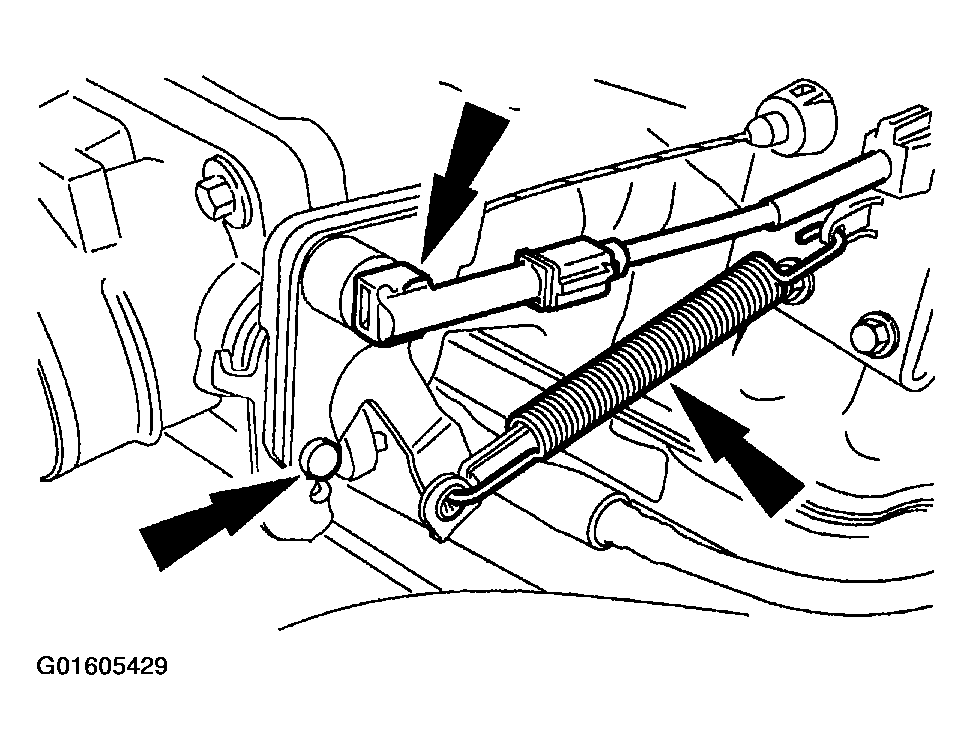

    Fig 2: Identifying spring, Accelerator And Speed Control Cables
    G01605429Courtesy of FORD MOTOR CO.
  3. Disconnect the accelerator cable from the bracket.

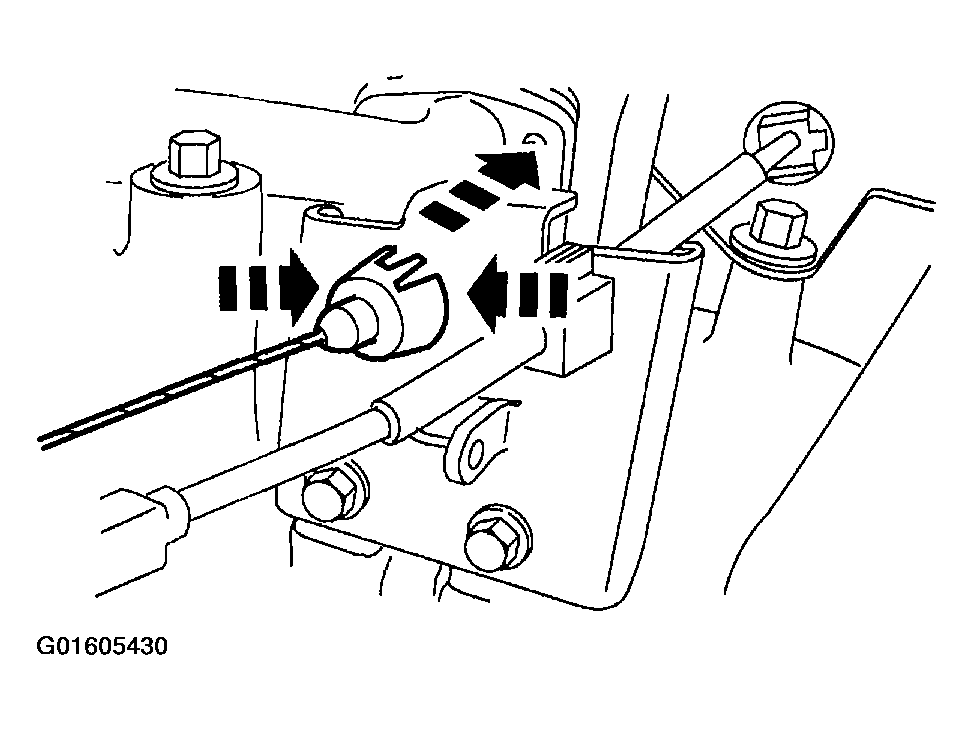

    Fig 3: Disconnecting Accelerator Cable From Bracket
    G01605430Courtesy of FORD MOTOR CO.
  4. Disconnect the speed control cable from the bracket.

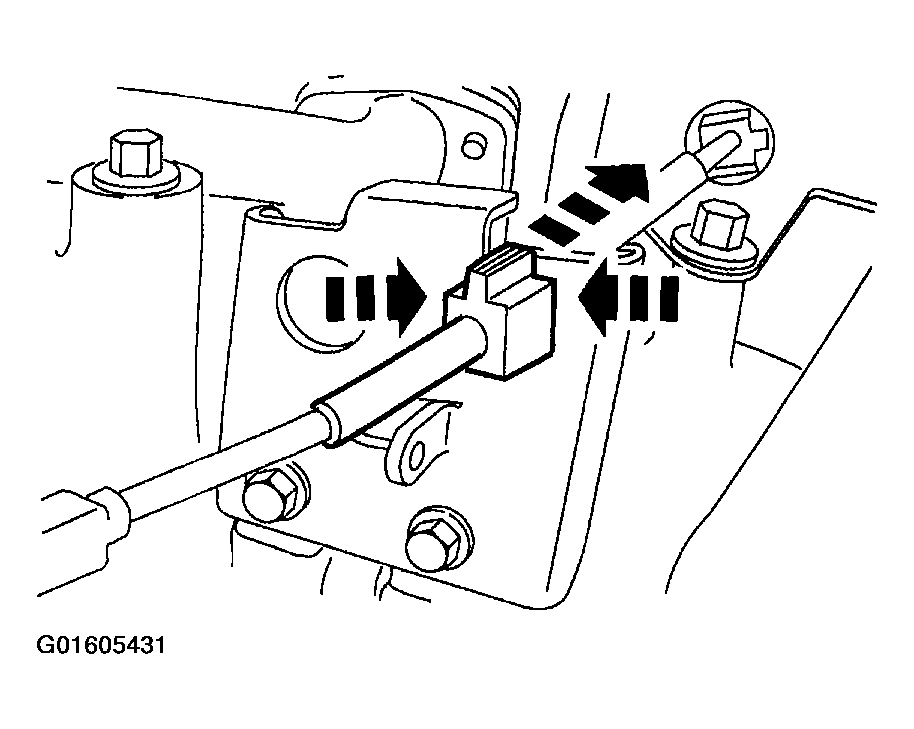

    Fig 4: Disconnecting Speed Control Cable From Bracket
    G01605431Courtesy of FORD MOTOR CO.
  5. Remove the bolts and the accelerator cable bracket.

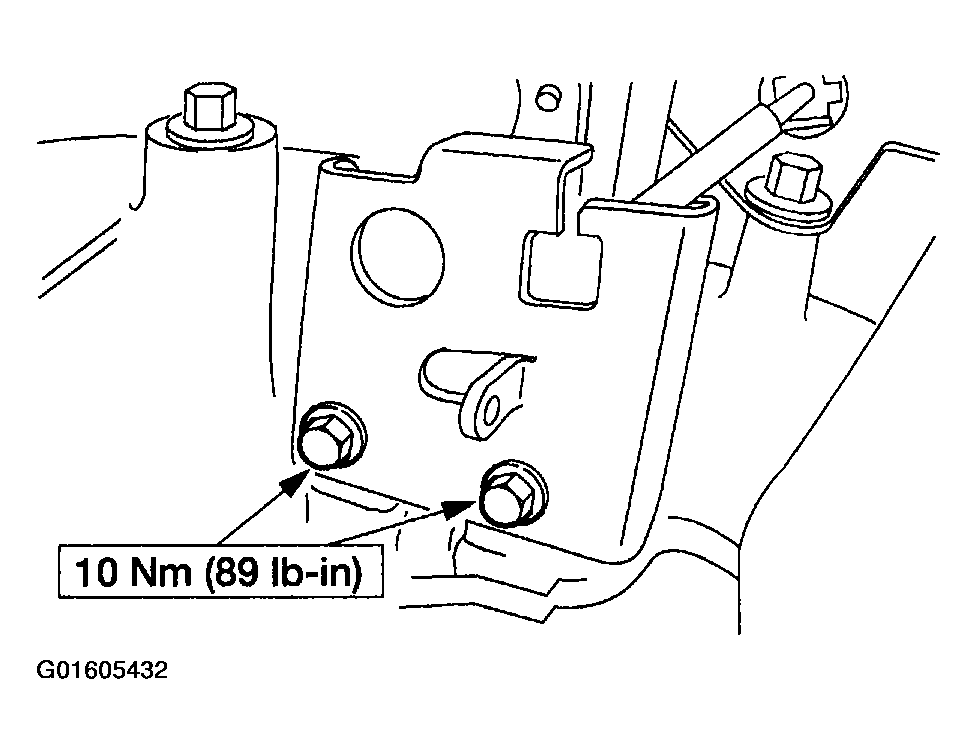

    Fig 5: Removing Accelerator Cable Bracket Bolts
    G01605432Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
