Symptom Chart - Column Shift

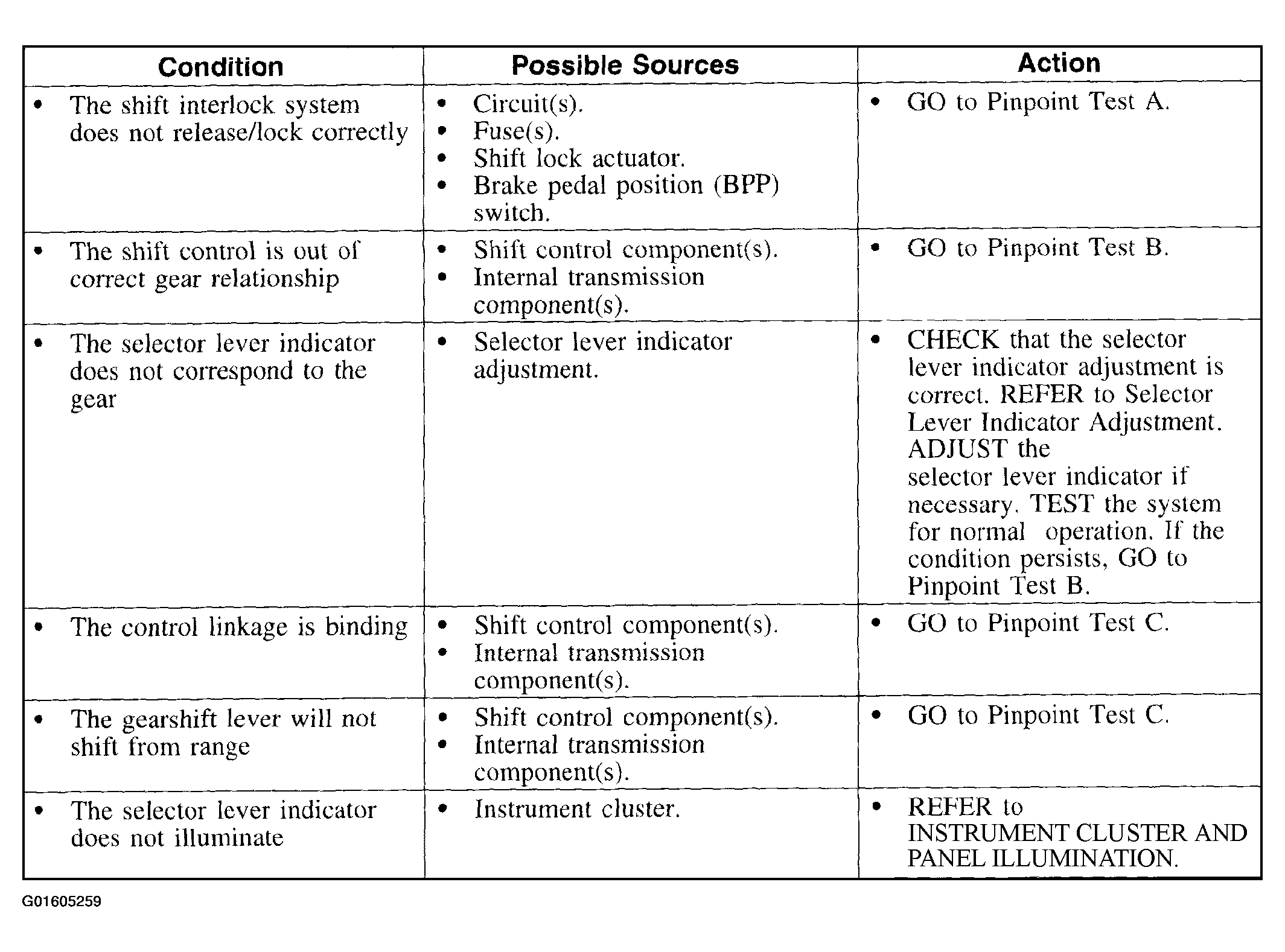

Fig 1: Symptom Chart - Column Shift (1 Of 2)
G01605259Courtesy of FORD MOTOR CO.

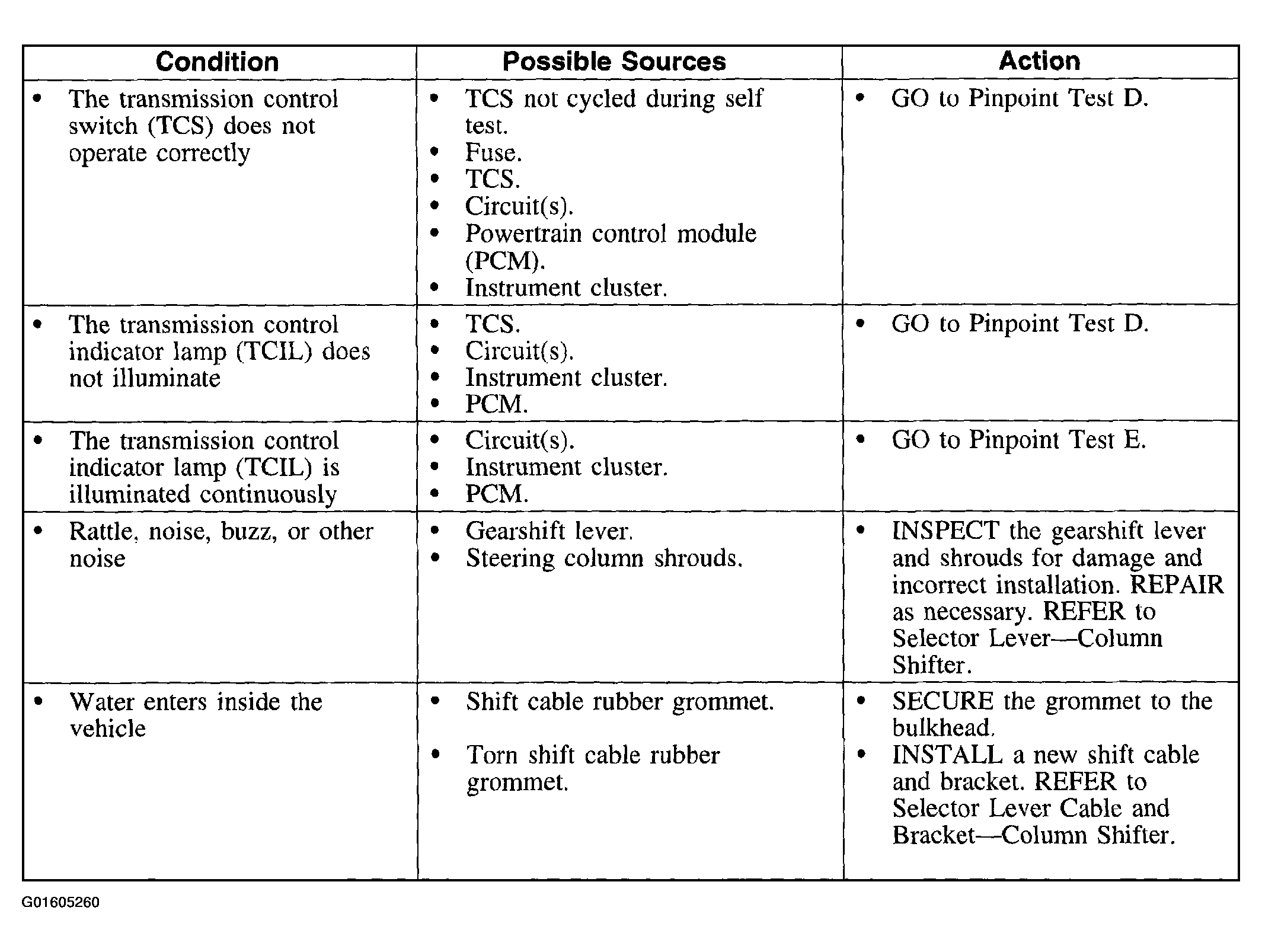

Fig 2: Symptom Chart - Column Shift (1 Of 2)
G01605260Courtesy of FORD MOTOR CO.
