Removal and Installation

Remove the front engine appearance cover and the throttle return spring.
Disconnect the accelerator cable from the throttle body lever.

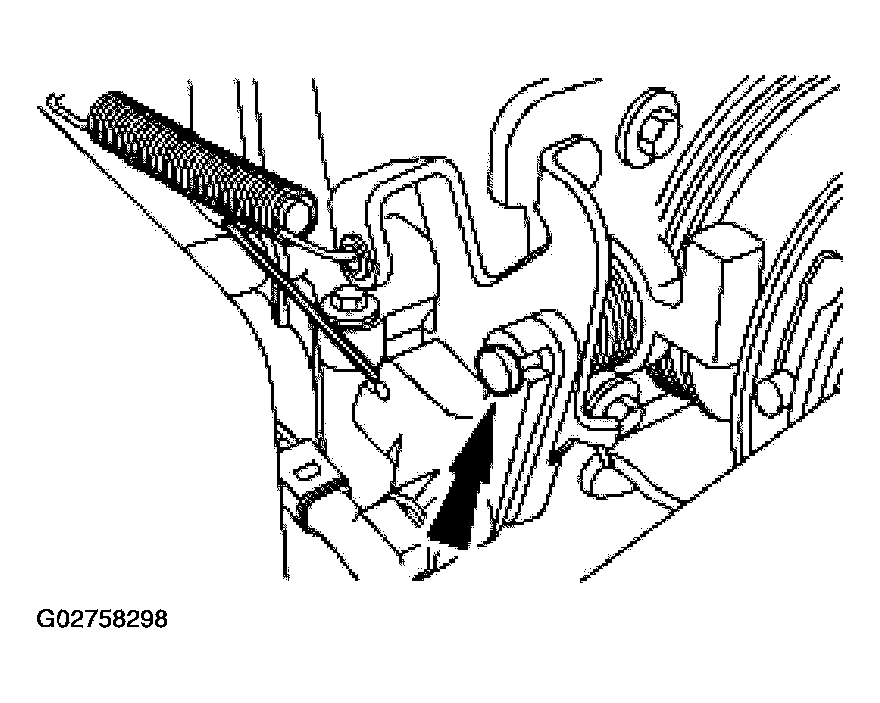

Fig 1: Disconnecting Accelerator Cable From Throttle Body Lever
Courtesy of FORD MOTOR CO.
Remove the screw (cable to bracket) and remove the accelerator cable from the accelerator cable bracket.

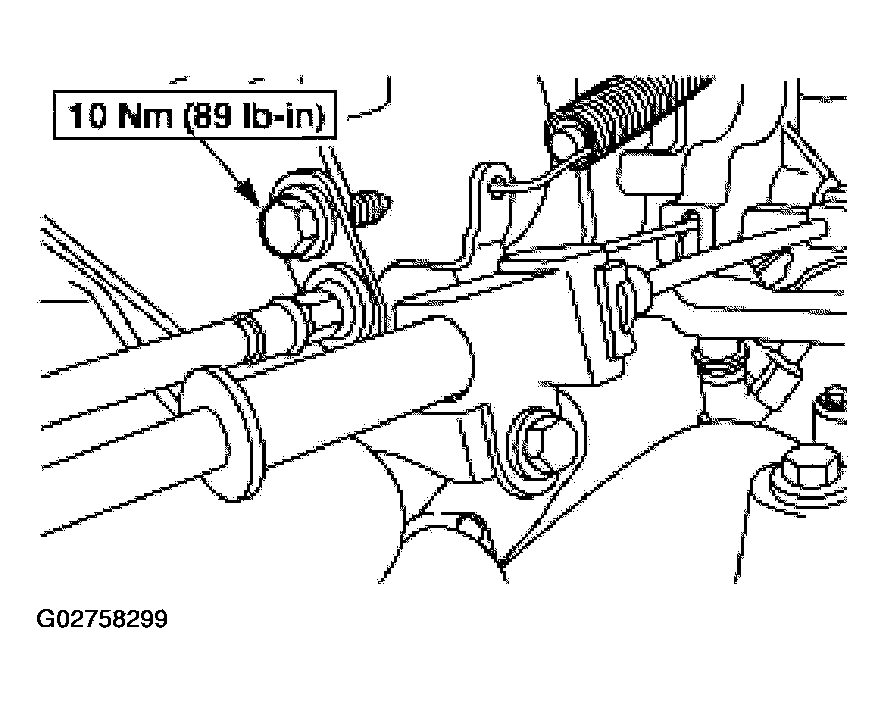

Fig 2: Removing Accelerator Cable From Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
Remove the speed control cable. For additional information, refer to SPEED CONTROL CABLE .
Remove the spring.

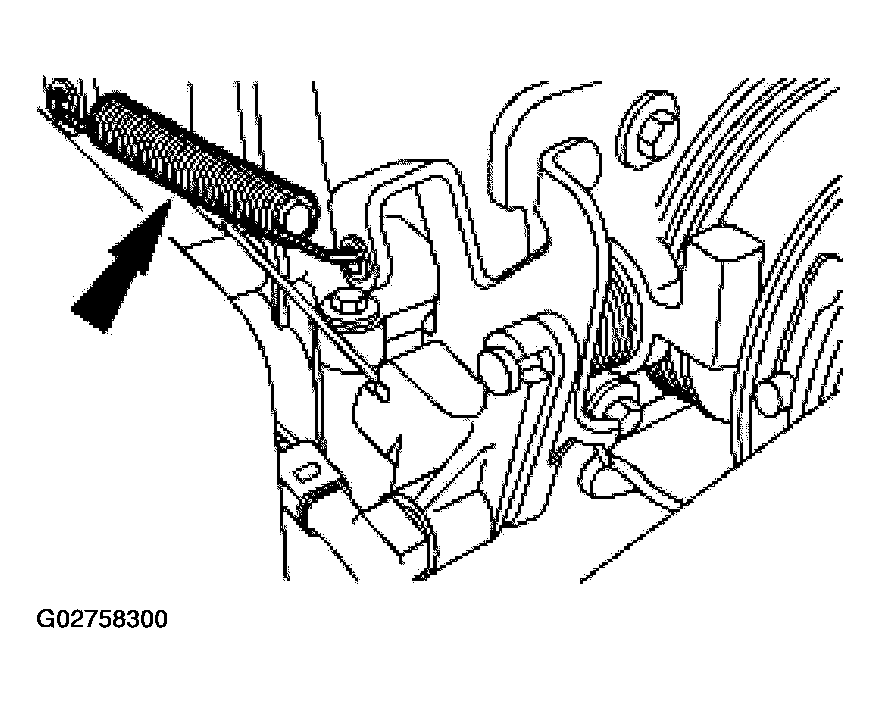

Fig 3: Removing Spring
Courtesy of FORD MOTOR CO.
Remove the screws and the nut and remove the accelerator cable bracket.

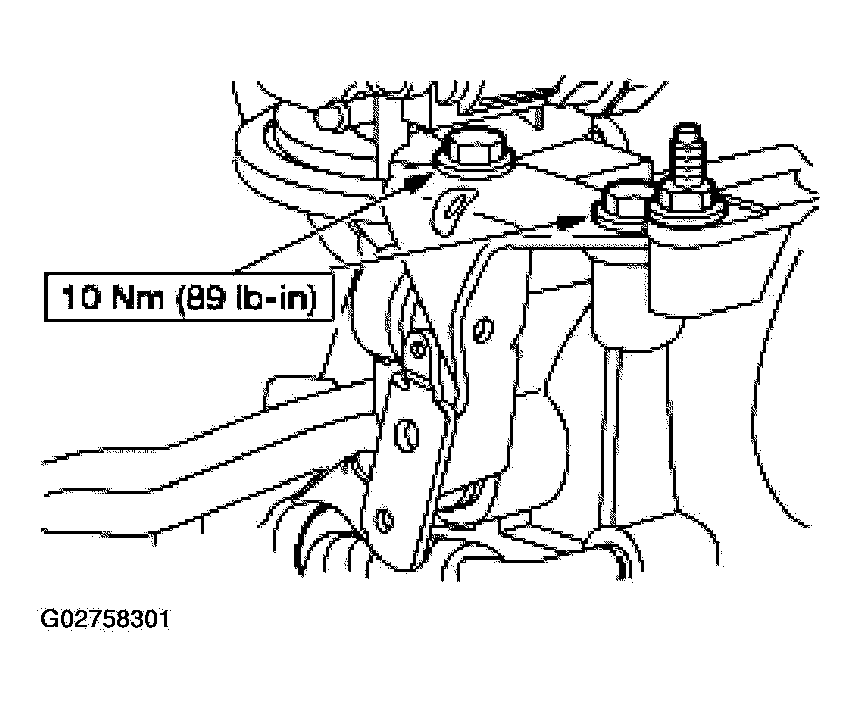

Fig 4: Removing Screws And Nut
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
