Removal and Installation

  1. Remove the bolts and the accelerator splash shield.

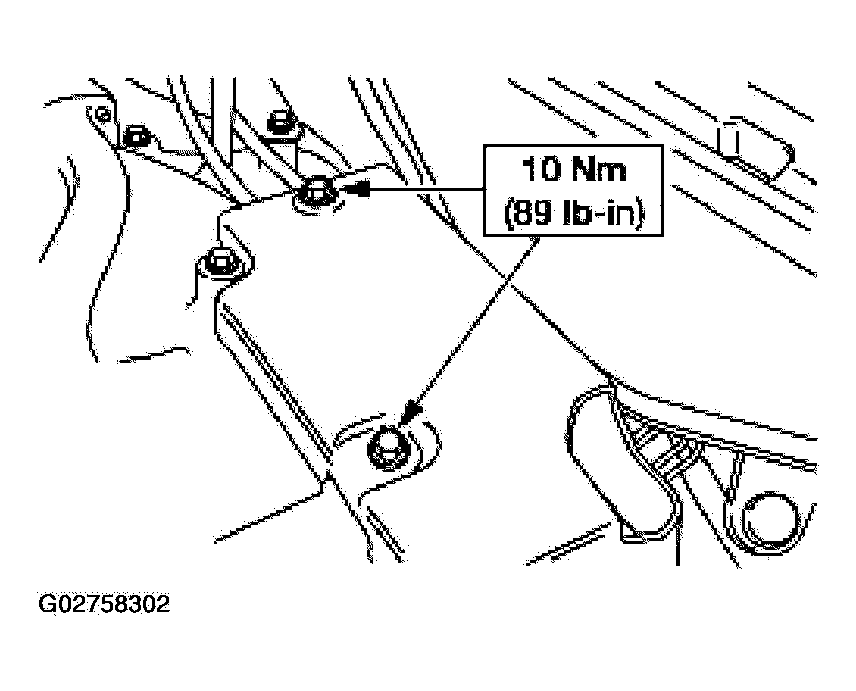

    Fig 1: Removing Bolts And Accelerator Splash Shield
    G02758302Courtesy of FORD MOTOR CO.
  2. Remove the spring and disconnect the accelerator and speed control cables.

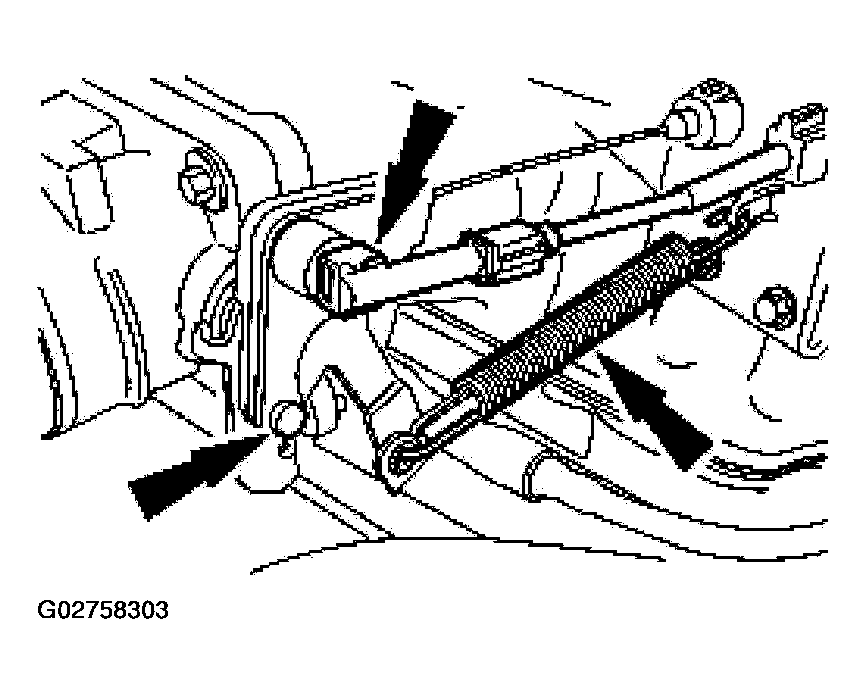

    Fig 2: Disconnecting Accelerator And Speed Control Cables
    G02758303Courtesy of FORD MOTOR CO.
  3. Disconnect the accelerator cable from the bracket.

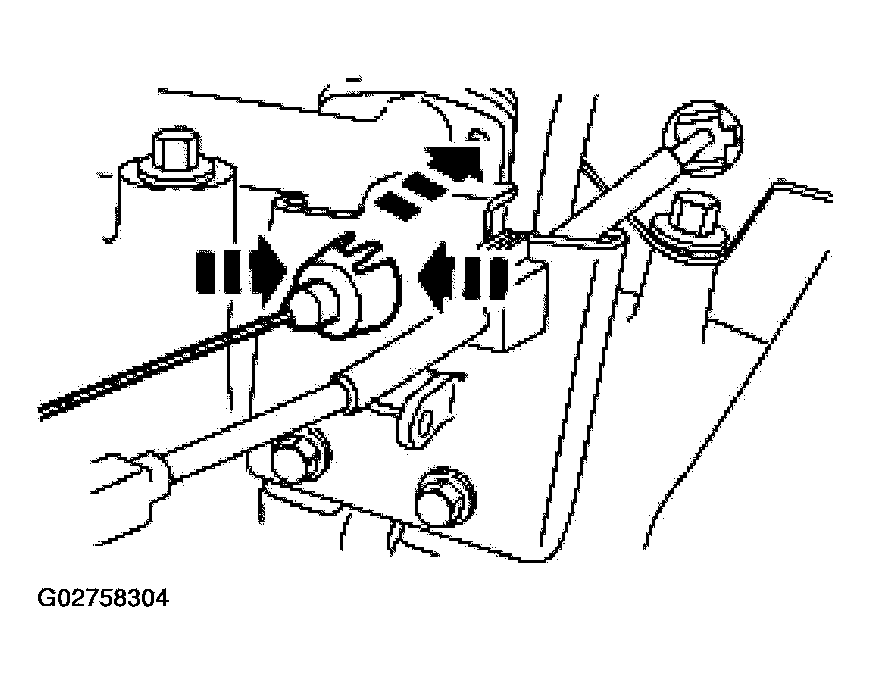

    Fig 3: Disconnecting Accelerator Cable From Bracket
    G02758304Courtesy of FORD MOTOR CO.
  4. Disconnect the speed control cable from the bracket.

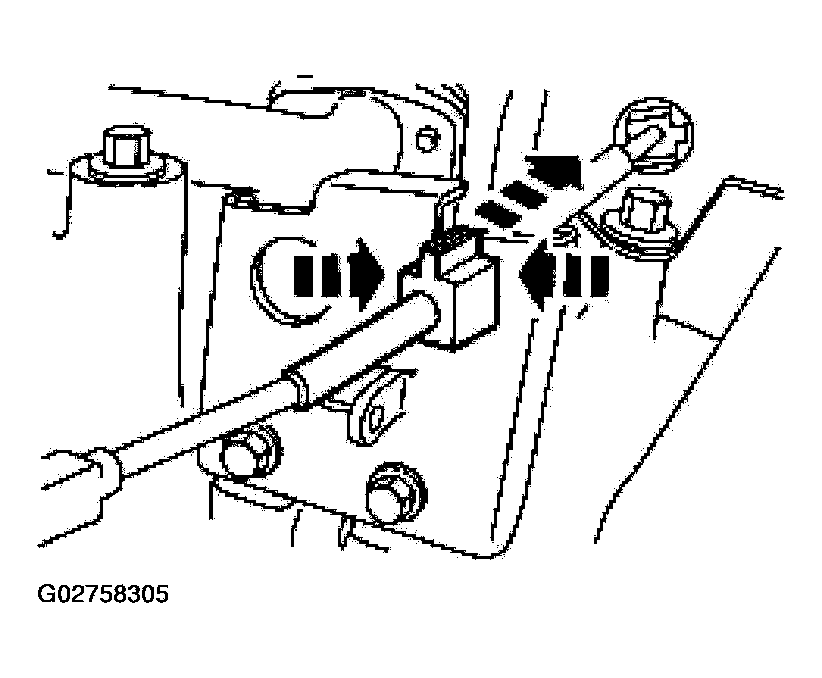

    Fig 4: Disconnecting Speed Control Cable From Bracket
    G02758305Courtesy of FORD MOTOR CO.
  5. Remove the bolts and the accelerator cable bracket.

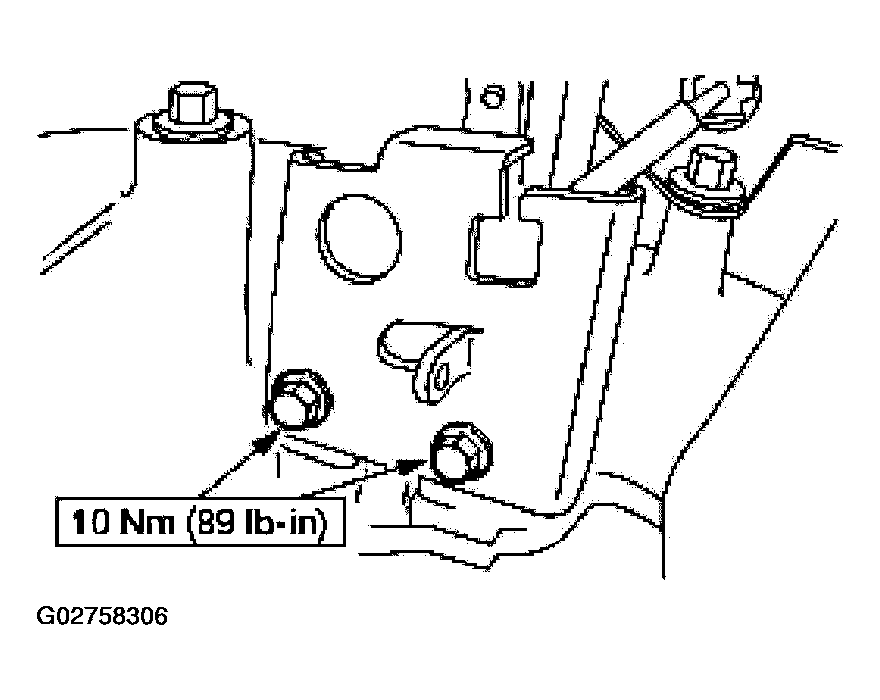

    Fig 5: Removing Bolts And Accelerator Cable Bracket
    G02758306Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
