Removal and Installation

  1. Remove the accelerator cable from the accelerator pedal and shaft.

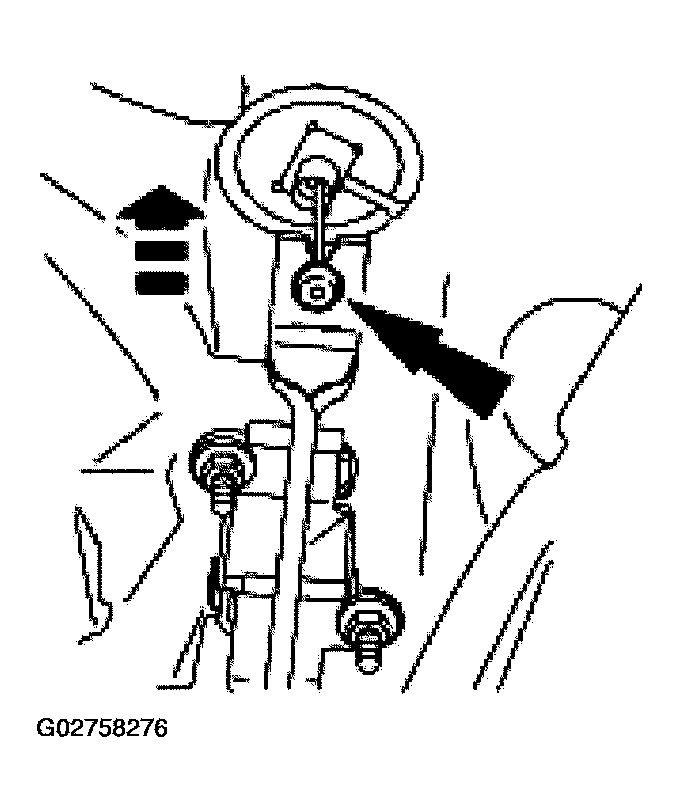

    Fig 1: Removing Accelerator Cable From Accelerator Pedal And Shaft
    G02758276Courtesy of FORD MOTOR CO.
  2. Remove the nuts and remove the accelerator pedal and shaft.

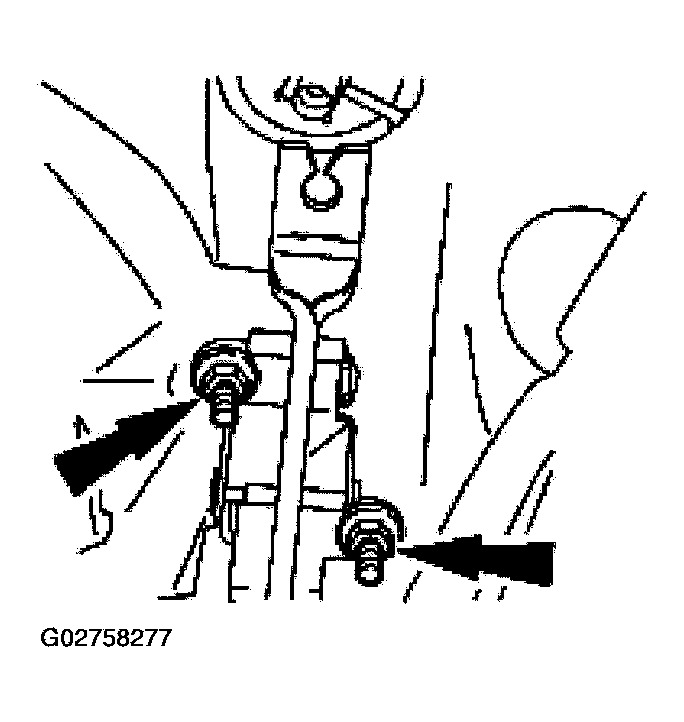

    Fig 2: Removing Accelerator Pedal And Shaft
    G02758277Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

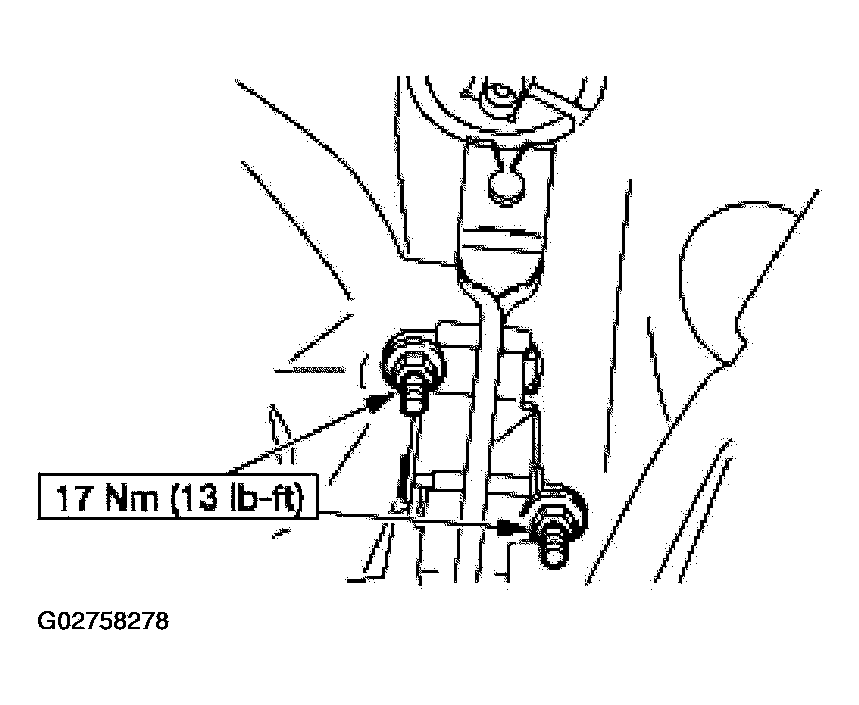

    Fig 3: Installing Accelerator Pedal And Shaft
    G02758278Courtesy of FORD MOTOR CO.
