Accelerator Cable And Bracket: Notes

  1. If removing the accelerator cable bracket, remove the air cleaner outlet tube. For additional information, Refer to AIR CLEANER ASSEMBLY .
  2. Remove the parts in the order indicated in the following illustration and table.
    PART REMOVAL STEPS

    Part Steps
    Accelerator cable 1-5
    Accelerator cable bracket 1, 2, 6-10

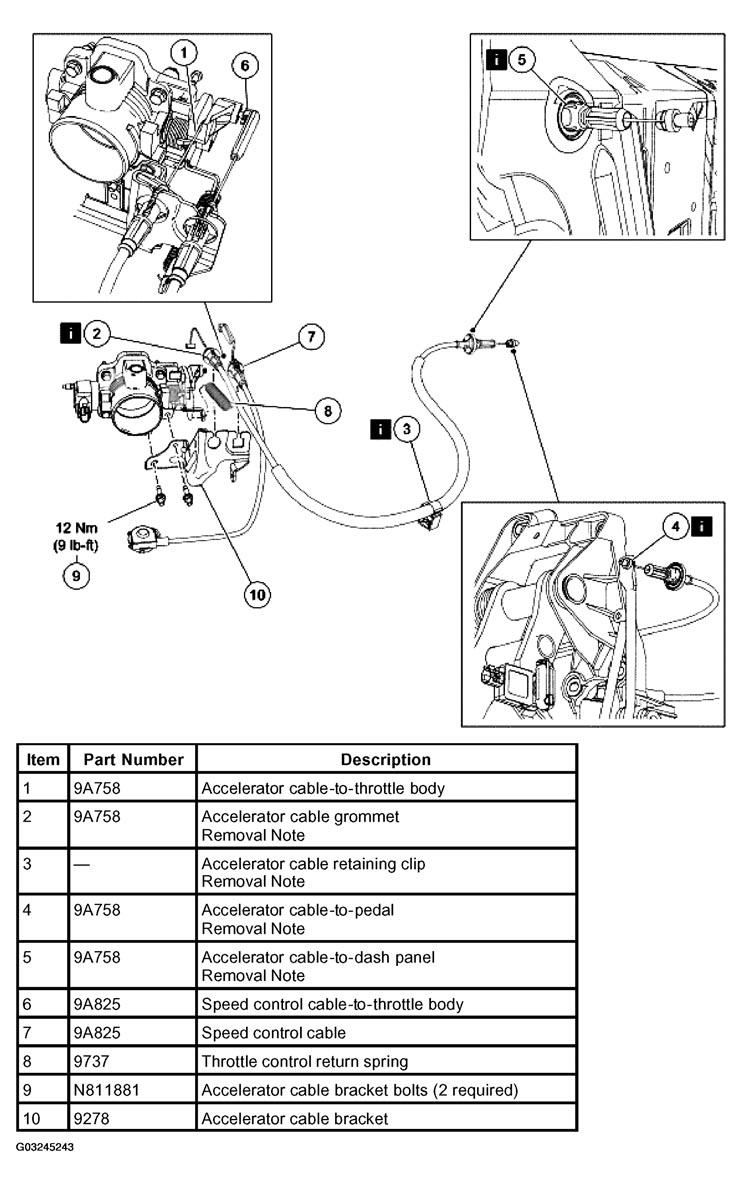

    Fig 1: Accelerator Cable Components Removal Sequence
    G03245243Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
