Fuel Vapor Control Tube Assembly Valve: Notes
MATERIAL
| Item | Specification |
|---|---|
| SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP | WSS-M2C153-H |
WARNING:
The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, which can cause a fire or explosion if fuel vapor or liquefied fuel are present in the area. Failure to follow these instructions may result in personal injury.
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.
- Remove the fuel tank. For additional information, Refer to FUEL TANK AND FILLER PIPE .

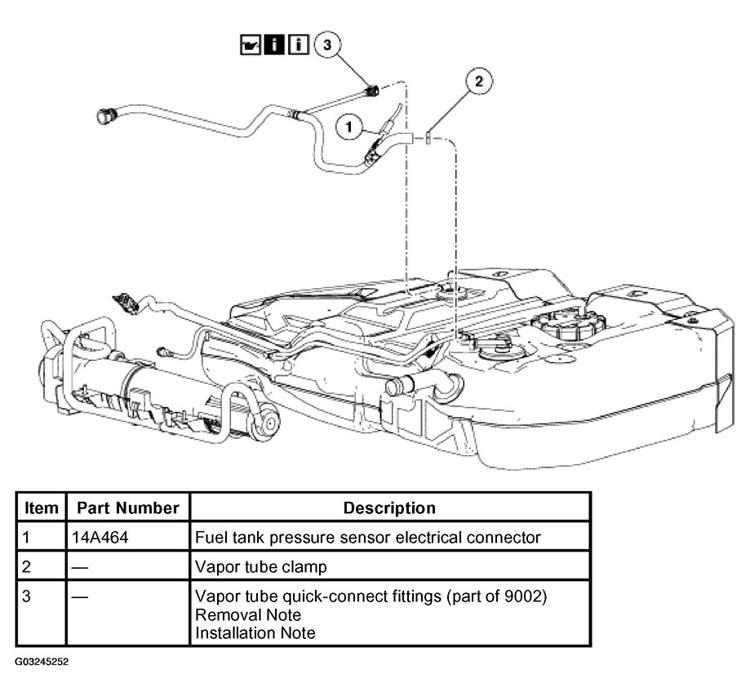

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
- Carry out a leak test. For additional information, Refer to EVAPORATIVE EMISSION SYSTEM LEAK TEST .
- Carry out the evaporative emission repair verification drive cycle. For additional information, Refer to EVAPORATIVE EMISSION REPAIR VERIFICATION DRIVE CYCLE .
