Knock Sensor (KS): Notes

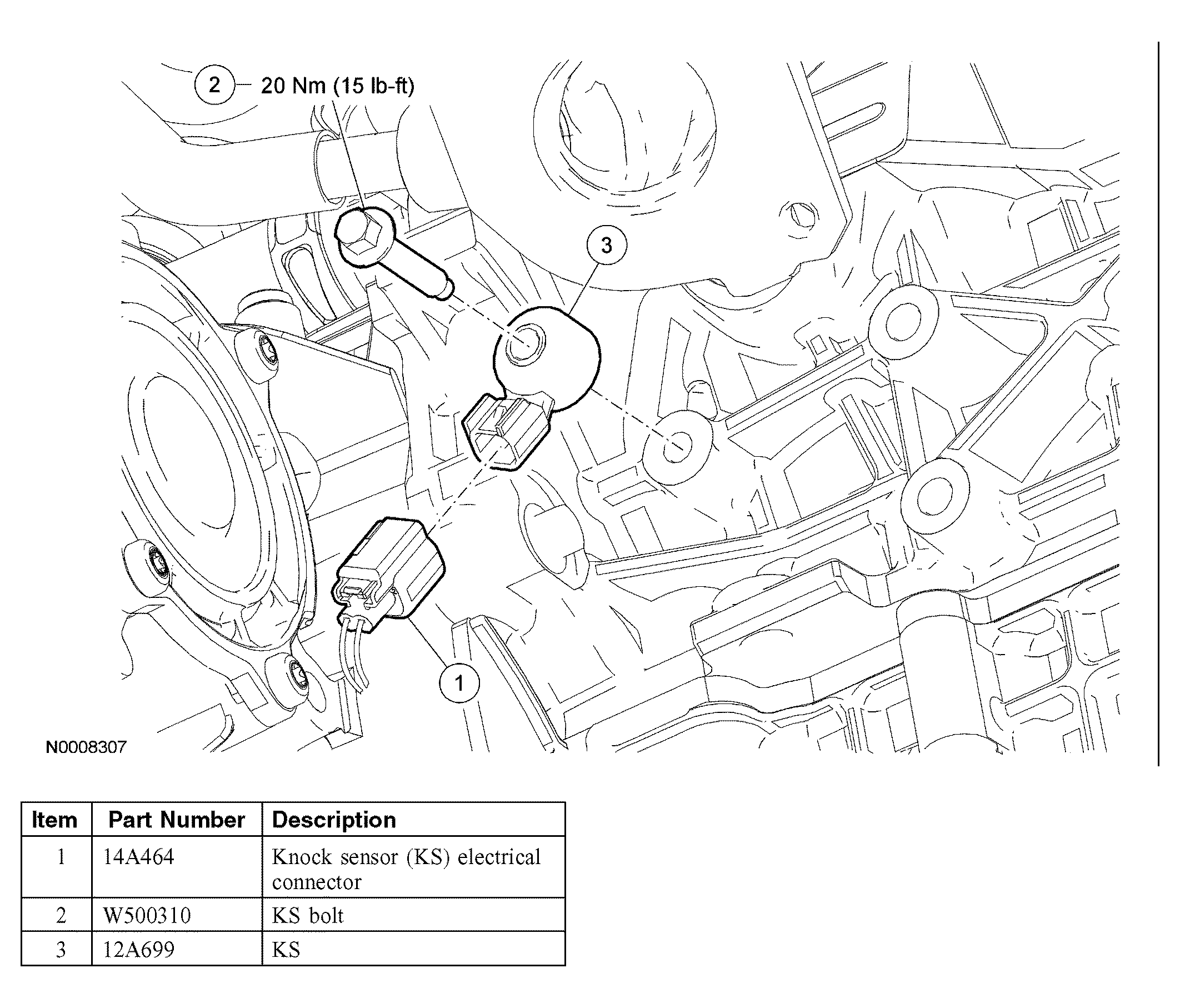

Fig 1: Removing/Installing Knock Sensor (KS)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
