Accelerator Pedal: Notes

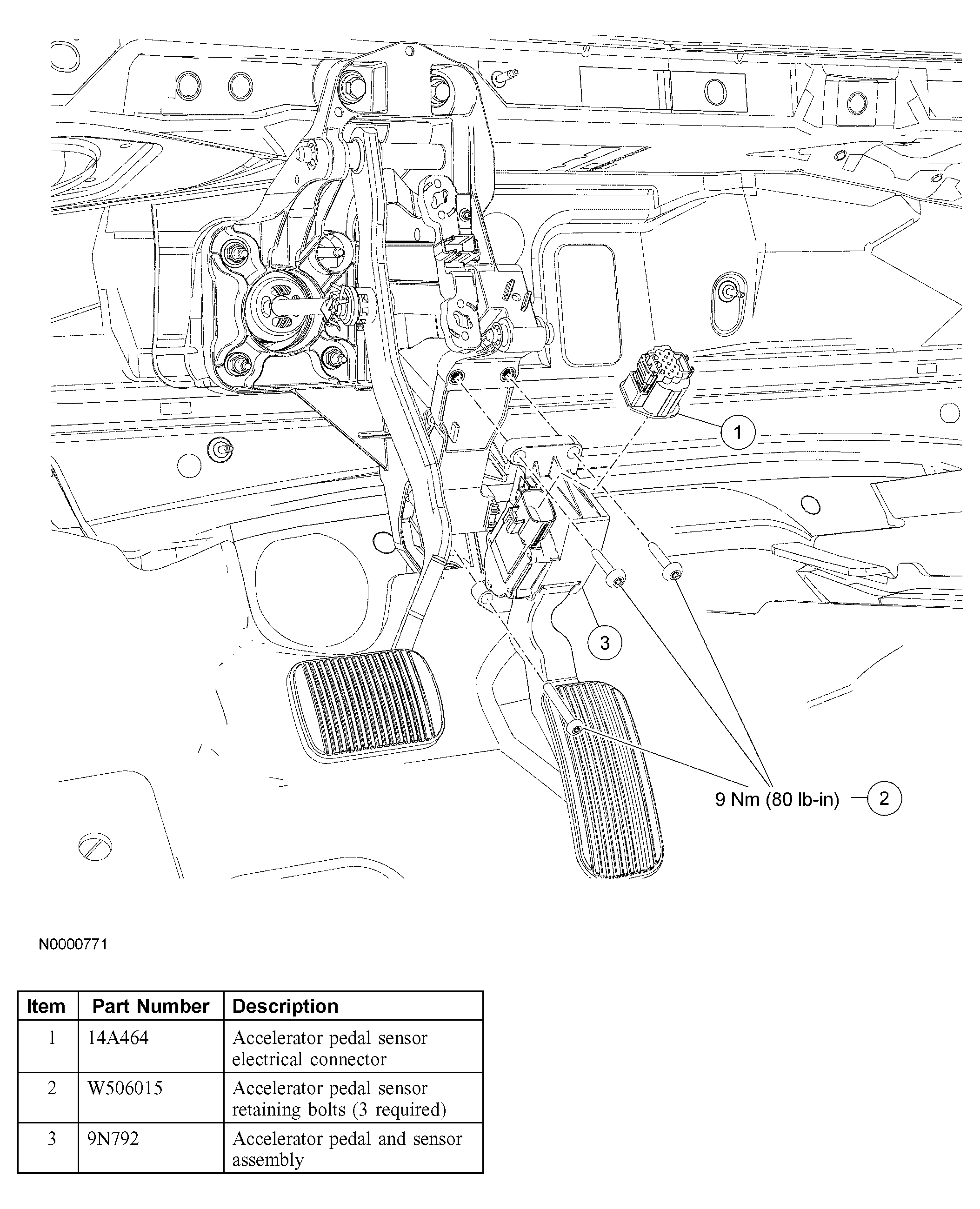

Fig 1: Removing/Installing Accelerator Pedal
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
