Fuel Pump Driver Module (FPDM): Notes

NOTE: Five Hundred shown, Freestyle similar.

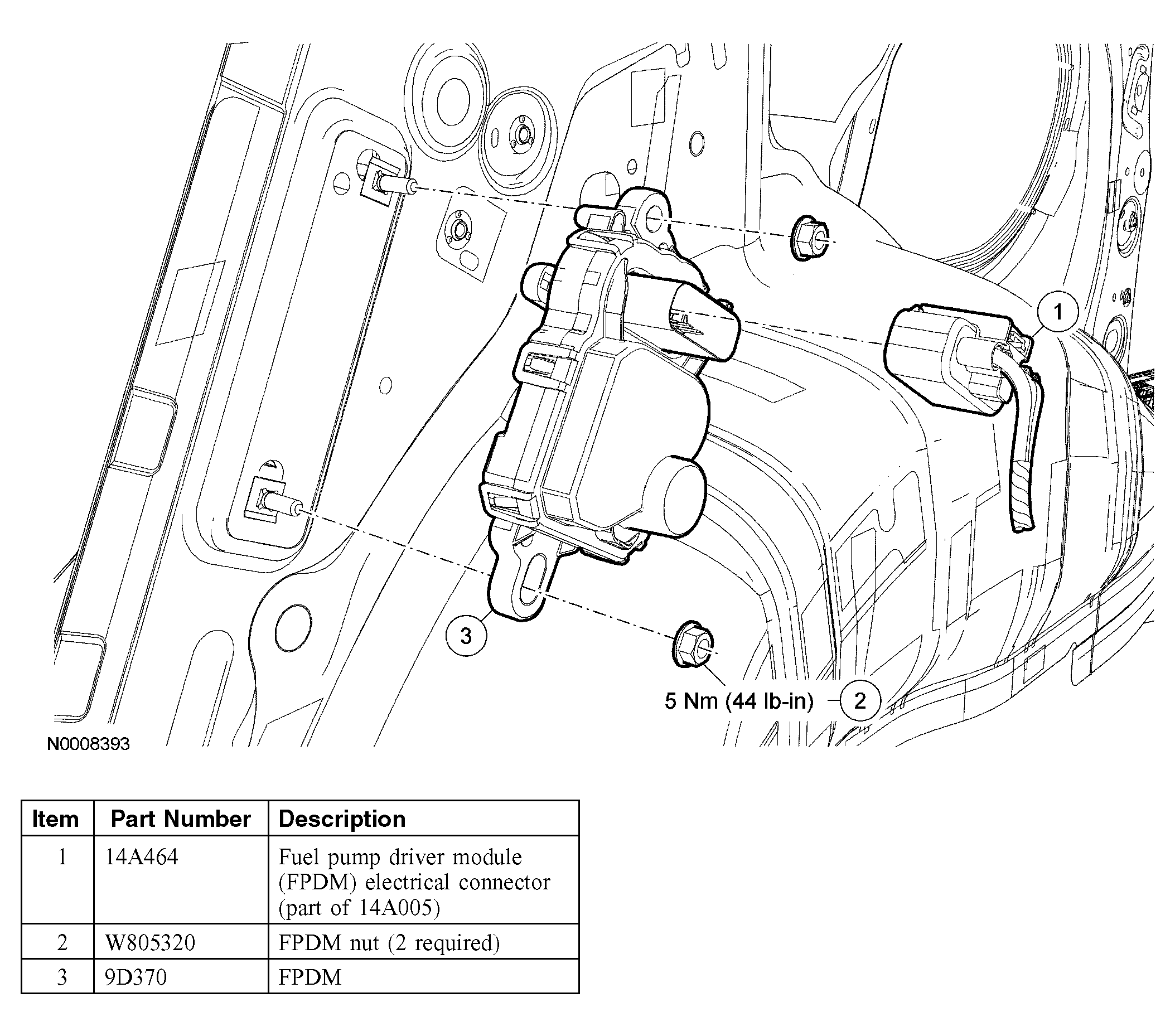

Fig 1: Removing/Installing Fuel Pump Driver Module (FPDM)
G03990597Courtesy of FORD MOTOR CO.
