Powertrain Control Module (PCM): Notes

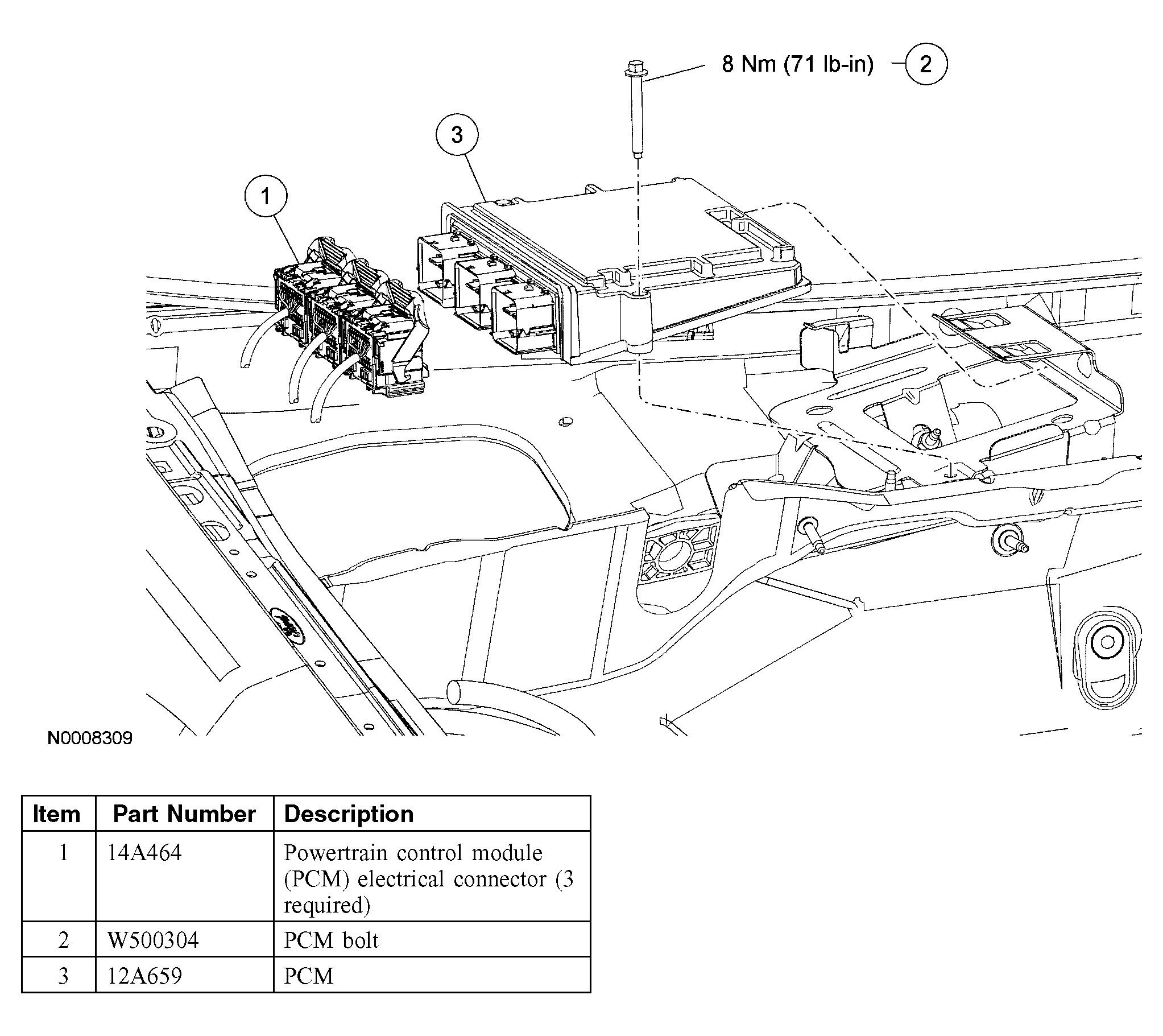

Fig 1: Removing/Installing Powertrain Control Module (PCM)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
