Intake Manifold Runner Control (IMRC) Actuator: Notes

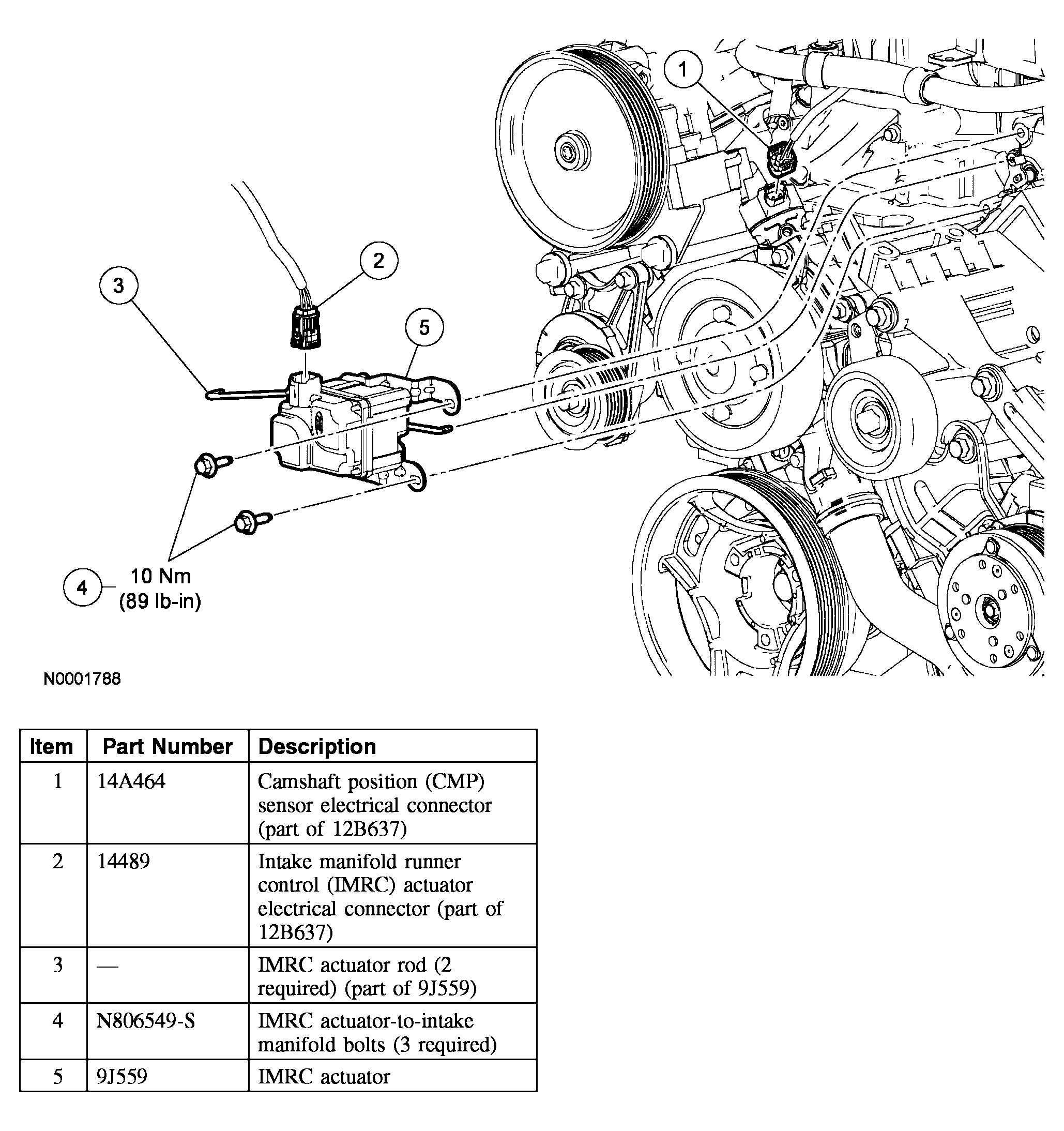

Fig 1: Installing Intake Manifold Runner Control Actuator
G04004515Courtesy of FORD MOTOR CO.
