Accelerator Cable Bracket - 3.0L (4V): Removal

Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Disconnect the throttle control linkage.
1. Remove the throttle return spring.
2. Disconnect the speed control cable from the throttle cam.
3. Depress the speed control cable tabs and remove the cable from the cable bracket.
4. Disconnect the accelerator cable from the throttle cam.
5. Depress the tabs and remove the accelerator cable from the cable bracket.

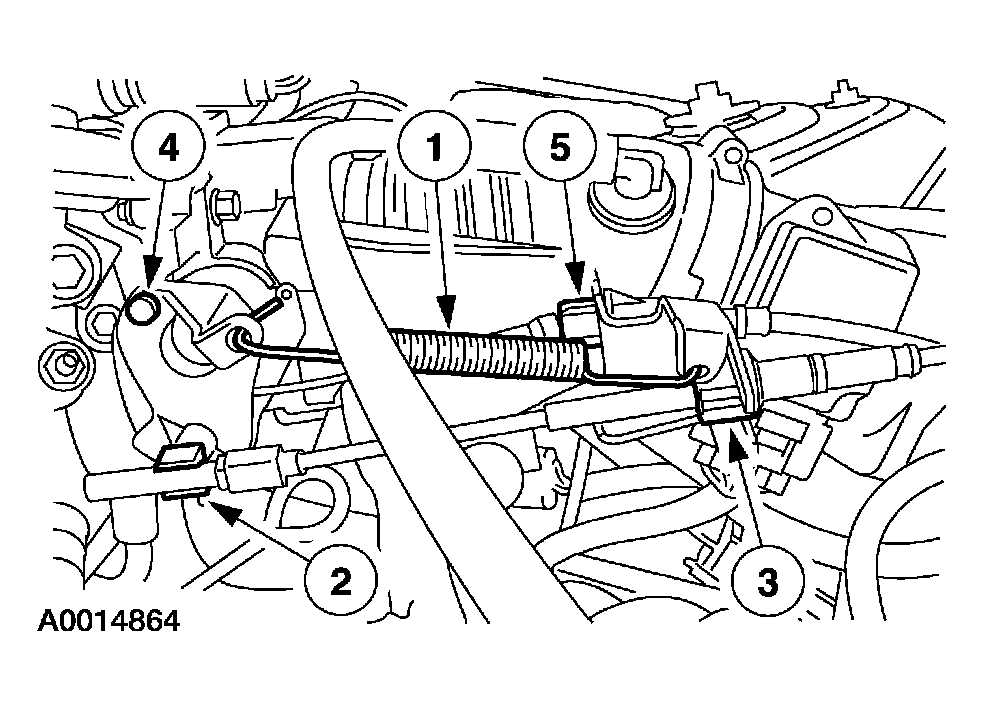

Fig 1: Disconnecting Throttle Control Linkage
Courtesy of FORD MOTOR CO.
Remove the accelerator cable bracket.
1. Remove the bolts.
2. Remove the bracket.

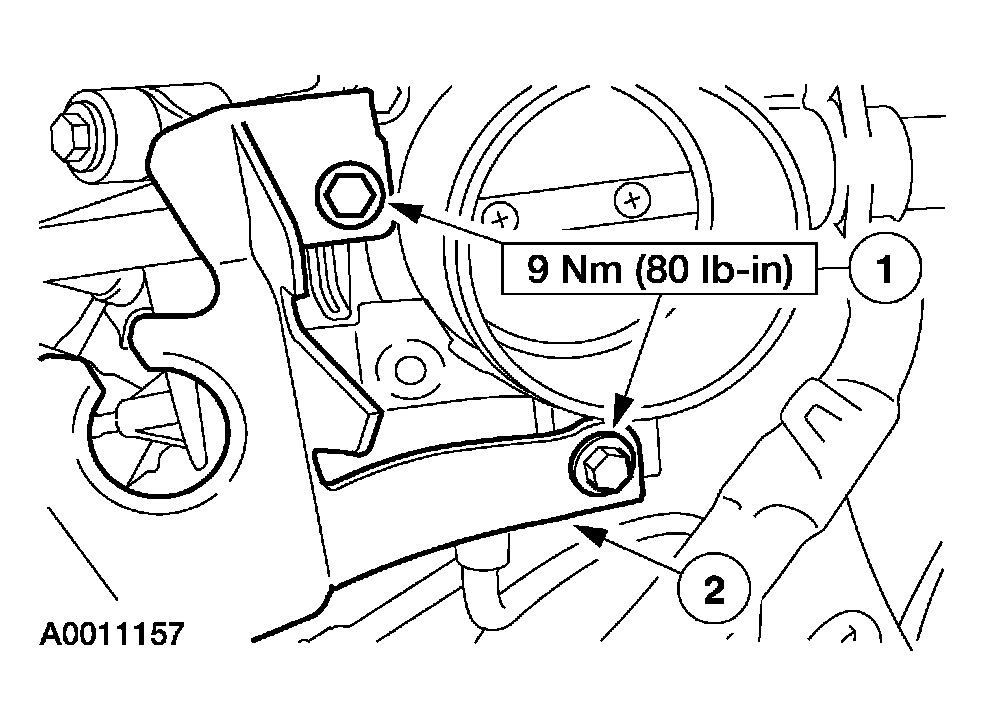

Fig 2: Removing Accelerator Cable Bracket - With Torque Specification
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
