Removal and Installation

Disconnect the accelerator pedal cable.
1. Position the accelerator pedal to relieve tension on the accelerator cable.
2. Depress the tabs on the accelerator pedal retaining pin and disconnect the cable.

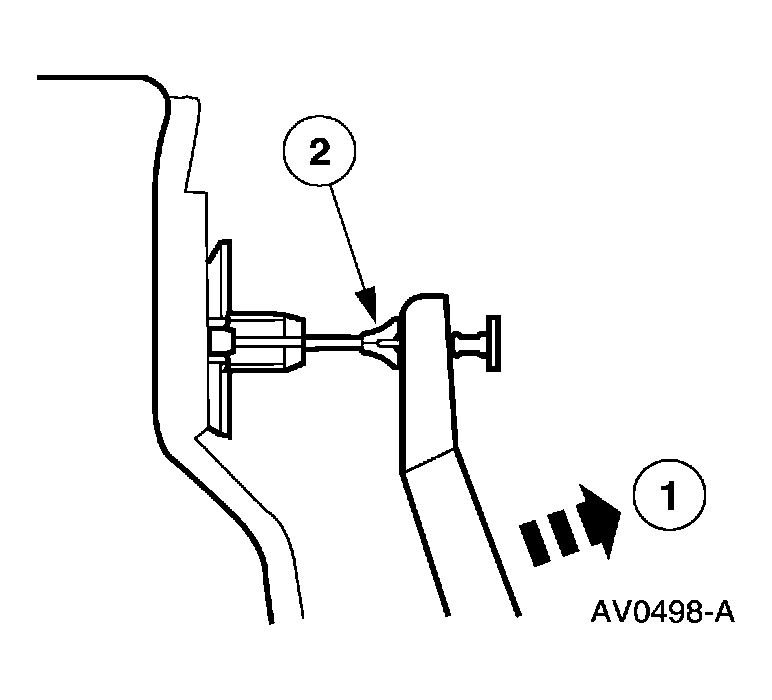

Fig 1: Disconnecting Accelerator Pedal Cable
Courtesy of FORD MOTOR CO.
Remove the accelerator pedal.
- Remove the nuts.
- Remove the accelerator pedal assembly.

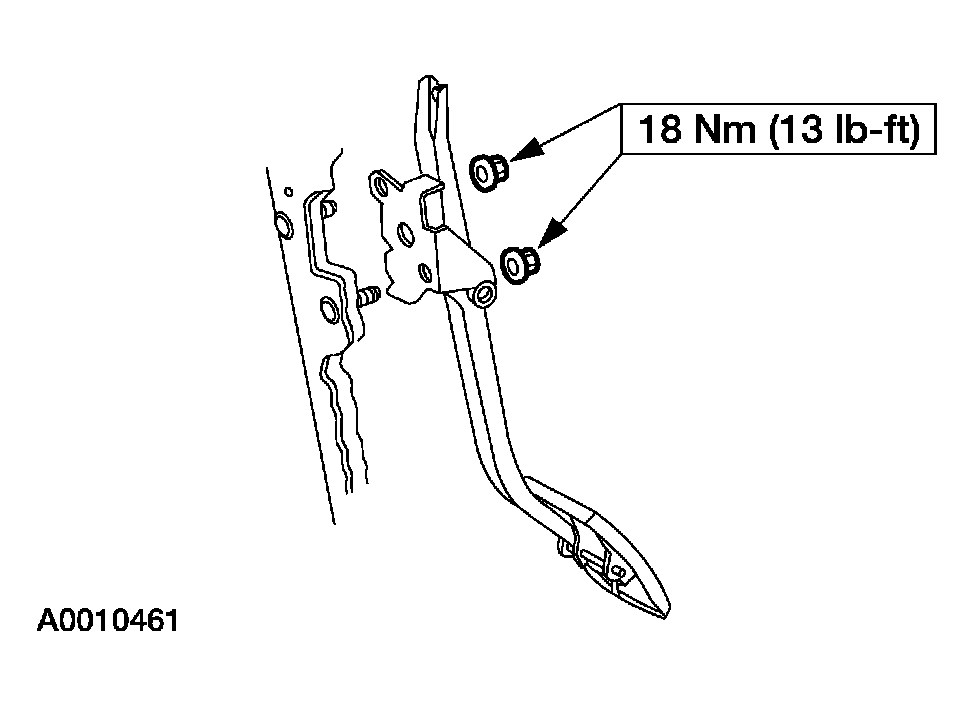

Fig 2: Removing Accelerator Pedal Nuts - With Torque Specification
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
