Fuel Injection Pressure and Temperature Sensor: Material

MATERIAL ITEM SPECIFICATION

Item	Specification
SAE 5W-20 Motor Oil XO-5W20-QSP	WSS-M2C153-H

Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

NOTE: 4V shown, 2V similar.

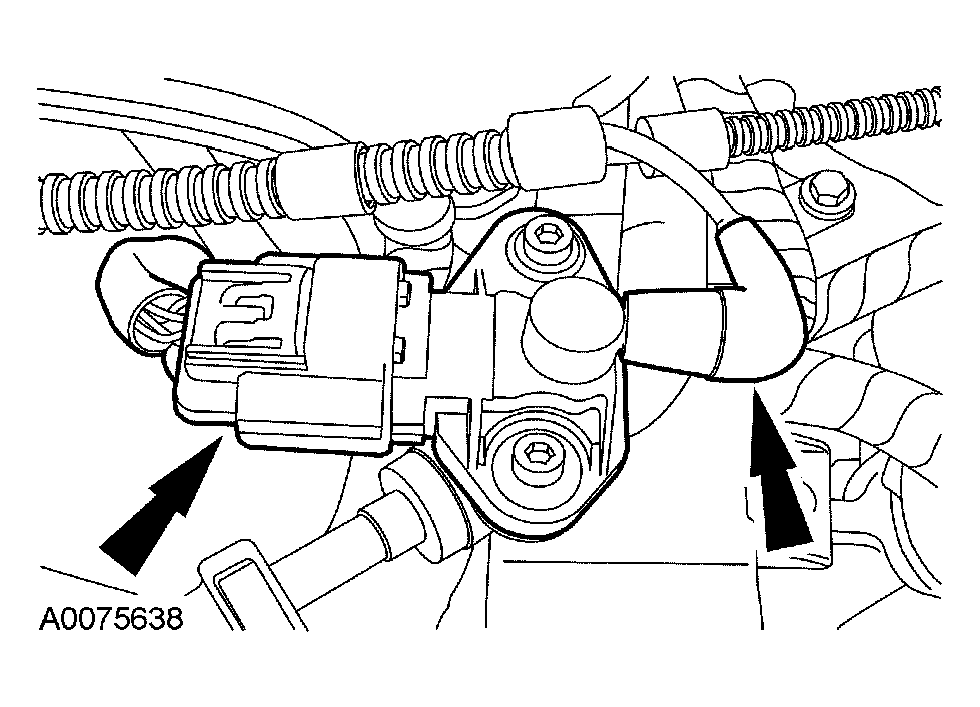

Fig 1: Disconnecting Fuel Injection Pressure And Temperature Sensor Electrical Connector And Vacuum Hose

Courtesy of FORD MOTOR CO.

Disconnect the fuel injection pressure and temperature sensor electrical connector and the vacuum hose.
Remove the bolts and the fuel injection pressure and temperature sensor.

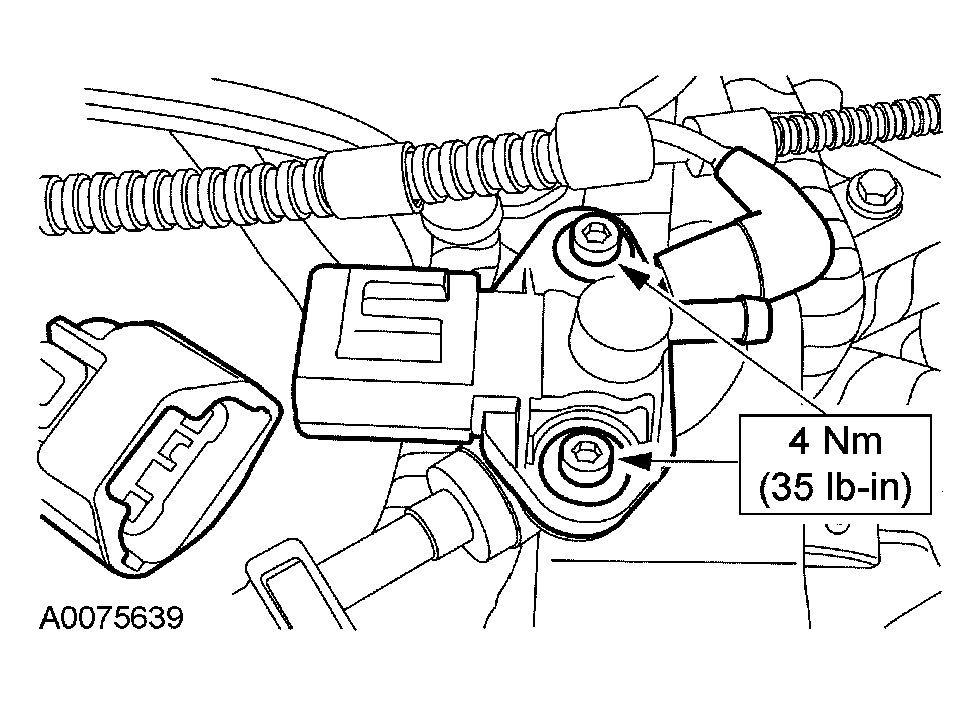

Fig 2: Removing Bolts And Fuel Injection Pressure And Temperature Sensor - With Torque Specification
Courtesy of FORD MOTOR CO.

NOTE: Before installing the fuel injection pressure and temperature sensor, inspect and lubricate the O-ring seal with clean engine oil.

NOTE: Hand-tighten both bolts before tightening to specification.
