Camshaft Position (CMP) Sensor: Notes

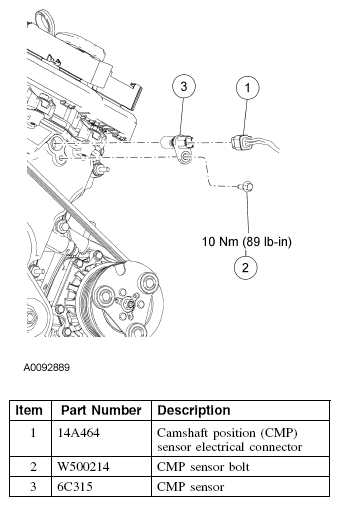

Fig 1: Camshaft Position (CMP) Sensor Replacement Components With Torque Specifications
G04656180Courtesy of FORD MOTOR CO.
