Cylinder Block Core Plug Replacement: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL SPECIFICATIONS

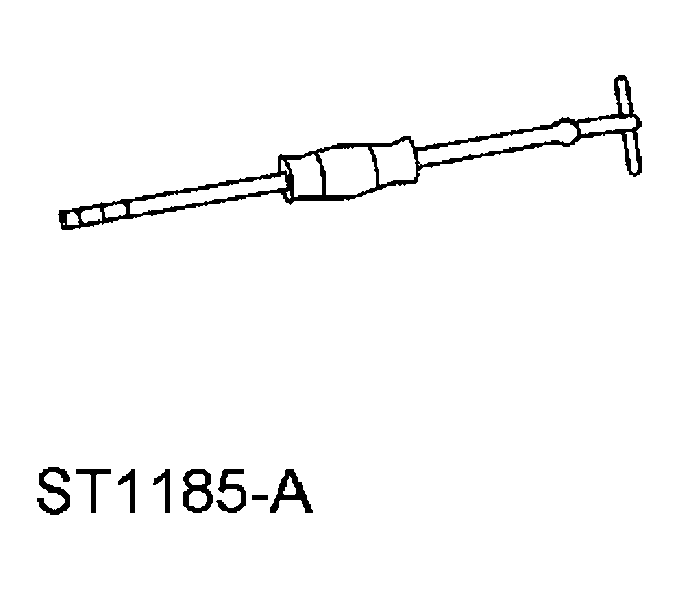

Slide Hammer
100-001 (T50T-100-A)

ITEM SPECIFICATIONS

Item	Specification
Threadlock 262 TA-26	WSK-M2G351-A6

Use a slide hammer or tools suitable to remove the cylinder block core plug.

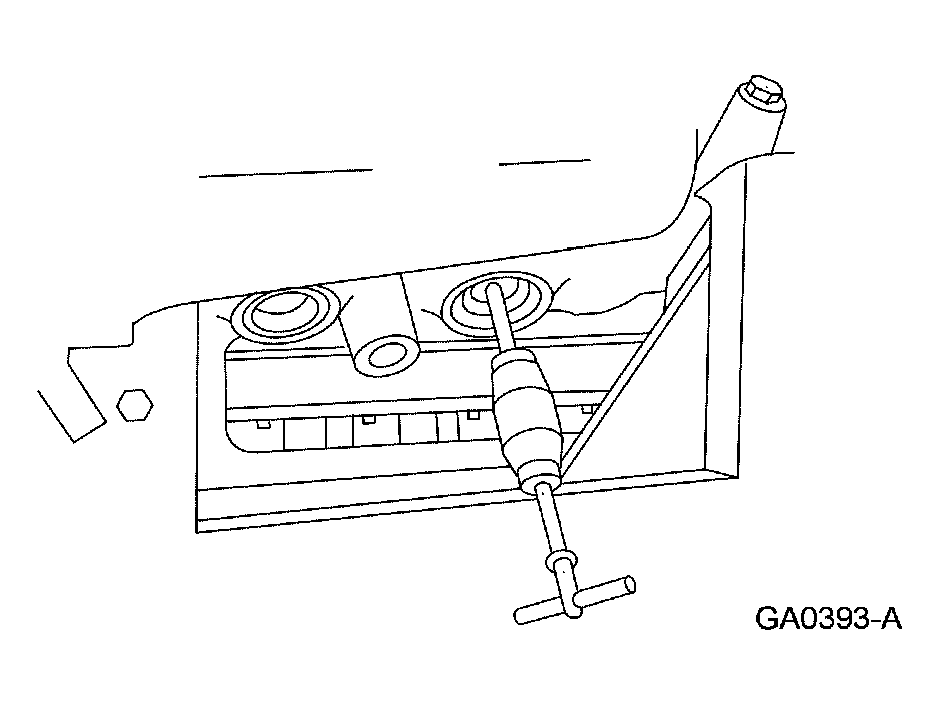

Fig 1: Removing Cylinder Block Core Plug Using Slide Hammer
Courtesy of FORD MOTOR CO.
Inspect the cylinder block plug bore for any damage that would interfere with the correct sealing of the plug. If the cylinder block plug bore is damaged, bore for the next oversize plug.

NOTE: Oversize plugs are identified by the OS stamped in the flat located on the cup side of the plug.

Coat the cylinder block core plug and bore lightly with Threadlock 262 and install the cylinder block core plug.
