Safety Belt Buckle - Third Row, Bench: Notes

NOTE: RH side shown, LH side similar.

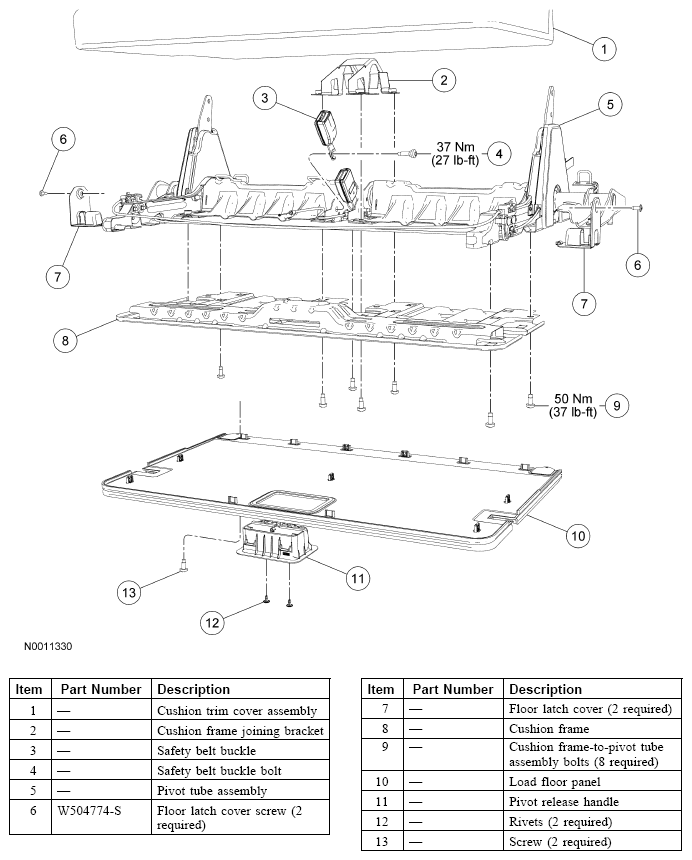

Fig 1: Safety Belt Buckle Replacement Components (Third Row & Bench) With Torque Specifications
G04659191Courtesy of FORD MOTOR CO.
