Accelerator Pedal: Notes

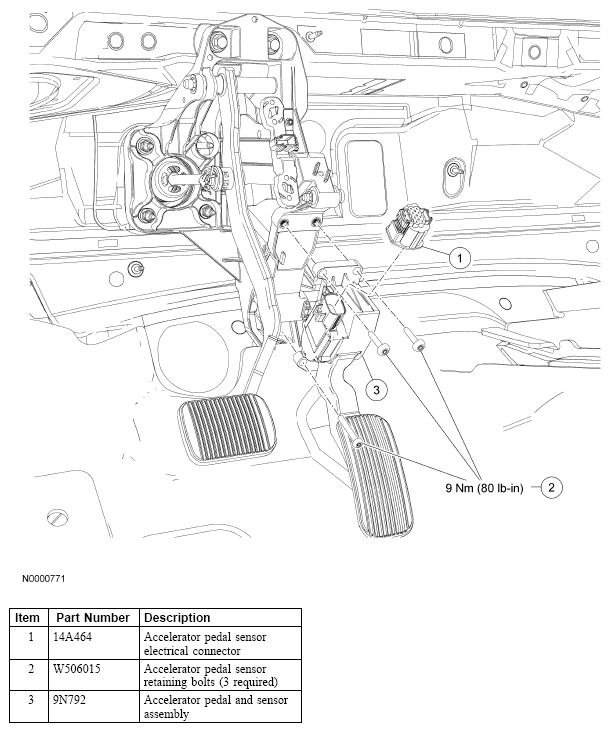

Fig 1: Accelerator Pedal (With Torque Specification)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
