Selector Lever Bezel: Installation

Install the PRNDL bezel.
- Make sure that the 4 locking tabs are snapped in place.

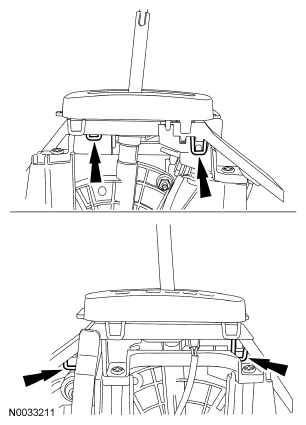

Fig 1: Identifying Locking Tabs
Courtesy of FORD MOTOR CO.
Connect the light bulb to the PRNDL bezel.

Fig 2: Connecting Light Bulb To PRNDL Bezel
Courtesy of FORD MOTOR CO.
Install the lower shift knob bezel.

Fig 3: Installing Lower Shift Knob Bezel
Courtesy of FORD MOTOR CO.
Install the shift knob and bolt.

Fig 4: Installing Shift Knob Bolt
Courtesy of FORD MOTOR CO.
Slide the lower shift knob bezel up and snap it into place.

Fig 5: Sliding Lower Shift Knob Bezel Up
Courtesy of FORD MOTOR CO.
Install the upper console panel.

Fig 6: Installing Upper Console Panel
Courtesy of FORD MOTOR CO.
Install the PRNDL trim ring.

Fig 7: Installing PRNDL Trim Ring

Courtesy of FORD MOTOR CO.
